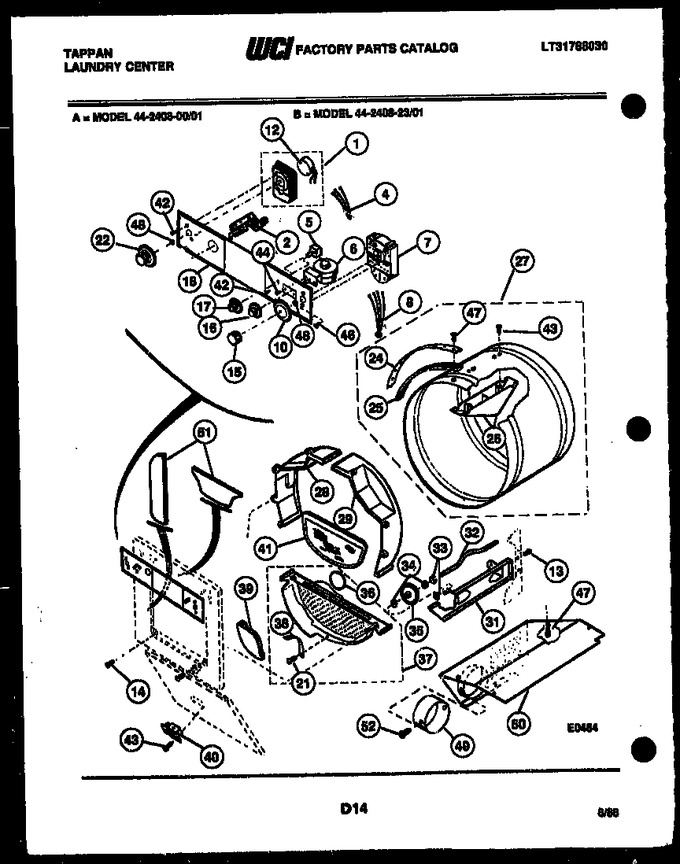

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017936 | Timer & Motor-dryer |
|
- | |||||
| 2 | 3017893 | Switch-start & Door |
|
- | |||||
| 4 | 3017937 | Harness-dryer |
|
- | |||||
| 5 | 3017895 | Switch-water Temp |
|
- | |||||
| 6 | 3017896 | Switch-pressure |
|
- | |||||
| 7 | 3017897 | Timer & Motor-washer |
|
- | |||||
| 8 | 3016452 | Upper Harness - Washer Motor |
|
- | |||||
| 10 | 3017950 | Dial-indicator |
|
- | |||||
| 12 | 3161067 | Motor-timer-dryer |
|
- | |||||
| 13 | 3161242 | Screw (4) |
|
- | |||||
| 14 | 3161187 | Screw |
|
- | |||||
| 15 | 3017951 | Knob-washer Timer |
|
- | |||||
| 16 | 3161069 | Knob-pressure Switch |
|
- | |||||
| 17 | 3161070 | Knob-water Temp Switch |
|
- | |||||
| 18 | 3017952 | Trim Plate |
|
- | |||||
| 21 | 3161254 | Screw |
|
- | |||||
| 22 | 3161072 | Knob & Dial Assy |
|
- | |||||
| 24 | 3161073 | Band-front & Rear (2) |
|
- | |||||
| 25 | 3161074 | Drum Seal-front |
|
- | |||||
| 26 | 3161076 | Baffle-drum (3) |
|
- | |||||
| 27 | 3004200 | Drum |
|
- | |||||
| 28 | 3161078 | Rim-drum-lh |
|
- | |||||
| 29 | 3161079 | Rim-drum-rh |
|
- | |||||
| 31 | 3017901 | Bracket Roller R.h. |
|
- | |||||
| 32 | 3161082 | Shaft-roller (2) |
|
- | |||||
| 33 | 3161255 | Snap Ring (4) |
|
$ 4.78 | |||||
| 34 | 3161256 | Washer-shaft (4) |
|
- | |||||
| 35 | 3161257 | Roller & Wheel Assy. (4) |
|
- | |||||
| 36 | 3161083 | Seal-lint Housing |
|
- | |||||
| 37 | 3161084 | Housing Assy-lint |
|
- | |||||
| 38 | 3161258 | Clip-lint Screen |
|
- | |||||
| 39 | 3161085 | Insulation |
|
- | |||||
| 40 | 3016458 | Magnet Assy. (almond) |
|
- | |||||
| 41 | 3161088 | Screen-lint |
|
- | |||||
| 42 | 3161259 | Screw Temp Sw/panel |
|
$ 6.83 | |||||
| 43 | 3161260 | Screw-magn/pnl (2) |
|
- | |||||
| 43 | 3161254 | Screw-baffle/drum (6) |
|
- | |||||
| 44 | 3017891 | Screw (2) |
|
- | |||||
| 46 | 3161188 | Screw (2) |
|
- | |||||
| 47 | 3161233 | Screw (9) |
|
- | |||||
| 48 | 8015493 | Spacer-timer Washer |
|
- | |||||
| 49 | 3016459 | Extension - Exhaust Pipe |
|
- | |||||
| 50 | 3016460 | Shield |
|
- | |||||
| 51 | 3161090 | Insulation Front Panel Top |
|
- | |||||
| 52 | 3017891 | Screw |
|
- | |||||
| *15838 | 3161094 | Resistor-sel. Sw. (3.9k Ohms) |
|
- | |||||
| *15838 | 3161093 | Resistor-dryer Timer (4.4k Ohms) |
|
- | |||||
| *15838 | 3161092 | Shield-dryer & Washer Timers |
|
- | |||||
| 25A | 3161075 | Drum Seal-rear |
|
- | |||||
| 31A | 3017902 | Bracket Roller L.h. |
|
- | |||||
| 42A | 3161188 | Screw-dryer Tmr/pnl (2) |
|
- | |||||
| 51A | 3161091 | Insul-frnt Pnl-lh |
|
- |
