SELECT A DIAGRAM

02 - Cabinet Parts And Heater


03 - Console, Control And Drum


04 - Dryer Motor, Blower And Belt


05 - Tubs, Water Valve And Lid Switch


06 - Washer Drive System And Pump


07 - Transmission Parts

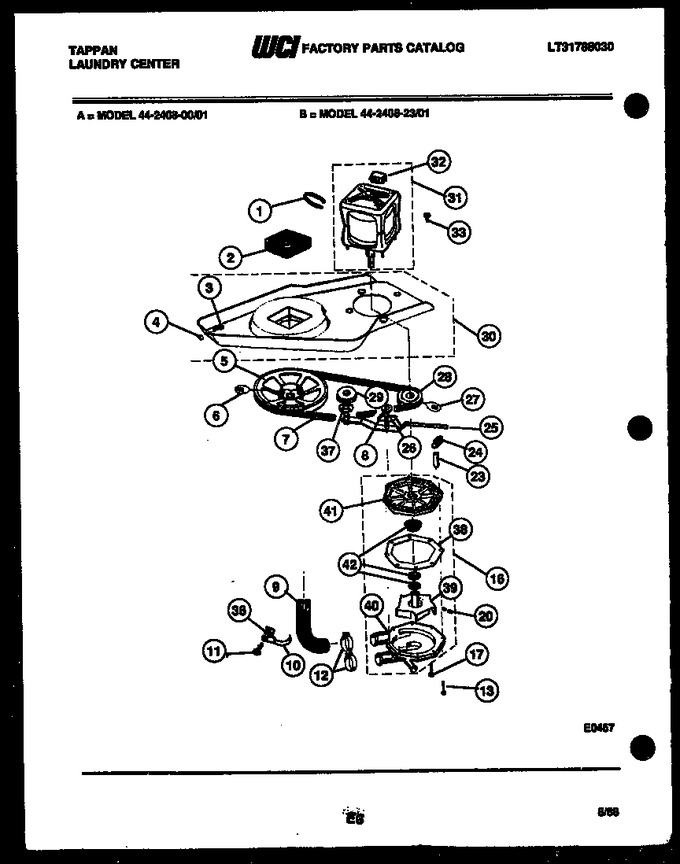

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3161300		Tie		Appelez-nous	-
2	3161150		Cushion (rubber)		Appelez-nous	-
3	3161211		Bolt (3)		Appelez-nous	-
4	3161212		Locknut (3)		Appelez-nous	-
5	3161151		Pulley-transmission		Appelez-nous	-
6	3161456		Set Screw		Appelez-nous	-
7	3161152		Belt-drive		Appelez-nous	-
8	3161463		Bushing (2)		Appelez-nous	-
9	3161153		Hose-pump/drain Coupling		Appelez-nous	-
10	3161301		Clamp (2)		Appelez-nous	-
11	3161215		Screw (2)		Appelez-nous	-
12	3161302		Clamp (2)		Appelez-nous	-
13	3161216		Screw (4)		Appelez-nous	-
16	3161488		Pump-complete		Appelez-nous	-
17	3161184		Screw (4)		Appelez-nous	-
20	3161217		Screw		Appelez-nous	-
23	3161303		Spacer (4)		Appelez-nous	-
24	3161156		Spring-tension		Appelez-nous	-
25	3937001		Idler Arm Assy.		Appelez-nous	-
27	3161304		Set Screw		Appelez-nous	-
28	3161158		Pulley-motor		Appelez-nous	-
29	3161159		V-pulley-idler Arm		Appelez-nous	-
30	3161218		Support Plate & Bolts		Appelez-nous	-
31	3161160		Motor & Switch		Appelez-nous	-
32	3161161		Switch-motor (ge)		Appelez-nous	-
33	3161279		Screw-ground		Appelez-nous	-
36	3161305		Speednut (2)		Appelez-nous	-
37	3161306		Spring Washer		Appelez-nous	-
38	3161220		Gasket		Appelez-nous	-
39	3161162		Impeller Kit (consists Of Seal Assembly, Gasket, Impelle		Appelez-nous	-
40	3161489		Housing-pump		Appelez-nous	-
41	3161164		Cover-pump		Appelez-nous	-
42	3161165		Seal Kit (consists Of Seal Assembly & Gasket.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
