SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Gas Controls


05 - Oven/base


06 - Supplimental Information


07 - Top Assembly


08 - Wiring Information

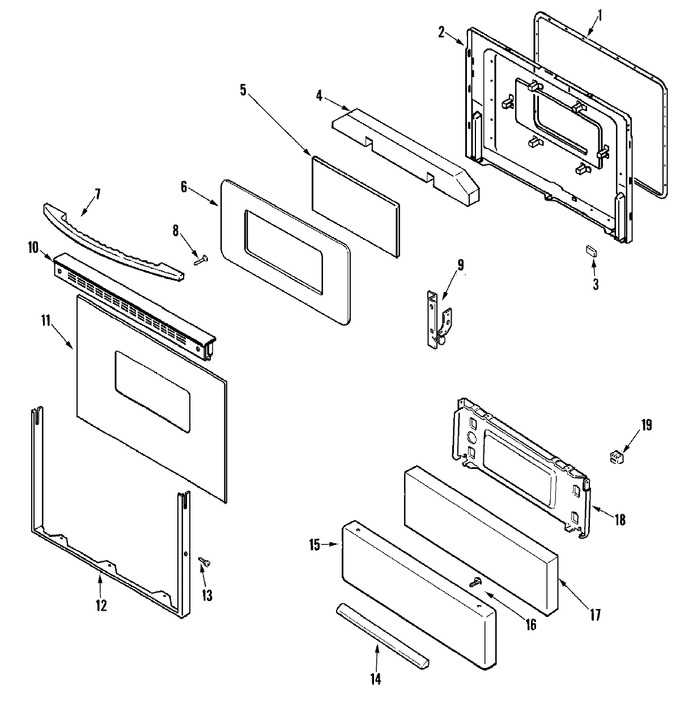

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7212P043-60		Seal, Door   (Replaces: 7212P043-60)	10		Immediately	$ 56.83
2	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)	10			$ 9.89
2	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
2	74005097		Lining, Door	10	Appelez-nous	-
3	WP74006515		Screw W/washer (handle Mtg)   (Replaces: 74006635)	10			$ 7.29
3	WP74005546		Spacer, Rubber   (Replaces: 74005546)	10			$ 9.48
4	74002458		Insulation, Door	10	Appelez-nous	-
5	74002459		Glass, Door (inner)	10	Appelez-nous	-
6	7101P209-60		Screw	10	Appelez-nous	-
6	74002461		Baffle, Door	10	Appelez-nous	-
7	74006286		Handle, Door (blk)	10	Appelez-nous	-
8	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
9	74002398		Hinge, Drawer	10	Appelez-nous	-
9	74007560		Hinge, Drawer	13			$ 61.30
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
10	74003889		Trim, Door Top (blk)	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	74006287		Glass, Outer Door (blk)	10	Appelez-nous	-
12	7706P309-60		Frame, Door (blk)	10	Appelez-nous	-
12	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
13	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
14	74001820		Handle (short-chr)	10	Appelez-nous	-
15	74001729		Panel, Drawer (wht)	10	Appelez-nous	-
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	74002481		Screw	10			$ 5.82
17	74001814		Insulation, Broiler Drawer	10	Appelez-nous	-
18	74007553		Lining, Drawer	13	Appelez-nous	-
18	74002397		Lining, Drawer	10	Appelez-nous	-
19	74001663		Glide	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
