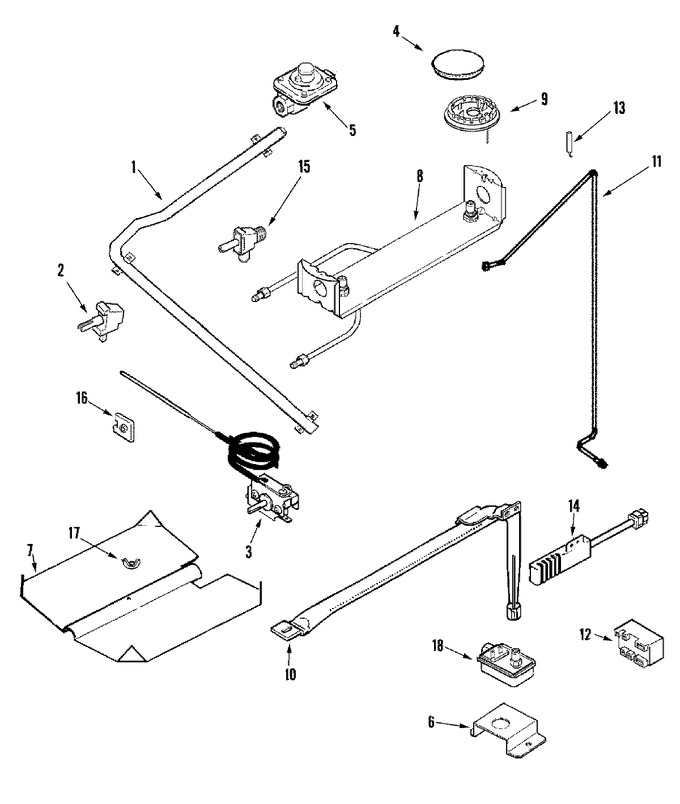

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74003795		Pipe, Manifold	10	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
2	74002433		Screw, Valve	10	Appelez-nous	-
2	74002532		Valve, Burner	10	Appelez-nous	-
3	7101P280-60		Screw W/washer (blk)	10	Appelez-nous	-
3	7404P096-60		Thermostat	10	Appelez-nous	-
4	74007534		Cap, Burner (blk-sd)	10	Appelez-nous	-
5	74007524		Regulator, Pressure (l.p.)	10	Appelez-nous	-
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	74005051		Bracket, Oven Valve	10	Appelez-nous	-
7	74002393		Baffle, Oven Burner	10	Appelez-nous	-
8	74007533		Support, Orifice Top Burner	10	Appelez-nous	-
9	7101P343-60		Screw	10	Appelez-nous	-
9	74007528		Base, Burner (sd)	10			$ 37.92
9	74007527		Head, Burner (sd)	10	Appelez-nous	-
10	74002434		Burner, Oven	10			$ 94.06
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	74006410		Tubing, Oven Burner W/nut	10	Appelez-nous	-
12	74004285		Module, Spark	10	Appelez-nous	-
13	74007529		Tubing, Burner (rr-9k)	10	Appelez-nous	-
13	74007532		Tubing, Burner (lf-10k)	10	Appelez-nous	-
13	74007531		Tubing, Burner (lr-9k)	10	Appelez-nous	-
13	74007530		Tubing, Burner (rf-10k)	10	Appelez-nous	-
14	WP4159193		Screw (10-24x5/16-ni)   (Replaces: 7101P282-60)	10			$ 4.29
14	74007498		Igniter, Oven	10		Immediately	$ 78.40
15	71003231		Screw, Valve	10	Appelez-nous	-
15	74006283		Valve, Shut Off	10	Appelez-nous	-
16	74007095		Switch, Igniter	10			$ 57.47
17	7103P030-60		Nut, Wing	10			$ 6.37
18	74006353		Valve, Oven (bu)	10	Appelez-nous	-
19	WP8523793		Ignitor, Sourdillion Assy.   (Replaces: 74007473)	10		Immediately	$ 36.15
