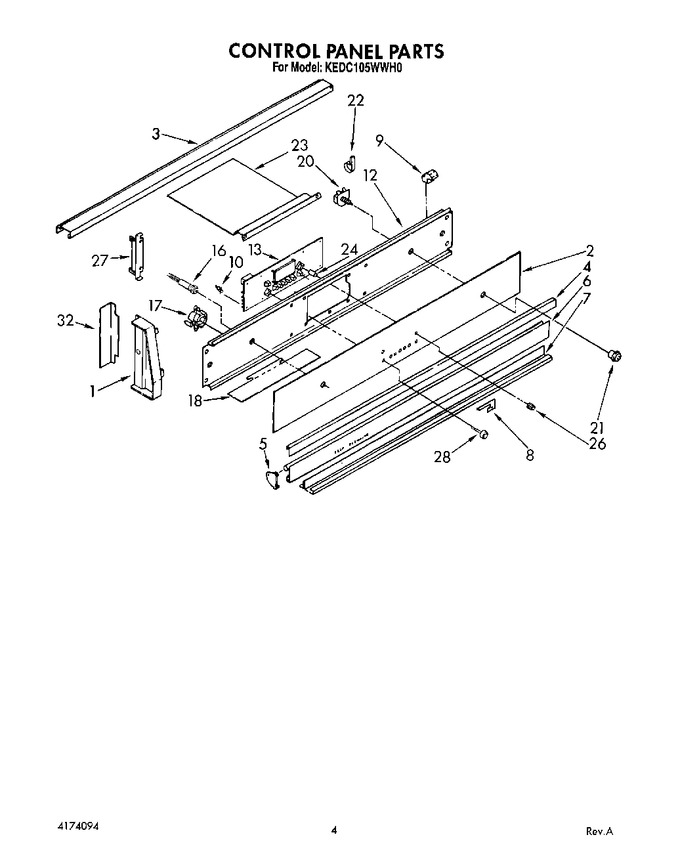

02 - Oven
03 - Control Panel
04 - Oven Door
05 - Wiring Harness, Lit/optional
06 - Cooktop
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3150733 | End Cap, L.h. (almond) |
|
- | |||||
| 1 | 3148905 | End Cap Left Hand (washer (2)) |
|
- | |||||
| 1 | 3150728 | End Cap Left Hand (black) |
|
- | |||||
| 1 | 3150730 | End Cap Left Hand (white) |
|
- | |||||
| 1 | 3150732 | End Cap, L.h. (almond) |
|
- | |||||
| 1 | 3150729 | End Cap Left Hand (black) |
|
- | |||||
| 1 | 3150731 | End Cap Left Hand (white) |
|
- | |||||
| 2 | 3181536 | Glass, Control Panel (black) |
|
- | |||||
| 2 | 3181538 | Glass, Control Panel (almond) |
|
- | |||||
| 2 | 3181537 | Glass, Control Panel (white) |
|
- | |||||
| 3 | 314240 | Rail, Top (black) |
|
- | |||||
| 3 | 3148456 | Rail, Top (bright Aluminum) |
|
- | |||||
| 3 | 342043 | Rail, Top (screw (4)) |
|
- | |||||
| 4 | 3149420 | Trim, Center (black) |
|
- | |||||
| 4 | 3148453 | Trim, Center (bright Aluminum) |
|
- | |||||
| 5 | 3148698 | Trim, Vent Door Left Hand (black) |
|
- | |||||
| 5 | 3148472 | Trim, Vent Door Left Hand (rosemont Grey) |
|
- | |||||
| 5 | 3148697 | Trim, Vent Door Left Hand (black) |
|
- | |||||
| 5 | 3148471 | Trim, Vent Door Left Hand (rosemont Grey Right Hand) |
|
- | |||||
| 6 | 314190 | Door, Vent (black) |
|
- | |||||
| 6 | 3149676 | Door, Vent (semi-bright Aluminum) |
|
- | |||||
| 6 | 342043 | Door, Vent (screw (2)) |
|
- | |||||
| 7 | 314184 | Trim, Bottom |
|
- | |||||
| 8 | 98520 | Screw |
|
- | |||||
| 8 | 3149142 | Shield, Air |
|
- | |||||
| 9 | 3149882 | Retainer, Glass (4) |
|
- | |||||
| 10 | 3181558 | Support, Circuit Board |
|
- | |||||
| 12 | 3150535 | Bracket, Control |
|
- | |||||
| 13 | 3150200 | Electronic Range Control |
|
- | |||||
| 16 | 3150241 | Light, Indicator |
|
- | |||||
| 17 | WP965173 | Screw (4) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 17 | 3149649 | Thermostat, Oven |
|
- | |||||
| 17 | WP313808 | Screw (2) (Replaces: 313808) |
|
$ 6.84 | |||||
| 18 | 155023 | Screw (2) |
|
Immediately | $ 7.91 | ||||
| 18 | 3181682 | Shield, Control |
|
- | |||||
| 20 | 312796 | Washer |
|
- | |||||
| 20 | 3148465 | Switch, Oven Light |
|
- | |||||
| 21 | 313030 | Bezel, Switch (black) |
|
- | |||||
| 21 | 3148463 | Bezel, Switch (almond) |
|
- | |||||
| 21 | 3149170 | Bezel, Switch (white) |
|
- | |||||
| 22 | 98520 | Screw |
|
- | |||||
| 22 | 488946 | Clamp, Wire (Replaces: 255564) |
|
$ 18.41 | |||||
| 23 | 3149419 | Shield, Heat |
|
- | |||||
| 23 | 98520 | Screw (2) |
|
- | |||||
| 24 | 3149321 | Shaft, Bit Generator |
|
- | |||||
| 26 | 3181653 | Knob, Bit Generator (almond) |
|
- | |||||
| 26 | 3149176 | Knob, Bit Generator (white) |
|
- | |||||
| 26 | 313523 | Knob, Bit Generator (black) |
|
$ 13.66 | |||||
| 27 | 310720 | Bracket, Control Panel (2) |
|
- | |||||
| 27 | 98520 | Screw (4) |
|
- | |||||
| 28 | 3182923 | Button Assy. (8) (almond) |
|
- | |||||
| 28 | 3149177 | Button Assy. (8) (white) |
|
- | |||||
| 28 | 313958 | Button Assy. (8) (black) |
|
- | |||||
| 32 | 3149900 | Trim, End Cap (black) |
|
- | |||||
| 32 | 3149901 | Trim, End Cap (white) |
|
- | |||||
| 32 | 3149902 | Trim, End Cap (almond) |
|
- |
