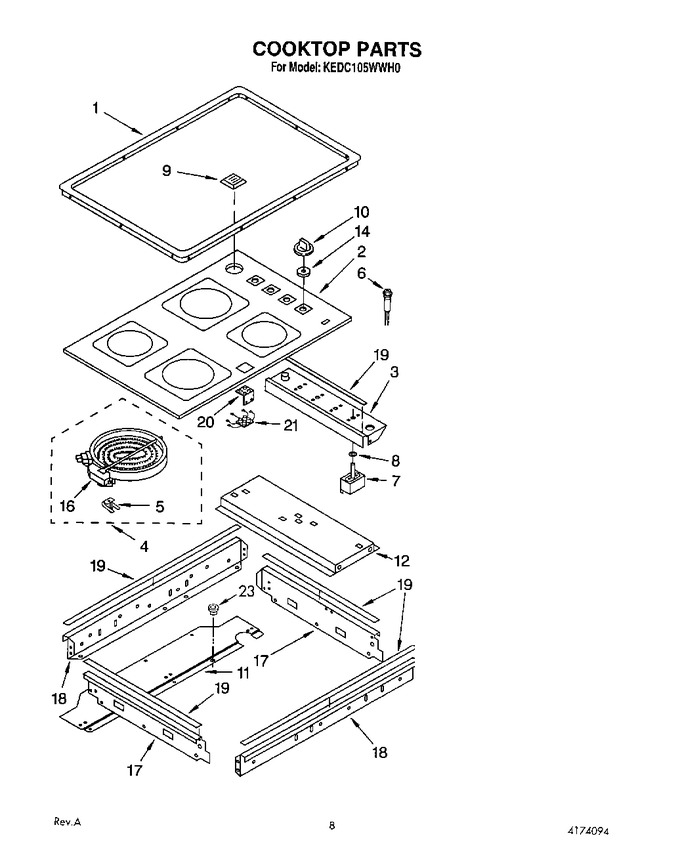

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3150305 | Trim Ring, Cooktop (black) |
|
- | |||||
| 1 | 3150306 | Trim Ring, Cooktop (white) |
|
- | |||||
| 1 | 3150307 | Trim Ring, Cooktop (almond) |
|
- | |||||
| 1 | 4168863 | Trim Ring, Cooktop (screw) |
|
- | |||||
| 2 | 3181661 | Cooktop, Glass (white) |
|
- | |||||
| 2 | 3181660 | Cooktop, Glass (black Or Almond Model) |
|
- | |||||
| 3 | 3150338 | Bracket, Switch Mounting |
|
- | |||||
| 4 | 3148832 | Element, Surface (2400w Left Front) |
|
- | |||||
| 4 | 3148831 | Element, Surface (2100w Right Rear) |
|
- | |||||
| 4 | 3148830 | Element, Surface (1700w Right Front) |
|
- | |||||
| 4 | 3148829 | Element, Surface (1400w Left Rear) |
|
- | |||||
| 5 | 3149191 | Spring Locator (8) |
|
$ 9.45 | |||||
| 5 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 6 | 3149978 | Light, Indicator |
|
- | |||||
| 7 | W10900107 | Switch, Infinite (use W/2100w Right Rear Burner) (Replaces: 3148961) |
|
Immediately | $ 51.87 | ||||
| 7 | 3148949 | Switch, Infinite (use W/1400w Left Rear Burner & W/1700w Right Front Burner) |
|
$ 67.77 | |||||
| 7 | 3148958 | Switch, Infinite (use W/2400w Left Front Burner) |
|
- | |||||
| 7 | WP486579 | Switch, Infinite (screw (8)) (Replaces: 311865) |
|
$ 6.61 | |||||
| 8 | 309839 | Seal, Switch Cover |
|
- | |||||
| 9 | 3147037 | Cover, Vent |
|
- | |||||
| 10 | 3150096 | Knob, Control (4) (white) |
|
- | |||||
| 10 | 3150097 | Knob, Control (4) (almond) |
|
- | |||||
| 10 | 3150100 | Knob, Control (4) (black) |
|
$ 21.50 | |||||
| 11 | 3147566 | Cover, Top Rear |
|
- | |||||
| 11 | WP488729 | Screw (3) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 12 | 3150316 | Support, Element |
|
- | |||||
| 12 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 14 | 3182435 | Seal, Switch (4) |
|
- | |||||
| 16 | 3149121 | Switch, Limit (use W/3148829 Element) |
|
- | |||||
| 16 | 3149122 | Switch, Limit (use W/3148830 Element) |
|
- | |||||
| 16 | 3149124 | Switch, Limit (use W/3148832 Element) |
|
- | |||||
| 16 | 3149128 | Switch, Limit (use W/3148831 Element) |
|
- | |||||
| 17 | 3150324 | Rail, Side (left Hand) |
|
- | |||||
| 17 | 3150323 | Rail, Side (right Hand) |
|
- | |||||
| 18 | 3181646 | Clip, ``u Nut`` |
|
- | |||||
| 18 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 18 | 3183380 | Rail, Front & Rear |
|
- | |||||
| 19 | 3181645 | Seal, Silicone (small (3)) |
|
- | |||||
| 19 | 3181644 | Seal, Silicone (large (2)) |
|
- | |||||
| 20 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 20 | 3150321 | Bracket, Hot Surface Indicator |
|
- | |||||
| 21 | 3150304 | Lamp, Hot Surface Indicator |
|
- | |||||
| 23 | 258109 | Bushing |
|
- |
