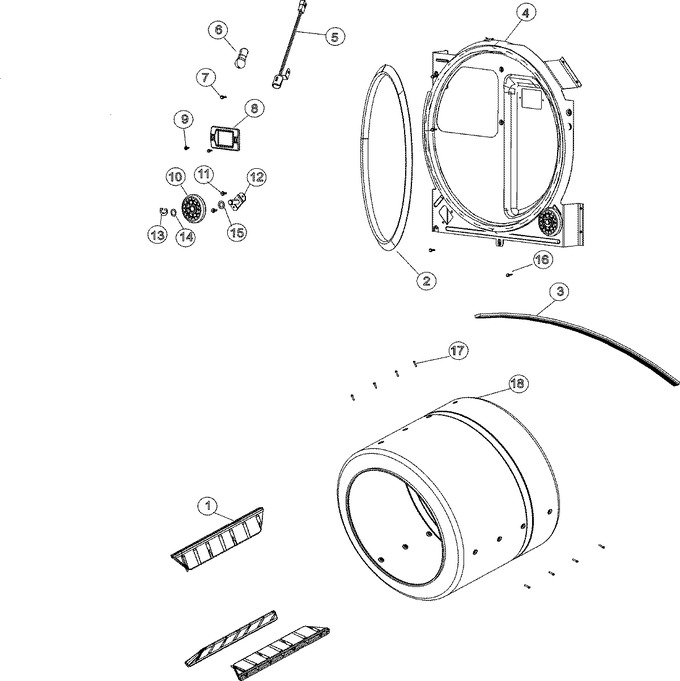

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1249		Baffle, White	10	Appelez-nous	-
2	WP31001747		Seal Assembly (rear)   (Replaces: 31001548)	10			$ 30.87
3	341241		Belt, Cylinder   (Replaces: 31531589)	10		Immediately	$ 16.34
4	31001581		Bulkhead With Seal	10	Appelez-nous	-
5	31001579		Receptacle Asm, Clyinder Light	10	Appelez-nous	-
6	31001575		Bulb, Cylinder Light	10			$ 5.83
7	WP12990527		Screw, Sems   (Replaces: 25-3457)	10		Immediately	$ 7.15
8	31001585		Lens, Cylinder Light	10	Appelez-nous	-
9	31001580		Screw, 6-32 Hex Washer Head	10	Appelez-nous	-
10	31001096		Roller (rear)	10			$ 50.12
11	WP3351614		Screw   (Replaces: 25-7101)	10		Immediately	$ 6.26
12	WP53-0197		Support Assy.-cylinder Rear   (Replaces: 53-0197)	10			$ 81.21
13	WP25-7854		Ring, Retaining   (Replaces: 25-7854)	10			$ 10.68
14	25-7814		Washer	10			$ 5.33
15	31001583		Spacer, Roller	10			$ 5.27
16	25-7819		Screw No.8-18x1/2 Pan Hd	10	Appelez-nous	-
17	WP3196164		Screw   (Replaces: 25-7759)	10		Immediately	$ 7.82
18	53-1250		Cylinder (w/baffle)	10	Appelez-nous	-
