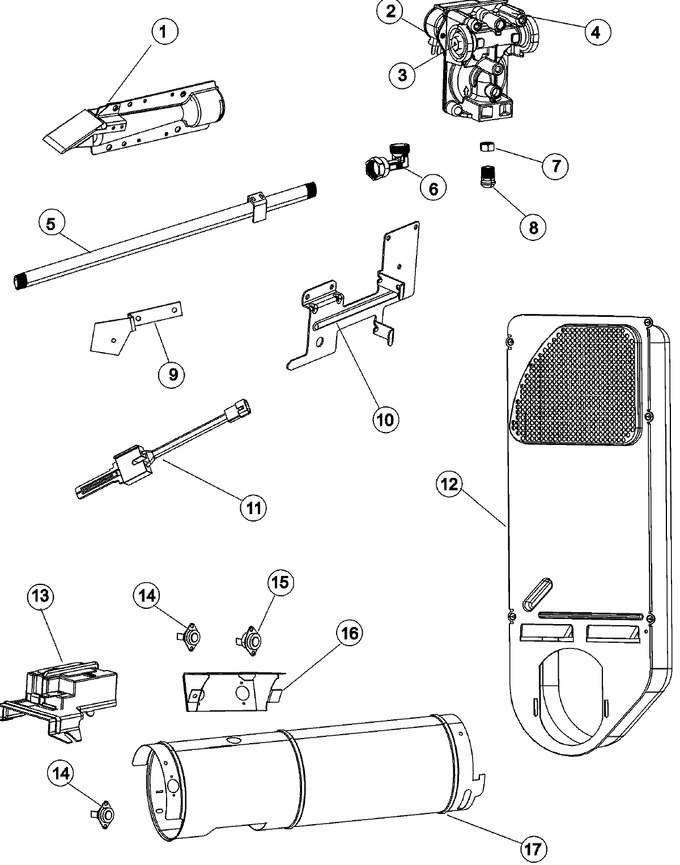

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31001708		Burner & Spreader Assm	11	Appelez-nous	-
2	279834		Coil Kit, Gas Dryer Valve (2)   (Replaces: 12001349)	11		Immediately	$ 29.57
3	63-3570		Burner Orifice	11			$ 25.76
4	31001485		Valve, Gas (with Orifice)	11			$ 222.83
4	WP90767		Screw   (Replaces: 25-3092)	11		Immediately	$ 7.04
5	31001367		Main Gas Line Assy.	11	Appelez-nous	-
6	3406051		Elbow   (Replaces: 31001366)	11			$ 90.15
7	60-6846		Union Nut	11	Appelez-nous	-
8	31001368		Tail Piece	11	Appelez-nous	-
9	53-0686		Bracket	11	Appelez-nous	-
10	53-0140		Mtg Bracket	11	Appelez-nous	-
11	WP31001556		Igniter   (Replaces: 31001556)	11		Immediately	$ 79.78
12	31001724		Inlet Air Duct Assembly	11	Appelez-nous	-
13	WP338906		Sensor   (Replaces: 63-5013)	11		Immediately	$ 46.72
14	WP53-1182		Fuse, Thermal   (Replaces: 53-1182)	11			$ 55.53
15	LA-1053		Thermostat, Hi-limit   (Replaces: 53-1096)	11		Immediately	$ 51.07
16	31001725		Bracket, Thermostat Mtg	11	Appelez-nous	-
17	31001726		Housing, Heater	11	Appelez-nous	-
17	53-2363		Support, Heater Housing	11	Appelez-nous	-
18	WP63-6766		Conversion Kit (nat-lp)   (Replaces: 63-6766)	11			$ 47.57
18	12001031		Conversion Kit (lp-nat)	11			$ 32.04
