SELECT A DIAGRAM

01 - Oven


02 - Control Panel


03 - Door


04 - Cooktop, Lit/optional


05 - Wiring Harness


06 - Utility Drawer And Rail

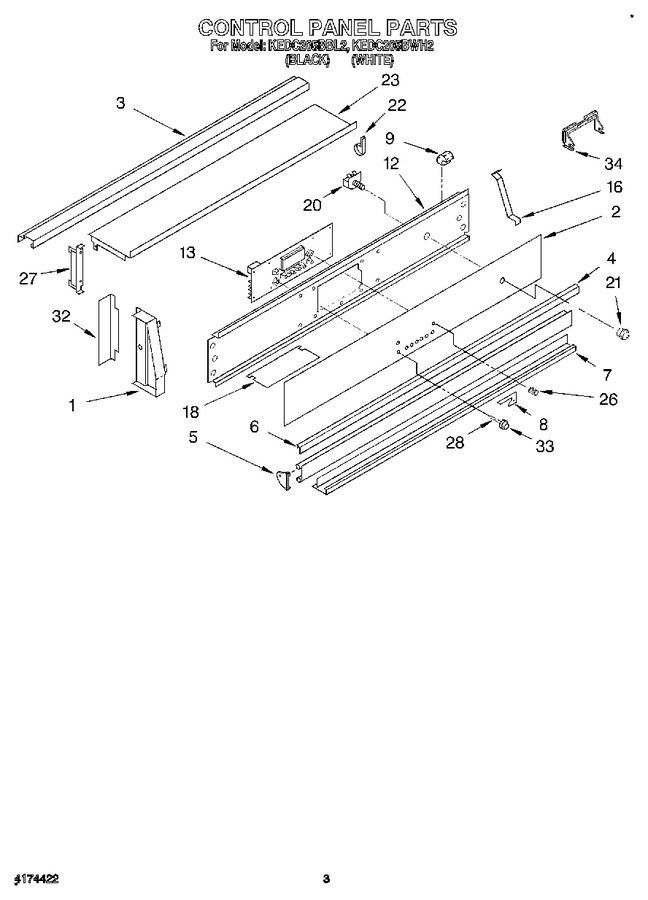

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148905		End Cap (washer (2))		Appelez-nous	-
1	3150728		End Cap (black, Lh)		Appelez-nous	-
1	3150730		End Cap (white, Lh)		Appelez-nous	-
1	3150729		End Cap (black, Rh)		Appelez-nous	-
1	3150731		End Cap (white, Rh)		Appelez-nous	-
2	3183252		Glass, Control Panel (white)		Appelez-nous	-
2	3183251		Glass, Control Panel (black)		Appelez-nous	-
3	3183329		Rail, Top (black)		Appelez-nous	-
3	342043		Rail, Top (screw (4))		Appelez-nous	-
3	3183341		Rail, Top (bright Aluminum)		Appelez-nous	-
4	3183367		Trim, Center (bright Aluminum)		Appelez-nous	-
4	3183366		Trim, Center (black)		Appelez-nous	-
5	3148472		Trim, Vent (brite Aluminum, Rh)		Appelez-nous	-
5	3148471		Trim, Vent (brite Aluminum, Lh)		Appelez-nous	-
5	3148697		Trim, Vent (black, Lh)		Appelez-nous	-
5	3148698		Trim, Vent (black, Rh)		Appelez-nous	-
6	342043		Door, Vent (screw (2))		Appelez-nous	-
6	314190		Door, Vent (black)		Appelez-nous	-
6	3149676		Door, Vent (semi-bright Aluminum)		Appelez-nous	-
7	98520		Screw (4)		Appelez-nous	-
7	314184		Trim, Bottom		Appelez-nous	-
8	3149142		Shield, Air		Appelez-nous	-
8	98520		Screw		Appelez-nous	-
9	3149882		Retainer, Glass (4)		Appelez-nous	-
12	3148647		Bracket, Control		Appelez-nous	-
13	3149459		Electronic Range Control		Appelez-nous	-
13	313806		Screw		Appelez-nous	-
16	3148102		Bracket, Control		Appelez-nous	-
18	3150352		Shield, Control		Appelez-nous	-
20	312581		Black Model		Appelez-nous	-
20	312796		Washer		Appelez-nous	-
20	WP965173		Screw,   (Replaces: 246132)			Immediately	$ 9.65
20	3148465		White Model		Appelez-nous	-
21	313030		Bezel, Switch (black)		Appelez-nous	-
21	3149170		Bezel, Switch (white)		Appelez-nous	-
22	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
22	98520		Screw		Appelez-nous	-
23	3188534		Shield, Heat		Appelez-nous	-
23	98520		Screw (2)		Appelez-nous	-
26	3149784		Knob, Bit Generator (black)		Appelez-nous	-
26	3149785		Knob, Bit Generator (white)		Appelez-nous	-
27	310720		Bracket, Control Panel (2)		Appelez-nous	-
27	98520		Screw (4)		Appelez-nous	-
28	3183242		Stem, Button (8)		Appelez-nous	-
32	3149900		Trim, End Cap (black)		Appelez-nous	-
32	3149901		Trim, End Cap (white)		Appelez-nous	-
33	3183243		Button, Flush (8) (black)		Appelez-nous	-
33	3183244		Button, Flush (8) (white)		Appelez-nous	-
34	3183368		Grommet		Appelez-nous	-
