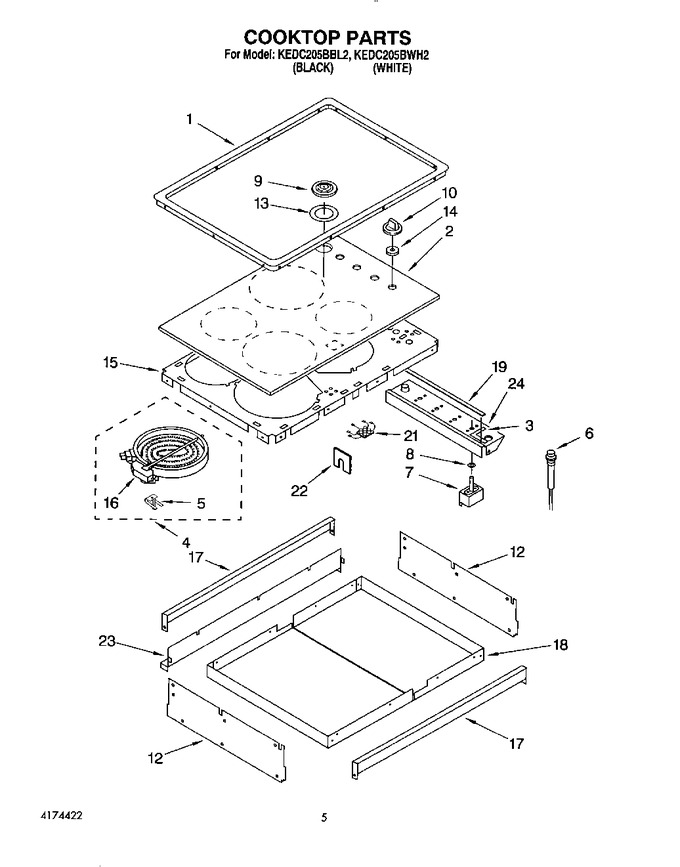

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3187745 | Trim Ring, Cooktop (white) |
|
- | |||||
| 1 | 3187744 | Trim Ring, Cooktop (black) |
|
- | |||||
| 2 | 3185580 | Cooktop, Glass (black) |
|
- | |||||
| 2 | 3185581 | Cooktop, Glass (white) |
|
- | |||||
| 3 | 3187584 | Bracket, Switch Mounting |
|
- | |||||
| 3 | 3185617 | Seal, Foam (2) |
|
- | |||||
| 4 | 3184952 | Element, Surface (1400w Left Rear) |
|
- | |||||
| 4 | 3184960 | Element, Surface (2400w Left Front) |
|
- | |||||
| 4 | 3184957 | Element, Surface (2100w Right Rear) |
|
- | |||||
| 4 | 3184954 | Element, Surface (1700w Right Front) |
|
- | |||||
| 5 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 5 | 3187707 | Spring Locator (8) |
|
- | |||||
| 6 | 3187750 | Light, Indicator |
|
- | |||||
| 7 | 3148958 | Switch, Infinite (use W/2400w Left Front Burner) |
|
- | |||||
| 7 | 3148949 | Switch, Infinite (use W/1400w Left Rear Burner & W/1700w Right Front Burner) |
|
$ 67.77 | |||||
| 7 | W10900107 | Switch, Infinite (use W/2100w Right Rear Burner) (Replaces: 3148961) |
|
Immediately | $ 51.87 | ||||
| 8 | 309839 | Seal, Switch Cover |
|
- | |||||
| 9 | 3182496 | Cover, Vent (black) |
|
- | |||||
| 9 | 3182497 | Cover, Vent (white) |
|
- | |||||
| 10 | 3150100 | Knob, Control (4) (black) |
|
$ 21.50 | |||||
| 10 | 3150096 | Knob, Control (4) (white) |
|
- | |||||
| 12 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 12 | 3188527 | Plate, Mounting |
|
- | |||||
| 13 | 3187523 | Seal, Vent Tube |
|
- | |||||
| 14 | 3182435 | Seal, Switch (4) |
|
- | |||||
| 15 | 3188432 | Backer, Plate |
|
- | |||||
| 16 | 3187535 | Switch, Limit (use W/3184960 Element) |
|
- | |||||
| 16 | 3187528 | Switch, Limit (use W/3184952 Element) |
|
- | |||||
| 16 | 3187529 | Switch, Limit (use W/3184954 Element) |
|
- | |||||
| 16 | 3187532 | Switch, Limit (use W/3184957 Element) |
|
- | |||||
| 17 | 4168863 | Screw |
|
- | |||||
| 17 | 3188526 | Bracket, Support |
|
- | |||||
| 18 | 3187753 | Sheild, Heat Rear |
|
- | |||||
| 19 | 3185589 | Seal, Silicone (small (3)) |
|
- | |||||
| 19 | 3185590 | Seal, Silicone (large (2)) |
|
- | |||||
| 21 | 3150304 | Lamp, Hot Surface Indicator |
|
- | |||||
| 21 | 4168863 | Screw |
|
- | |||||
| 22 | 3187754 | Grommet, Wire Way |
|
- | |||||
| 23 | 3188528 | Cover, Rear |
|
- | |||||
| 24 | 3185617 | Seal, Cooktop |
|
- | |||||
| 3179589 | Wire, Tie |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| LIT3188263 | Use & Care Guide |
|
- | ||||||
| LIT3184873 | Installation Instructions |
|
- | ||||||
| LIT3183603 | Tech Sheet |
|
- | ||||||
| 3185260 | Mounting Hardware |
|
- | ||||||
| CERAMABRYTE | Cleaner, Glass (Replaces: 3184477) |
|
Immediately | $ 9.95 | |||||
| 261582 | Grease |
|
- | ||||||
| 8212471 | Touch-up (Replaces: 242756) |
|
Immediately | $ 74.76 | |||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- |
