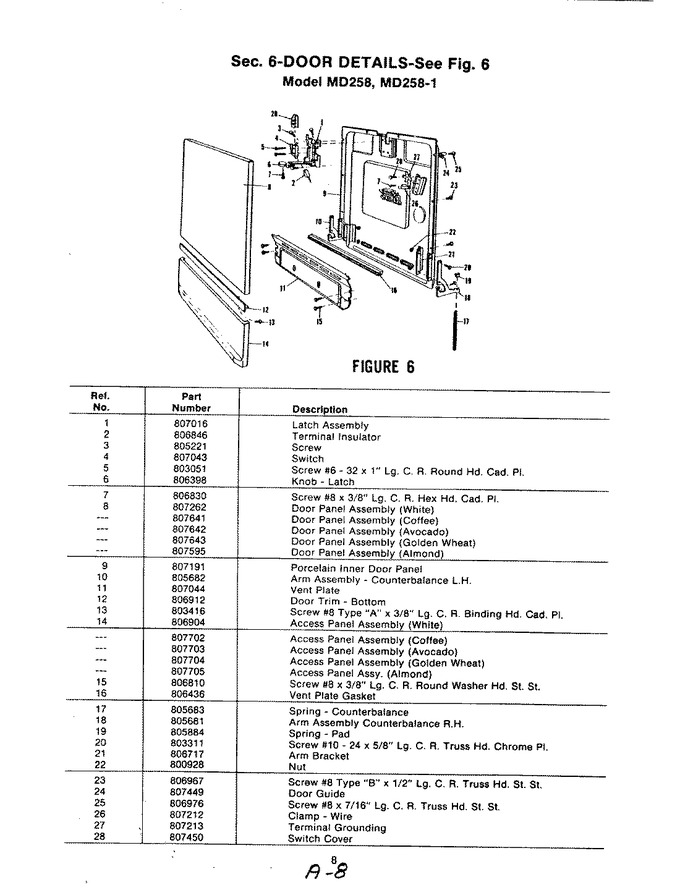

03 - Door Details (md258, Md258-1)


04 - Frame Assembly (md258, Md258-1)


05 - Motor, Heater & Spray Arm


06 - Rack (ud258-1, Md258-1)


07 - Tub (md258-1)


08 - Wood Top


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807016		Latch Asm		Appelez-nous	-
2	806846		Insulator		Appelez-nous	-
3	WP90767		Screw   (Replaces: 805221)			Immediately	$ 7.04
4	807043		Switch		Appelez-nous	-
5	803051		Screw		Appelez-nous	-
6	806398		Latch Knob		Appelez-nous	-
7	806830		Screw		Appelez-nous	-
8	807642		Door Panel		Appelez-nous	-
8	807641		Door Panel		Appelez-nous	-
8	807262		Outer Panel		Appelez-nous	-
8	807595		Door Panel		Appelez-nous	-
8	807643		Door Panel		Appelez-nous	-
9	807191		Inner Panel		Appelez-nous	-
10	805682		Lh Arm		Appelez-nous	-
11	5300809243		Vent Plate   (Replaces: 807044)				$ 20.25
12	806912		Btm Door Trim		Appelez-nous	-
13	W11233072		Screw   (Replaces: 803416)			Immediately	$ 12.62
14	806904		Access Panel		Appelez-nous	-
14	807703		Access Panel		Appelez-nous	-
14	807704		Access Panel		Appelez-nous	-
14	807705		Access Panel		Appelez-nous	-
14	807702		Access Panel		Appelez-nous	-
15	806810		Screw		Appelez-nous	-
16	806436		Vent Gasket		Appelez-nous	-
17	805683		Door Spring		Appelez-nous	-
18	805681		Rh Arm		Appelez-nous	-
19	805884		Spring Pad		Appelez-nous	-
20	803311		Screw		Appelez-nous	-
21	COMM PART		Arm Bracket   (Replaces: 806717)		Appelez-nous	-
22	800928		Nut		Appelez-nous	-
23	806967		Screw		Appelez-nous	-
24	807449		Door Guide		Appelez-nous	-
25	806976		Screw		Appelez-nous	-
26	807212		Clamp		Appelez-nous	-
27	807213		Ground Terminal		Appelez-nous	-
28	807450		Switch Cover		Appelez-nous	-
