SELECT A DIAGRAM

Diagram for 01 - Control Panel
01 - Control Panel

Diagram for 02 - Detergent Cup
02 - Detergent Cup

Diagram for 03 - Door Details (md258, Md258-1)
03 - Door Details (md258, Md258-1)

Diagram for 04 - Frame Assembly (md258, Md258-1)
04 - Frame Assembly (md258, Md258-1)

Diagram for 05 - Motor, Heater & Spray Arm
05 - Motor, Heater & Spray Arm

Diagram for 06 - Rack (ud258-1, Md258-1)
06 - Rack (ud258-1, Md258-1)

Diagram for 07 - Tub (md258-1)
07 - Tub (md258-1)

Diagram for 08 - Wood Top
08 - Wood Top


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 805069 Clip Appelez-nous -
2 807036 Screw Appelez-nous -
3 807270 Screw Appelez-nous -
4 807294 Top Appelez-nous -
5 806276 Clip Appelez-nous -
6 807161 Escutcheon Appelez-nous -
7 806381 Hose Covr Hinge Appelez-nous -
8 806382 Screw Appelez-nous -
9 807342 Hose Cover Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

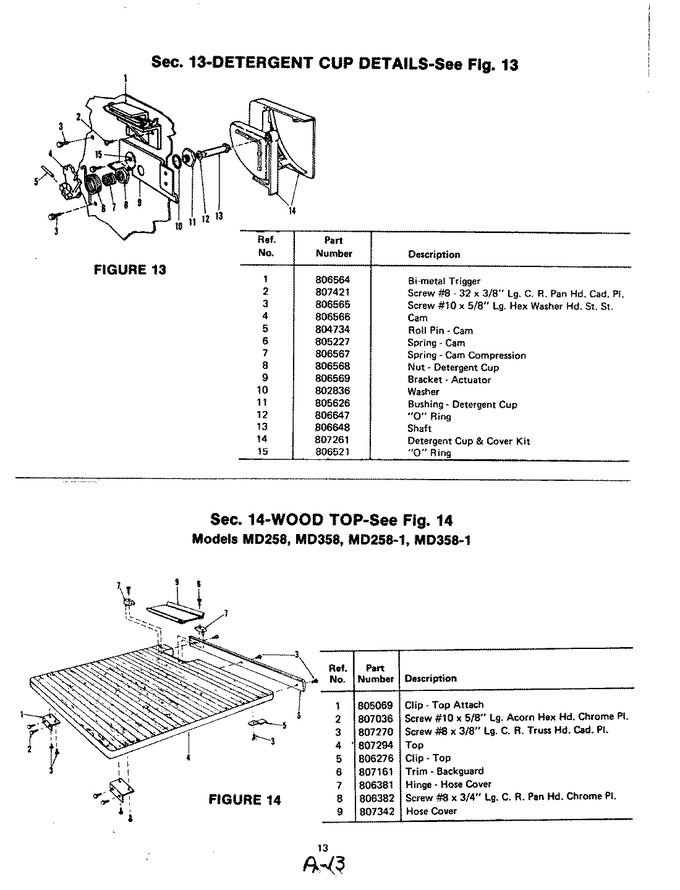

Diagram for MD258-1
