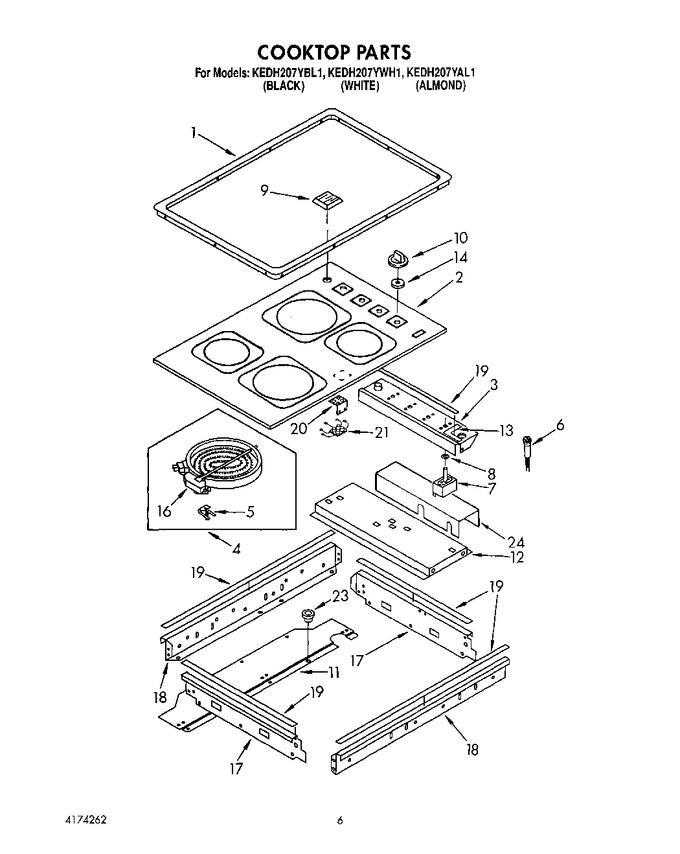

04 - Cooktop, Lit/optional
05 - Internal Convection Oven
06 - Convection Fan
07 - Utility Drawer And Rail
08 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3150305 | Trim Ring, Cooktop (black) |
|
- | |||||
| 1 | 3150306 | Trim Ring, Cooktop (white) |
|
- | |||||
| 1 | 3150307 | Trim Ring, Cooktop (almond) |
|
- | |||||
| 1 | WP308685 | Trim Ring, Cooktop (screw (14)) (Replaces: 3182346) |
|
Immediately | $ 7.08 | ||||
| 2 | 3183182 | Cooktop, Glass (black Or Almond Model) |
|
- | |||||
| 2 | 3183183 | Cooktop, Glass (white) |
|
- | |||||
| 3 | 3150338 | Bracket, Switch Mounting |
|
- | |||||
| 4 | 3183632 | Element, Surface (2400w Left Front) |
|
- | |||||
| 4 | 3183584 | Element, Surface (1400w Left Rear) |
|
- | |||||
| 4 | 3183585 | Element, Surface (1800w Right Front) |
|
- | |||||
| 4 | 3182905 | Element, Surface (2200w Right Rear) |
|
- | |||||
| 5 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 5 | 3149191 | Spring Locator (8) |
|
$ 9.45 | |||||
| 6 | 3149978 | Light, Indicator |
|
- | |||||
| 7 | 3148949 | Switch, Infinite (use W/1400w Left Rear Burner) |
|
$ 67.77 | |||||
| 7 | 3148950 | Switch, Infinite (use W/1800w Right Front Burner) |
|
$ 28.56 | |||||
| 7 | 3148963 | Switch, Infinite (use W/2200w Right Rear Burner) |
|
- | |||||
| 7 | 3148958 | Switch, Infinite (use W/2400w Left Front Burner) |
|
- | |||||
| 8 | 309839 | Seal, Switch Cover |
|
- | |||||
| 9 | 3182497 | Cover, Vent (white) |
|
- | |||||
| 9 | 3182496 | Cover, Vent (black) |
|
- | |||||
| 9 | 3182498 | Cover, Vent (almond) |
|
- | |||||
| 10 | 3150096 | Knob, Control (4) (white) |
|
- | |||||
| 10 | 3150100 | Knob, Control (4) (black) |
|
$ 21.50 | |||||
| 10 | 3150097 | Knob, Control (4) (almond) |
|
- | |||||
| 11 | WP488729 | Screw (3) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 11 | 3147566 | Cover, Top Rear |
|
- | |||||
| 12 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 12 | 3150316 | Support, Element |
|
- | |||||
| 13 | 3184325 | Seal, Cooktop |
|
- | |||||
| 14 | 3182435 | Seal, Switch (4) |
|
- | |||||
| 16 | 3149124 | Switch, Limit (use W/3183632 Element) |
|
- | |||||
| 16 | 3183975 | Switch, Limit (use W/3182905 Element) |
|
- | |||||
| 16 | 3149130 | Switch, Limit (use W/3183585 Element) |
|
- | |||||
| 16 | 3149129 | Switch, Limit (use W/3183584 Element) |
|
- | |||||
| 17 | 3150323 | Rail, Side (right Hand) |
|
- | |||||
| 17 | 3150324 | Rail, Side (left Hand) |
|
- | |||||
| 18 | 3183380 | Rail, Front & Rear |
|
- | |||||
| 18 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 18 | 3181646 | Clip, ``u Nut`` |
|
- | |||||
| 19 | 3185590 | Seal, Silicone (large (2)) |
|
- | |||||
| 19 | 3185589 | Seal, Silicone (small (3)) |
|
- | |||||
| 20 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 20 | 3150321 | Bracket, Hot Surface Indicator |
|
- | |||||
| 21 | 3150304 | Lamp, Hot Surface Indicator |
|
- | |||||
| 23 | 258109 | Bushing |
|
- | |||||
| 24 | 3184261 | Cover, Switch |
|
- | |||||
| LIT3185220 | Use & Care Guide |
|
- | ||||||
| LIT3182755 | Tech Sheet |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| WA906B | Conversion Kit (scraper, Window) (Replaces: 3183488) |
|
Immediately | $ 4.86 | |||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| LIT3183987 | Guide, Auto Set |
|
- | ||||||
| LIT4174262 | Repair Parts List |
|
- | ||||||
| LIT3150693 | Cookbook |
|
- | ||||||
| LIT3184873 | Installation Instructions |
|
- | ||||||
| 814128 | Anti-tip Kit |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 3185260 | Mounting Hardware |
|
- | ||||||
| 3183640 | Conversion Kit (almond) |
|
- | ||||||
| 3183639 | Conversion Kit (white) |
|
- | ||||||
| 3183638 | Conversion Kit (black) |
|
- | ||||||
| CERAMABRYTE | Cleaner, Glass (Replaces: 3184477) |
|
Immediately | $ 9.95 | |||||
| 261582 | Grease |
|
- | ||||||
| 8212471 | Touch-up (Replaces: 242756) |
|
Immediately | $ 74.76 | |||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- |
