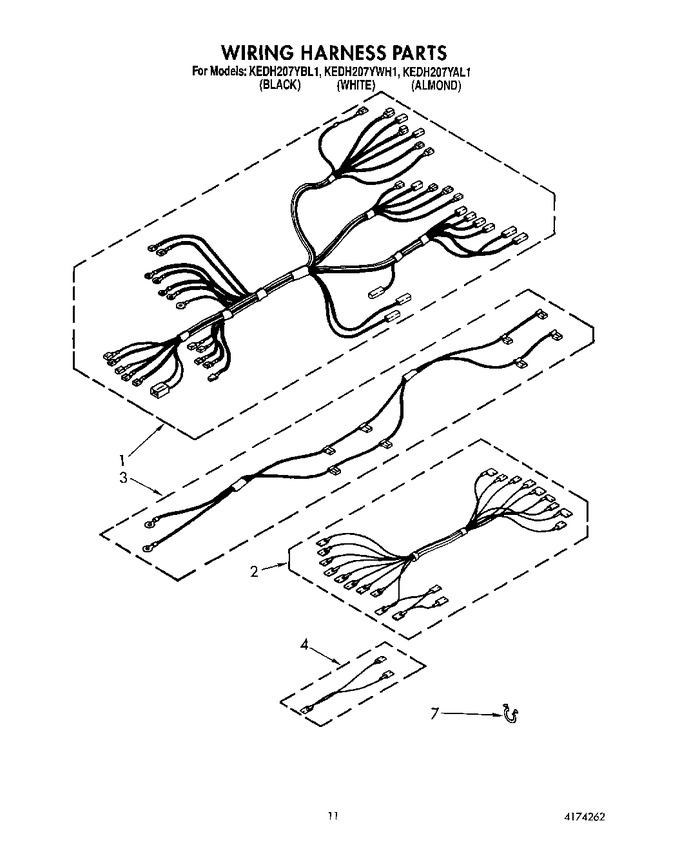

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Oven
02 - Control Panel
03 - Door
04 - Cooktop, Lit/optional
05 - Internal Convection Oven
06 - Convection Fan
07 - Utility Drawer And Rail
08 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3184573 | Harness, Wire (main) |
|
- | |||||
| 2 | 3181503 | Harness, Wire (surface Elements) |
|
- | |||||
| 3 | 3181496 | Harness, Wire (infinite Switch) |
|
- | |||||
| 4 | 3149964 | Jumper, Infinite Switch |
|
- | |||||
| 4 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 7 | 16515 | Clip, Harness (2) (Replaces: 313438) |
|
$ 17.60 | |||||
| 7 | 307748 | Screw (2) |
|
- | |||||
| 7 | 308504 | Screw (2) |
|
- |
