SELECT A DIAGRAM

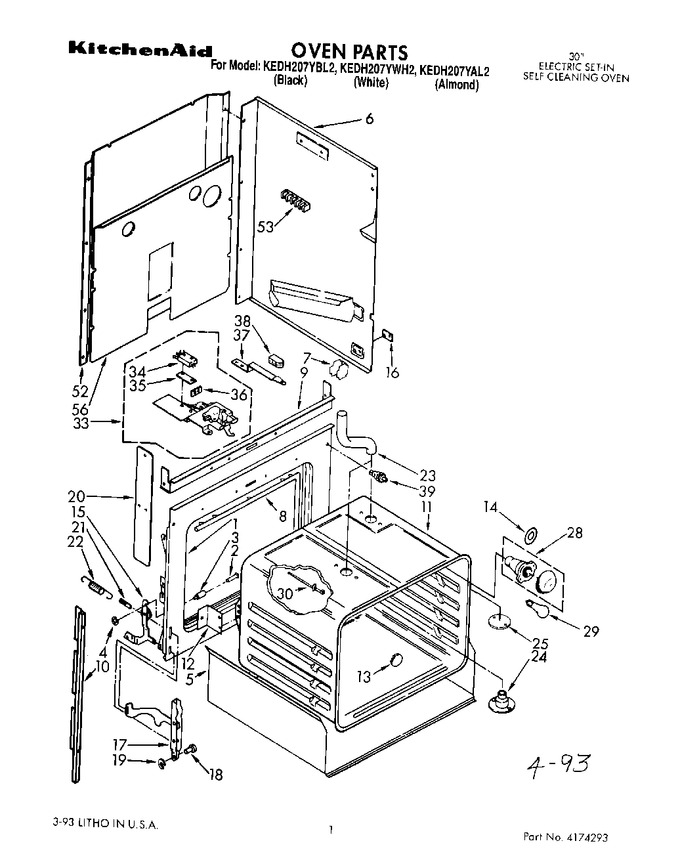

01 - Oven Parts


02 - Control Panel


03 - Door, Literature


04 - Cooktop, Optional


05 - Internal Convection Oven


06 - Convection Fan


07 - Utility Drawer And Rail


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3169220		Frame, Front		Appelez-nous	-
2	307985		Pin, Hinge Ear (2)				$ 29.54
3	309111		Snubber, Door (2)		Appelez-nous	-
4	308306		Pushnut (2)		Appelez-nous	-
5	3185146		Insulation Tray		Appelez-nous	-
6	311006		Side Wrapper (right Side)		Appelez-nous	-
6	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
6	311009		Side Wrapper (left Side)		Appelez-nous	-
7	311774		Support, Side Wrapper (4)		Appelez-nous	-
7	WP488729		Screw (4)   (Replaces: 3148107)			Immediately	$ 7.01
8	3185197		Gasket, Door		Appelez-nous	-
9	3183796		Baffle, Top		Appelez-nous	-
9	WP488729		Screw   (Replaces: 3148107)			Immediately	$ 7.01
10	310685		Side Trim (left Hand)		Appelez-nous	-
10	WP488729		Side Trim (screw (8))   (Replaces: 3148107)			Immediately	$ 7.01
10	310689		Side Trim (right Hand)		Appelez-nous	-
11	311056		Screw (3)		Appelez-nous	-
11	3182031		Oven (30`` Pyro)		Appelez-nous	-
12	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
12	310713		Bracket, Oven		Appelez-nous	-
13	3185086		Button, Plug (2)		Appelez-nous	-
14	WP3184533		Gasket, Light   (Replaces: 3184533)			Immediately	$ 7.73
15	3185662		Hinge, Ear (right Side)		Appelez-nous	-
15	3185663		Hinge, Ear (left Side)		Appelez-nous	-
16	WP308544		Screw (4)   (Replaces: 308544)			Immediately	$ 6.98
16	310659		Plate, Side Panel (2)		Appelez-nous	-
17	3185664		Channel Arm (2)				$ 54.97
18	WP307986		Pin, Hinge (2)   (Replaces: 307986)				$ 11.78
19	307594		Ring, Retainer (2)		Appelez-nous	-
20	3148442		Screw (2)		Appelez-nous	-
20	311256		Baffle, Insulation		Appelez-nous	-
21	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
22	WP308126		Spring, Oven Door (2)   (Replaces: 308126)				$ 38.15
23	3184323		Tube, Vent		Appelez-nous	-
24	310839		Eliminator, Smoke		Appelez-nous	-
24	3179117		Screw (2)		Appelez-nous	-
25	3179117		Screw (2)		Appelez-nous	-
25	310662		Plate, Cover		Appelez-nous	-
28	308043		Screw (2)		Appelez-nous	-
28	W11594027		Oven Light Assy.   (Replaces: 3150505)			Immediately	$ 78.31
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
30	3179117		Screw (2)		Appelez-nous	-
30	3148440		Sensor, Heat		Appelez-nous	-
33	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
33	3183800		Latch Assembly		Appelez-nous	-
33	311056		Screw (2)		Appelez-nous	-
34	98106		Screw (2)		Appelez-nous	-
34	3183784		Safety Switch		Appelez-nous	-
35	309245		Insulator, Switch		Appelez-nous	-
36	313035		Shield, Terminal		Appelez-nous	-
36	309258		Screw (2)		Appelez-nous	-
36	WP488729		Screw (2)   (Replaces: 3148107)			Immediately	$ 7.01
37	308422		Screw (4)		Appelez-nous	-
37	310825		Latch, Handle		Appelez-nous	-
38	3183294		Screw		Appelez-nous	-
38	3184039		Knob, Latch		Appelez-nous	-
39	310345		Switch, Door				$ 94.86
52	311012		Cover, Rear		Appelez-nous	-
52	WP488729		Screw (12)   (Replaces: 3148107)			Immediately	$ 7.01
53	308043		Screw (2)		Appelez-nous	-
53	WP8203546		Block, Terminal   (Replaces: 3184673)			Immediately	$ 27.12
53	WP112432		Nut, (3)   (Replaces: 112432)				$ 7.16
56	3182052		Panel, Back		Appelez-nous	-
56	3185222		Insulation		Appelez-nous	-
56	WP488729		Screw (6)   (Replaces: 3148107)			Immediately	$ 7.01
56	310433		Insulation, Wrap		Appelez-nous	-
56	310435		Insulation, Oven		Appelez-nous	-
56	3149328		Insulation, Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
