SELECT A DIAGRAM

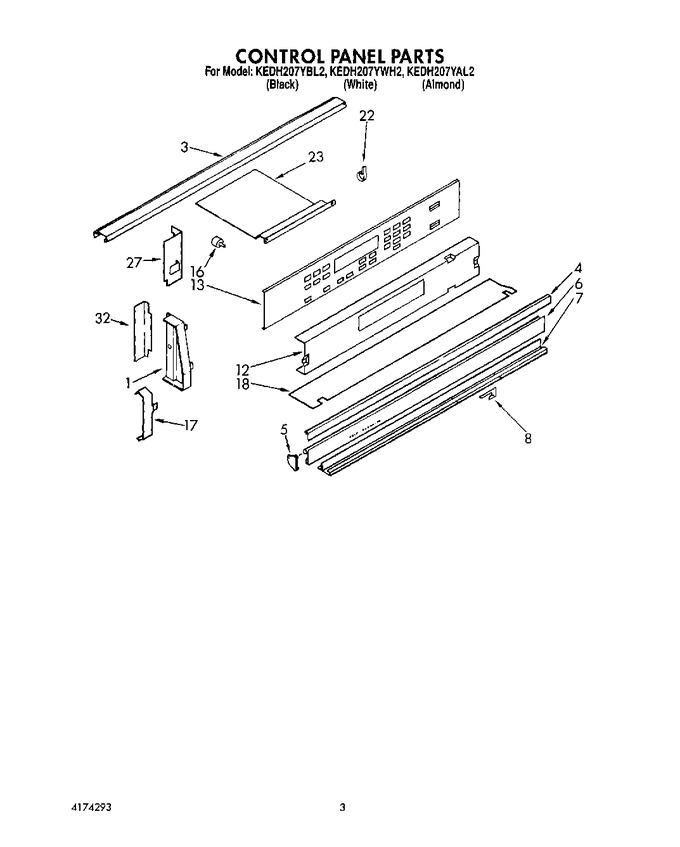

01 - Oven Parts


02 - Control Panel


03 - Door, Literature


04 - Cooktop, Optional


05 - Internal Convection Oven


06 - Convection Fan


07 - Utility Drawer And Rail


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3150730		End Cap Left Hand (white)		Appelez-nous	-
1	3150733		End Cap, L.h. (almond)		Appelez-nous	-
1	3148905		End Cap Left Hand (washer (2))		Appelez-nous	-
1	3150728		End Cap Left Hand (black)		Appelez-nous	-
1	3150732		End Cap, L.h. (almond)		Appelez-nous	-
1	3150729		End Cap Left Hand (black Right Hand)		Appelez-nous	-
1	3150731		End Cap Left Hand (white)		Appelez-nous	-
3	254217		Rail, Top (screw (4))		Appelez-nous	-
3	3183329		Rail, Top (black)		Appelez-nous	-
3	3183341		Rail, Top (bright Aluminum)		Appelez-nous	-
4	3183367		Trim, Center (bright Aluminum)		Appelez-nous	-
4	3183366		Trim, Center (black)		Appelez-nous	-
5	3148471		Trim, Vent Door Left Hand (brite Aluminum Right Hand)		Appelez-nous	-
5	3148472		Trim, Vent Door Left Hand (brite Aluminum)		Appelez-nous	-
5	3148698		Trim, Vent Door Left Hand (black)		Appelez-nous	-
5	3148697		Trim, Vent Door Left Hand (black)		Appelez-nous	-
6	254217		Door, Vent (screw (2))		Appelez-nous	-
6	314190		Door, Vent (black)		Appelez-nous	-
6	3149676		Door, Vent (semi-bright Aluminum)		Appelez-nous	-
7	342043		Screw		Appelez-nous	-
7	314184		Trim, Bottom		Appelez-nous	-
8	254225		Screw,		Appelez-nous	-
8	3149142		Shield, Air		Appelez-nous	-
12	3182390		Panel, Control (black)		Appelez-nous	-
12	3182680		Panel, Control (white)		Appelez-nous	-
12	3182681		Panel, Control (almond)		Appelez-nous	-
13	3181703		Microcomputer		Appelez-nous	-
16	3183328		Bumper, Rubber (4)		Appelez-nous	-
17	3183316		Bracket, Control Panel		Appelez-nous	-
17	98520		Screw (4)		Appelez-nous	-
18	254225		Screw (2)		Appelez-nous	-
18	3183992		Shield, Control		Appelez-nous	-
22	98520		Screw		Appelez-nous	-
22	WP308605		Clamp, Wire   (Replaces: 308605)				$ 10.08
23	98520		Screw (2)		Appelez-nous	-
23	3149419		Shield, Heat		Appelez-nous	-
27	254225		Screw (4)		Appelez-nous	-
27	3183317		Bracket, Support		Appelez-nous	-
32	3149902		Trim, End Cap (almond)		Appelez-nous	-
32	3149901		Trim, End Cap (white)		Appelez-nous	-
32	3149900		Trim, End Cap (black)		Appelez-nous	-
