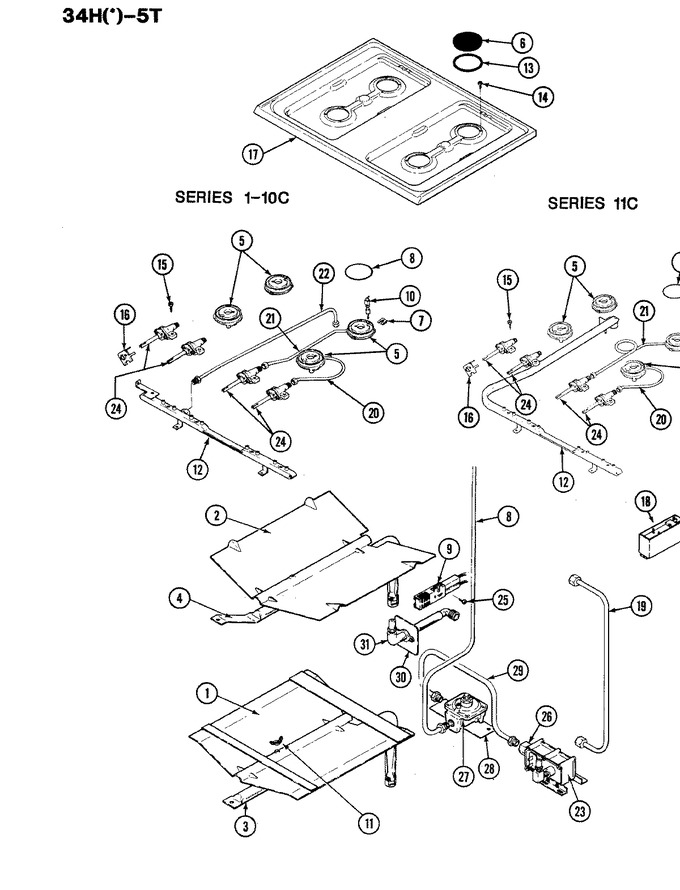

01 - Backguard Parts
02 - Body Parts
03 - Control Parts
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W129-13 | Baffle, Assy | 01 |
|
- | ||||
| 2 | 3601F099-45 | Baffle, Broil | 01 |
|
- | ||||
| 2 | 3801F096-45 | Bracket, H.l. Swit | 01 |
|
- | ||||
| 3 | 7505P101-60 | Burner | 01 |
|
- | ||||
| 4 | 7505P100-60 | Burner, Bake & Broil | 01 |
|
- | ||||
| 5 | 7505P187-60 | Burner, Top | 28 |
|
- | ||||
| 5 | W10127325 | Burner, Top Complete Kit | 01 |
|
- | ||||
| 5 | 7101P256-60 | Screw | 01 |
|
- | ||||
| 6 | 4005F174-80 | Cover, Module | 01 |
|
- | ||||
| 6 | 7504P007-60 | Cap, Surface Burner, Black | 28 |
|
- | ||||
| 6 | 7504P005-60 | Cap, Burner | 01 |
|
- | ||||
| 7 | 7112P072-60 | Clip | 01 |
|
- | ||||
| 7 | 7507P053-60 | Fitting, Straight | 01 |
|
- | ||||
| 7 | W10124350 | Not Required Part Or See Note | 11 |
|
- | ||||
| 8 | 7201P037-60 | Gasket, Burner | 01 |
|
- | ||||
| 8 | 7518P004-60 | Grate | 01 |
|
- | ||||
| 9 | 12400035 | Igniter, Bake Burner (Replaces: 7432P052-60) | 01 |
|
Immediately | $ 60.44 | |||
| 9 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 24 |
|
Immediately | $ 60.44 | |||
| 10 | 7432P053-60 | Igniter, Burner | 01 |
|
- | ||||
| 11 | 7103P030-60 | Nut, Wing | 01 |
|
$ 6.37 | ||||
| 11 | 7509P030-60 | Orifice, Lp Sealed | 01 |
|
- | ||||
| 12 | 7513P086-60 | Pipe, Manifold | 01 |
|
- | ||||
| 12 | 7513P093-60 | Manifold Pipe | 11 |
|
- | ||||
| 13 | 2014F001-00 | Ring, Black | 01 |
|
- | ||||
| 14 | 7101P256-60 | Screw | 01 |
|
- | ||||
| 15 | 7101P043-60 | Screw, Control Valve | 01 |
|
- | ||||
| 16 | WP7403P190-60 | Switch, Top Burner (Replaces: 7403P041-60) | 01 |
|
$ 118.82 | ||||
| 17 | 2001F063-91 | Top, Main Snow White | 01 |
|
- | ||||
| 18 | 12001596 | Module, Spark (Replaces: 7431P017-60) | 01 |
|
Immediately | $ 85.93 | |||
| 19 | 3414F057-44 | Tubing, 3/8 X 20-3/4 | 01 |
|
- | ||||
| 19 | 7746P025-60 | Trim, Main Top (left) | 13 |
|
- | ||||
| 19 | 7720P046-60 | Trim, Main Top (left) | 01 |
|
- | ||||
| 19 | 7746P026-60 | Trim, Main Top (right) | 13 |
|
- | ||||
| 19 | 7720P049-60 | Trim, Main Top (right) | 01 |
|
- | ||||
| 20 | 7506P076-60 | Tube, Front Burner | 01 |
|
- | ||||
| 21 | 7506P077-60 | Tube, Rear Burner | 01 |
|
- | ||||
| 22 | 7506P101-60 | Tube, Manifold Feed----na | 11 |
|
- | ||||
| 22 | 7506P090-60 | Tube, Manifold Feed | 01 |
|
- | ||||
| 22 | W10124350 | Not Required Part Or See Note | 11 |
|
- | ||||
| 22 | 7506P092-60 | Tube, Manifold | 01 |
|
- | ||||
| 23 | 7501P034-60 | Valve, Broil & Bake | 01 |
|
- | ||||
| 24 | 7502P100-60 | Valve, Top Burner | 01 |
|
- | ||||
| 24 | 5110P825-60 | Wire, Igniter Rear | 01 |
|
- | ||||
| 24 | 5110P824-60 | Wire, Igniter Front | 01 |
|
- | ||||
| 25 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 01 |
|
$ 4.29 | ||||
| 26 | 1555251 | Nut, Loxit (3/8``) | 01 |
|
- | ||||
| 27 | 7510P028-60 | Regulator, Pressure | 01 |
|
- | ||||
| 28 | 3801F191-45 | Bracket, Regulator Mtg | 01 |
|
- | ||||
| 29 | 7506P075-60 | Tube, Regulator----na | 01 |
|
- | ||||
| 30 | 3605F019-45 | Plate, Fitting | 01 |
|
- | ||||
| 31 | 7507P028-60 | Fitting, Broil Burner | 01 |
|
- | ||||
| 32 | 5415A014-60 | Conversion Kit To Lp | 01 |
|
- |
