01 - Backguard Parts
02 - Body Parts
03 - Control Parts

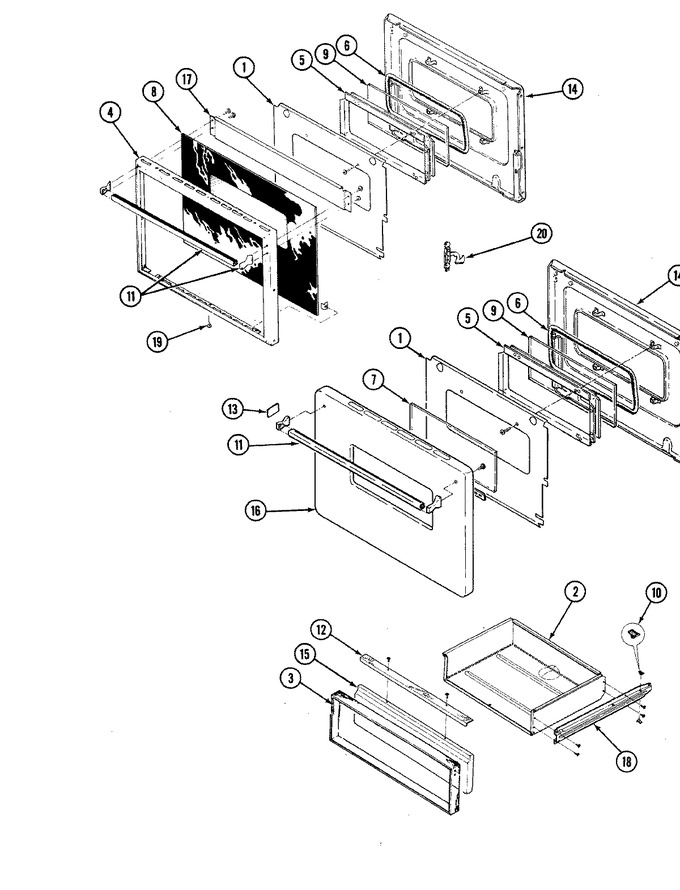

04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F093-51 | Baffle | 01 |
|
- | ||||
| 1 | 8003P002-60 | Bumper Door (round) | 01 |
|
- | ||||
| 1 | 7112P034-60 | Clip, Door | 01 |
|
- | ||||
| 2 | 3405F008-80 | Drawer, Service | 01 |
|
- | ||||
| 3 | W10124350 | Not Required Part Or See Note Frame (must Order No.15) | 01 |
|
- | ||||
| 4 | 7706P243-60 | Frame, Door | 04 |
|
- | ||||
| 4 | 7706P222-60 | Frame, Oven Door | 01 |
|
- | ||||
| 5 | 7706P177-60 | Frame, Window | 01 |
|
- | ||||
| 6 | 7201P018-60 | Gasket, Window | 01 |
|
- | ||||
| 7 | 7902P097-60 | Glass, Inner | 01 |
|
$ 63.87 | ||||
| 8 | 7902P276-60 | Glass, Door | 01 |
|
- | ||||
| 9 | 7902P101-60 | Glass, Window Outer | 01 |
|
- | ||||
| 9 | 7902P103-60 | Glass, Window | 01 |
|
- | ||||
| 9 | 7902P287-60 | Glass, Window Inner | 02 |
|
- | ||||
| 10 | 8016P004-60 | Glide, Drawer | 01 |
|
- | ||||
| 10 | 8016P009-60 | Glide, Drawer | 21 |
|
- | ||||
| 10 | 8016P004-60 | Glide, Drawer | 21 |
|
- | ||||
| 11 | 7101P123-60 | Screw | 01 |
|
- | ||||
| 11 | 7701P047-60 | Handle, Door | 01 |
|
- | ||||
| 12 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 13 | 7728P012-60 | Insert, Oven Door Handle | 01 |
|
- | ||||
| 14 | 2410A029-12 | Pad | 01 |
|
- | ||||
| 14 | 2402W128-15 | Lining | 01 |
|
- | ||||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 15 | 2416F027-71 | Panel, Storage Door White | 01 |
|
- | ||||
| 16 | W10124350 | Not Required Part Or See Note | 01 |
|
- | ||||
| 17 | 3804F051-80 | Retainer, Glass | 01 |
|
- | ||||
| 18 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 18 | 3406F020-80 | Runner, Inner | 01 |
|
- | ||||
| 18 | 3406F026-80 | Runner, Inner | 01 |
|
- | ||||
| 19 | 7208P002-60 | Seal | 01 |
|
- | ||||
| 19 | 7101P013-60 | Screw, Special | 01 |
|
- | ||||
| 19 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 19 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 01 |
|
Immediately | $ 6.85 | |||
| 19 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 01 |
|
$ 16.55 | ||||
| 20 | 3420A033-34 | Stop, Oven Door | 01 |
|
- |
