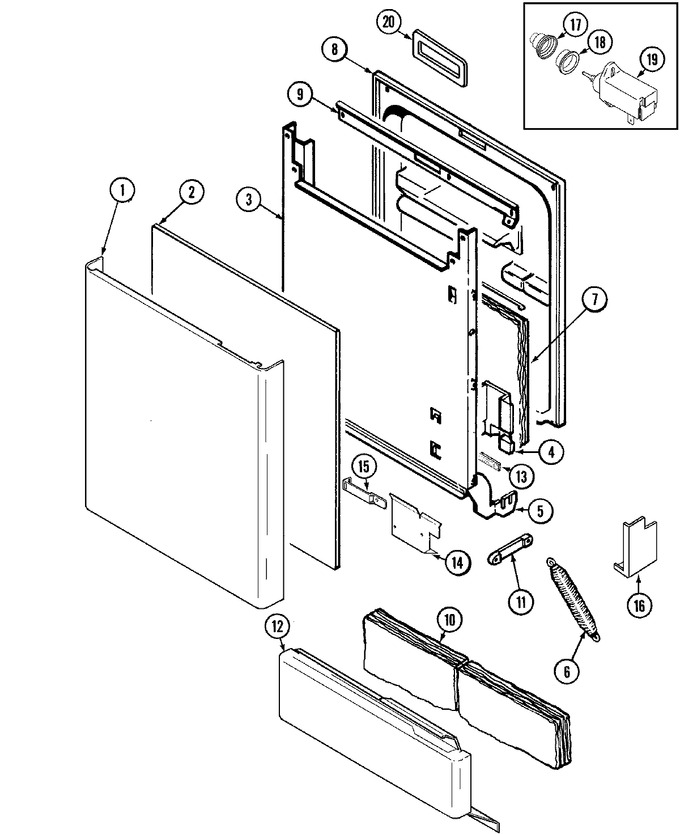

01 - Door
02 - Pump & Motor
03 - Rinse Aid & Soap Dispenser
04 - Track & Rack Assembly
05 - Tub
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99001416 | Panel, Decorator (wht) | 12 |
|
- | ||||
| 1 | 99001445 | Screw, Decorator Panel (wht) | 12 |
|
- | ||||
| 2 | 99001415 | Filler, Front Panel | 12 |
|
- | ||||
| 3 | 99001688 | Ground Wire, Reinforcement | 12 |
|
- | ||||
| 3 | 99001892 | Door, Outer | 12 |
|
- | ||||
| 4 | Y912666 | Retainer, Wire | 12 |
|
- | ||||
| 4 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 12 |
|
Immediately | $ 6.90 | |||
| 4 | WP99002362 | Spacer, Foam (Replaces: 99002362) | 12 |
|
$ 5.55 | ||||
| 5 | 99001075 | Screw | 12 |
|
$ 5.81 | ||||
| 5 | 99001899 | Hinge (rt) | 12 |
|
- | ||||
| 5 | 99001898 | Hinge (lt) | 12 |
|
- | ||||
| 6 | 99002469 | Spring, Door | 12 |
|
$ 5.83 | ||||
| 7 | WP6-920580 | Insulation, Door (Replaces: Y912669) | 12 |
|
$ 28.77 | ||||
| 8 | Y912620 | Screw | 12 |
|
$ 5.48 | ||||
| 8 | 99001775 | Door, Inner (w/vent Assy) | 12 |
|
- | ||||
| 8 | 99002383 | Door, Inner | 25 |
|
- | ||||
| 8 | 99001215 | Damper, Sound (top) | 12 |
|
- | ||||
| 8 | Y912751 | Damper, Sound (btm) | 12 |
|
- | ||||
| 9 | Y912668 | Bar, Reinforcement | 12 |
|
- | ||||
| 10 | Y912836 | Insulation, Access Panel | 12 |
|
- | ||||
| 11 | WP912653 | Link, Door Spring (Replaces: 912653) | 12 |
|
Immediately | $ 7.45 | |||
| 12 | 99001194 | Screw, Access Panel | 12 |
|
$ 6.18 | ||||
| 12 | 99002060 | Panel, Access (wht) | 12 |
|
- | ||||
| 13 | 903233 | Foam Strip, Insulation | 12 |
|
- | ||||
| 14 | WP6-912366 | Screw (Replaces: 912366) | 12 |
|
$ 7.29 | ||||
| 14 | 99001414 | Shield, Tub | 12 |
|
- | ||||
| 14 | WPW10339879 | Strap, Cable (Replaces: 912266) | 12 |
|
$ 7.11 | ||||
| 15 | 99001444 | Strap, Harness | 12 |
|
- | ||||
| 15 | WP489128 | Screw (Replaces: 912365) | 12 |
|
$ 9.79 | ||||
| 16 | Y912809 | Shield, Access Panel (rt) | 12 |
|
- | ||||
| 16 | WP6-912366 | Screw (Replaces: 912366) | 12 |
|
$ 7.29 | ||||
| 16 | Y912810 | Shield, Access Panel (lt) | 12 |
|
- | ||||
| 17 | 99001805 | Grommet, Vent | 12 |
|
- | ||||
| 18 | 99001806 | Retainer, Grommet | 12 |
|
- | ||||
| 19 | 99001807 | Motor, Wax | 12 |
|
$ 34.32 | ||||
| 20 | 99001783 | Seal, Vent Back | 12 |
|
- |
