SELECT A DIAGRAM

01 - Door


02 - Pump & Motor


03 - Rinse Aid & Soap Dispenser


04 - Track & Rack Assembly


05 - Tub


06 - Wiring Information

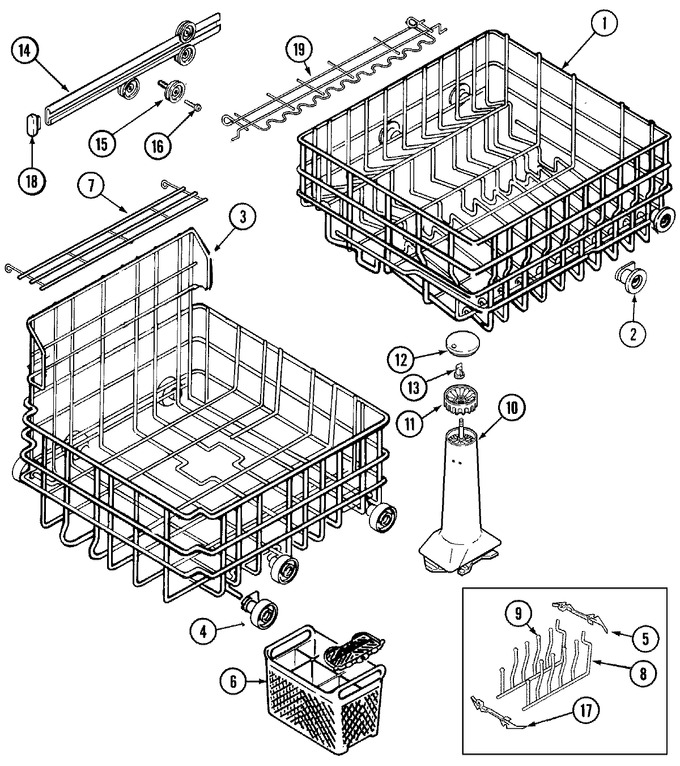

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99001507		Rack Assembly (upr)	12	Appelez-nous	-
2	WP903093		Wheel Assembly (upr)   (Replaces: 903093)	12		Immediately	$ 9.65
3	99002401		Rack Assembly (lwr)	25	Appelez-nous	-
3	99002220		Rack Assembly (lwr)	12	Appelez-nous	-
4	WP99002780		Wheel Assembly (lwr)   (Replaces: 903095)	12		Immediately	$ 9.90
5	99001746		Latch, Pivoting Tine	12			$ 6.98
6	WP6-918873		Basket, Silverware (w/cover)   (Replaces: 99001751)	12		Immediately	$ 54.28
7	902990		Shelf, Rack (lwr)	12	Appelez-nous	-
8	99002218		Tine, Bowl (frt)	12	Appelez-nous	-
9	99002219		Tine, Bowl (rear)	12	Appelez-nous	-
10	99001533		Tower, Spray (w/shaft-gray)	12	Appelez-nous	-
11	99001442		Diverter, Spray (gray)	12			$ 5.84
12	99001443		Cap, Spray Diverter (gray)	12			$ 5.51
13	99001426		Nut, Discharge Housing	12			$ 5.84
14	Y912545		Track, Rack	12			$ 40.33
15	WPY912798		Washer, Tub Wheel   (Replaces: Y912798)	12			$ 6.90
15	912548		Wheel, Tub	12	Appelez-nous	-
16	WP99002947		Shaft, Tub Wheel   (Replaces: 912549)	12		Immediately	$ 10.58
17	WP99001436		Clip, Fold Away Tine   (Replaces: 99001436)	12			$ 7.47
18	WP99002135		Stop, Rack (gray)   (Replaces: 99002135)	12			$ 7.92
19	99001508		Shelf, Rack (upr)	12	Appelez-nous	-
20	99002016		Cap, Rack (wht)	12	Appelez-nous	-
20	99002017		Cap, Rack (light Gray)	12			$ 5.22
