SELECT A DIAGRAM

01 - Cooktop


02 - Door


03 - Control Panel, Optional


04 - Upper Oven, Literature


05 - Internal Oven


06 - Utility Drawer And Rail


07 - Convection Fan


08 - Wiring Harness

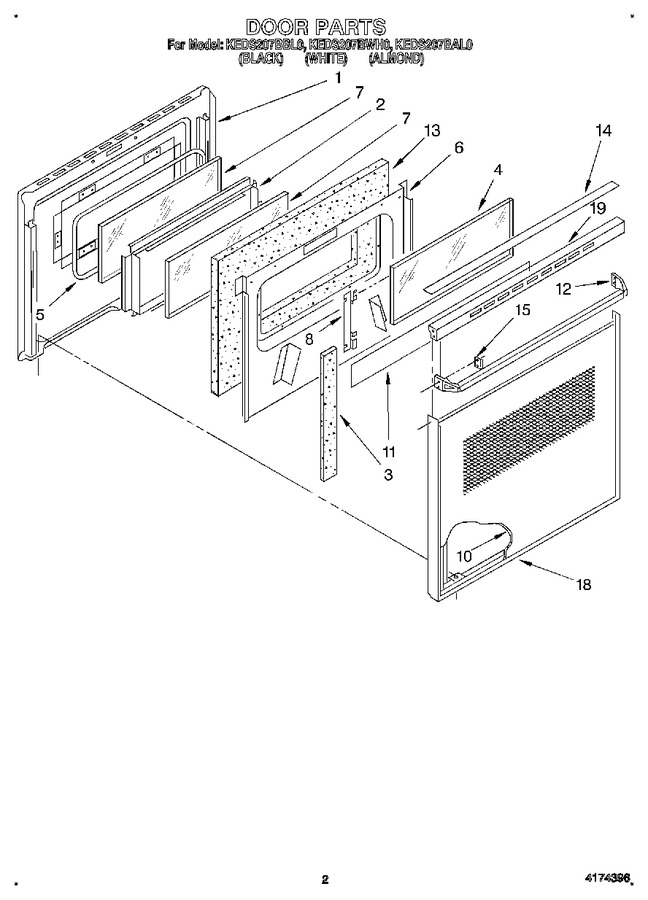

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3172218		Liner, Door		Appelez-nous	-
2	3148234		Frame, Window		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3185647		Screw		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148159		Retainer, Insulation		Appelez-nous	-
6	4173601		Screw		Appelez-nous	-
7	WP3169203		Glass, Inner & Outer   (Replaces: 3169203)				$ 135.71
8	3188553		Retainer, Glass (2)		Appelez-nous	-
10	3188052		Glass, Panel (black Model)		Appelez-nous	-
10	3188051		Glass, Panel (almond Model)		Appelez-nous	-
10	3188050		Glass, Panel (white Model)		Appelez-nous	-
11	3188706		Foil		Appelez-nous	-
12	3186524		Handle, Oven Door (black)		Appelez-nous	-
12	WP355515		Handle, Oven Door (screw (4))   (Replaces: 355515)				$ 6.90
12	3186526		Handle, Oven Door (almond)		Appelez-nous	-
12	3186525		Handle, Oven Door (white)		Appelez-nous	-
13	3188375		Insulation (almond Model)		Appelez-nous	-
14	3181363		Cap, Top		Appelez-nous	-
15	3148282		Clip, Mtg (2)				$ 8.69
18	3185918		Screw		Appelez-nous	-
18	3148235		Frame		Appelez-nous	-
19	3148223		Top, Door (black)		Appelez-nous	-
19	3149355		Door Top (white Or Almond)		Appelez-nous	-
19	3149333		Door Top (screw (5))				$ 5.33

    View Diagram in Separate Window       Print Part List
