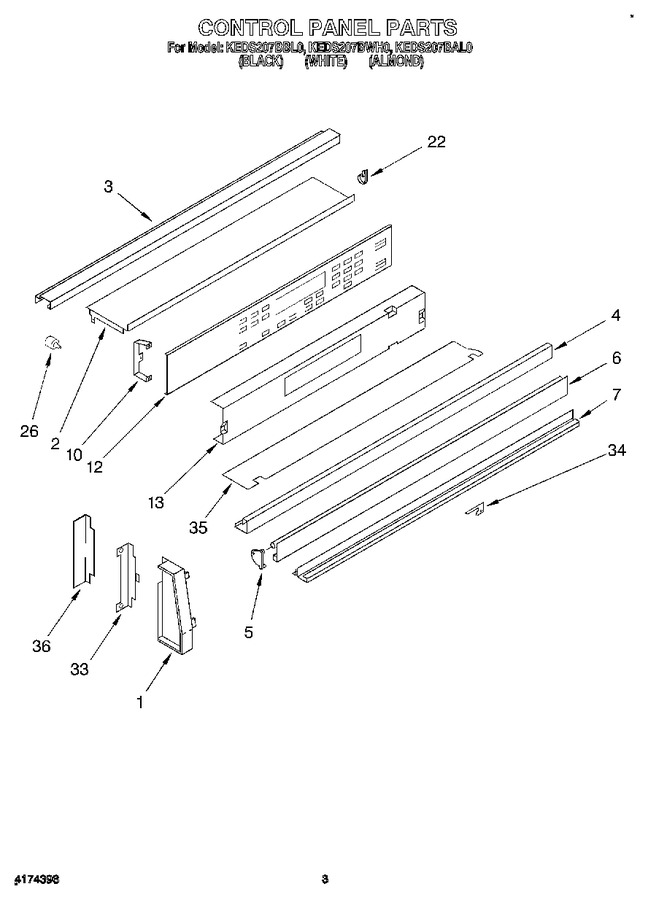

03 - Control Panel, Optional


04 - Upper Oven, Literature


05 - Internal Oven


06 - Utility Drawer And Rail


07 - Convection Fan


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3150729		End Cap (r.h.) (black)		Appelez-nous	-
1	3150731		End Cap (r.h.) (white)		Appelez-nous	-
1	3150733		End Cap (r.h.) (almond)		Appelez-nous	-
1	3150730		End Cap, L.h. (white)		Appelez-nous	-
1	3150732		End Cap, L.h. (almond)		Appelez-nous	-
1	3148905		End Cap (washer, Silicone)		Appelez-nous	-
1	3150728		End Cap, L.h. (black)		Appelez-nous	-
2	3188534		Shield, Heat		Appelez-nous	-
2	254225		Screw (2)		Appelez-nous	-
3	3183341		Rail, Top (bright Aluminum)		Appelez-nous	-
3	3183329		Rail, Top (black)		Appelez-nous	-
4	3183366		Trim, Center (black)		Appelez-nous	-
4	254217		Trim, Center (screw)		Appelez-nous	-
4	3183367		Trim, Center (bright Aluminum)		Appelez-nous	-
5	3148471		End Trim, Vent Door (brite Aluminum, Lh)		Appelez-nous	-
5	3148697		End Trim, Vent Door (black, Lh)		Appelez-nous	-
5	3148472		End Trim, Vent Door (brite Aluminum, Rh)		Appelez-nous	-
5	3148698		End Trim, Vent Door (black, Rh)		Appelez-nous	-
6	3149676		Vent Door (brushed Chrome)		Appelez-nous	-
6	314190		Vent Door (black)		Appelez-nous	-
7	342043		Screw (6)		Appelez-nous	-
7	314184		Trim, Bottom		Appelez-nous	-
10	3183316		Support, Control Panel (2)		Appelez-nous	-
10	98520		Screw (4)		Appelez-nous	-
12	3182681		Panel, Control (almond)		Appelez-nous	-
12	3182680		Panel, Control (white)		Appelez-nous	-
12	3182390		Panel, Control (black)		Appelez-nous	-
13	3181703		Microcomputer		Appelez-nous	-
22	3179117		Screw		Appelez-nous	-
22	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
26	3183328		Bumper, Rubber (4)		Appelez-nous	-
33	3183317		Support, Control Panel		Appelez-nous	-
34	3149142		Shield, Air		Appelez-nous	-
35	98520		Screw		Appelez-nous	-
35	3183992		Shield - Heat		Appelez-nous	-
36	242829		Red 12 Ga. 150~c Rating		Appelez-nous	-
36	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
36	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
36	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
36	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
36	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
36	285368		Platinum		Appelez-nous	-
36	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
36	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
36	799832		Kit, Porcelain Repair (white) Conversion Kit		Appelez-nous	-
36	3183638		Conversion Kit (black)		Appelez-nous	-
36	3183639		White		Appelez-nous	-
36	3183640		Almond		Appelez-nous	-
36	814128		Anti-tip Kit		Appelez-nous	-
36	3185260		Mounting Hardware		Appelez-nous	-
36	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
36	3149900		Trim, End Cap (black)		Appelez-nous	-
36	3149901		Trim, End Cap (white)		Appelez-nous	-
36	3149902		Trim, End Cap (almond)		Appelez-nous	-
36	350806		18 Ga. 80~c Rating (yellow)		Appelez-nous	-
36	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
36	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
36	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
36	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
36	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
36	242826		White 14 Ga. 150~c Rating		Appelez-nous	-
36	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
36	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
36	242831		Wire (14 Ga. 200 C Red)				$ 342.23
36	242832		Yellow 14 Ga. 200~c Rating		Appelez-nous	-
36	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
36	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
36	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
36	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
36	WP261869		Citrine White   (Replaces: 261869)				$ 23.85
36	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
36	261890		Harvest Gold		Appelez-nous	-
36	285365		Toast		Appelez-nous	-
36	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
36	285006		Spray Paint (black) 13 Oz.   (Replaces: 830864)			Immediately	$ 51.34
36	350942		Primer				$ 80.69
36	350941		Leveler (primer)		Appelez-nous	-
36	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
36	978883		Almond		Appelez-nous	-
36	261891		Harvest Gold		Appelez-nous	-
