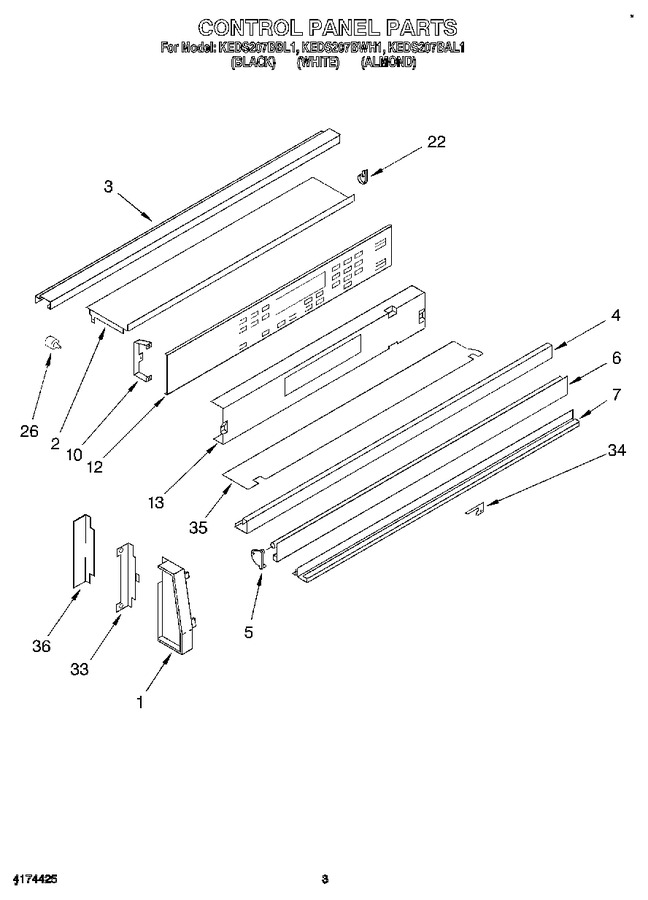

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop
02 - Door
03 - Control Panel, Optional
04 - Oven, Literature
05 - Internal Oven
06 - Utility Drawer And Rail
07 - Convection Fan
08 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3150729 | End Cap (black, Rh) |
|
- | |||||
| 1 | 3150731 | End Cap (white, Rh) |
|
- | |||||
| 1 | 3150733 | End Cap (almond, Rh) |
|
- | |||||
| 1 | 3150730 | End Cap (white, Lh) |
|
- | |||||
| 1 | 3150732 | End Cap, L.h. (almond) |
|
- | |||||
| 1 | 3148905 | End Cap (washer, Silicone) |
|
- | |||||
| 1 | 3150728 | End Cap (black, Lh) |
|
- | |||||
| 2 | 3188534 | Shield, Heat |
|
- | |||||
| 2 | 254225 | Screw (2) |
|
- | |||||
| 3 | 3183341 | Rail, Top (bright Aluminum) |
|
- | |||||
| 3 | 3183329 | Rail, Top (black) |
|
- | |||||
| 4 | 3183366 | Trim, Center (black) |
|
- | |||||
| 4 | 254217 | Trim, Center (screw) |
|
- | |||||
| 4 | 3183367 | Trim, Center (bright Aluminum) |
|
- | |||||
| 5 | 3148471 | End Trim, Vent Door (brite Aluminum, Lh) |
|
- | |||||
| 5 | 3148697 | End Trim, Vent Door (black, Lh) |
|
- | |||||
| 5 | 3148472 | End Trim, Vent Door (brite Aluminum, Rh) |
|
- | |||||
| 5 | 3148698 | End Trim, Vent Door (black, Rh) |
|
- | |||||
| 6 | 3149676 | Vent Door (brushed Chrome) |
|
- | |||||
| 6 | 314190 | Vent Door (black) |
|
- | |||||
| 7 | 342043 | Screw (6) |
|
- | |||||
| 7 | 314184 | Trim, Bottom |
|
- | |||||
| 10 | 3183316 | Support, Control Panel (2) |
|
- | |||||
| 10 | 98520 | Screw (4) |
|
- | |||||
| 12 | 3186990 | Control Panel (almond) |
|
- | |||||
| 12 | 3186989 | Control Panel (white) |
|
- | |||||
| 12 | 3186988 | Control Panel (black) |
|
- | |||||
| 13 | 3181703 | Microcomputer |
|
- | |||||
| 22 | 3179117 | Screw |
|
- | |||||
| 22 | WP308605 | Strain, Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 26 | 3183328 | Bumper, Rubber (4) |
|
- | |||||
| 33 | 3183317 | Support, Control Panel |
|
- | |||||
| 34 | 3149142 | Shield, Air |
|
- | |||||
| 35 | 98520 | Screw |
|
- | |||||
| 35 | 3183992 | Shield - Heat |
|
- | |||||
| 36 | 242829 | Red 12 Ga. 150~c Rating |
|
- | |||||
| 36 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 36 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 36 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 36 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 36 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 36 | 285368 | Platinum |
|
- | |||||
| 36 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 36 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 36 | 799832 | Kit, Porcelain Repair (white) Conversion Kit |
|
- | |||||
| 36 | 3183638 | Conversion Kit (black) |
|
- | |||||
| 36 | 3183639 | White |
|
- | |||||
| 36 | 3183640 | Almond |
|
- | |||||
| 36 | 814128 | Anti-tip Kit |
|
- | |||||
| 36 | 3185260 | Mounting Hardware |
|
- | |||||
| 36 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 36 | 3149900 | Trim, End Cap (black) |
|
- | |||||
| 36 | 3149901 | Trim, End Cap (white) |
|
- | |||||
| 36 | 3149902 | Trim, End Cap (almond) |
|
- | |||||
| 36 | 350806 | 18 Ga. 80~c Rating (yellow) |
|
- | |||||
| 36 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 36 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 36 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 36 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 36 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 36 | 242826 | White 14 Ga. 150~c Rating |
|
- | |||||
| 36 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 36 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 36 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 36 | 242832 | Yellow 14 Ga. 200~c Rating |
|
- | |||||
| 36 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 36 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 36 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 36 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | |||||
| 36 | WP261869 | Citrine White (Replaces: 261869) |
|
$ 23.85 | |||||
| 36 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 36 | 261890 | Harvest Gold |
|
- | |||||
| 36 | 285365 | Toast |
|
- | |||||
| 36 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 36 | 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
Immediately | $ 51.34 | ||||
| 36 | 350942 | Primer |
|
$ 80.69 | |||||
| 36 | 350941 | Leveler (primer) |
|
- | |||||
| 36 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 36 | 978883 | Almond |
|
- | |||||
| 36 | 261891 | Harvest Gold |
|
- |
