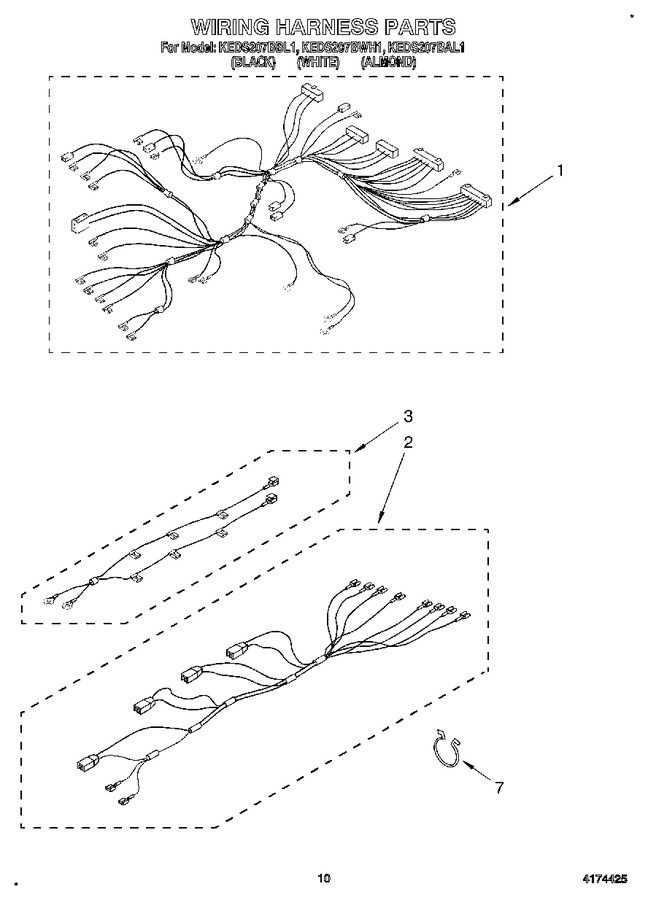

08 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3188447 | Harness, Wire (main) |
|
- | |||||
| 2 | 3188449 | Harness, Wire (surface Unit) |
|
- | |||||
| 3 | 3188566 | Harness, Wire (infinite Switch) |
|
- | |||||
| 7 | WP98997 | Clip, Harness (2) (Replaces: 98997) |
|
$ 9.98 | |||||
| 7 | 307748 | Screw (2) |
|
- | |||||
| 7 | 309133 | Screw (2) |
|
- |
