01 - Cooktop
02 - Door
03 - Control Panel, Optional
04 - Oven, Literature
05 - Internal Oven
06 - Utility Drawer And Rail
07 - Convection Fan
08 - Wiring Harness
SELECT A DIAGRAM
New Model Search:

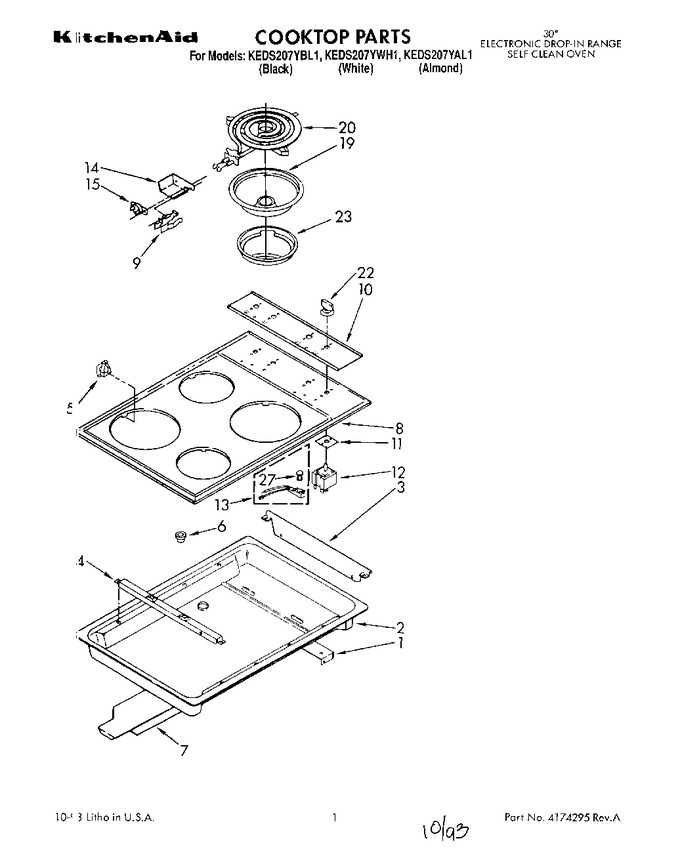

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 310718 | Support, Box |
|
- | |||||
| 1 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 2 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 2 | 311021 | Box, Burner |
|
- | |||||
| 3 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 3 | 310716 | Shield, Switch |
|
- | |||||
| 4 | 310717 | Support, Cooktop |
|
- | |||||
| 4 | WP488729 | Screw (6) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 5 | 814103 | Clip, Mounting (4) (Replaces: 3148790) |
|
$ 9.02 | |||||
| 6 | 258109 | Bushing |
|
- | |||||
| 7 | 3147565 | Cover, Top Rear |
|
- | |||||
| 7 | WP488729 | Screw (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 8 | 312318 | Cooktop (screw (6)) |
|
- | |||||
| 8 | 3148754 | Cooktop (white) |
|
- | |||||
| 8 | 3183618 | Cooktop (black) |
|
- | |||||
| 8 | 3148755 | Cooktop (almond) |
|
- | |||||
| 9 | WP313808 | Screw No.6-32x1/4 (Replaces: 313808) |
|
$ 6.84 | |||||
| 9 | 330031 | Receptacle (4) (Replaces: 3147829) |
|
Immediately | $ 14.48 | ||||
| 10 | 3147682 | Control Panel (almond) |
|
- | |||||
| 10 | 3147680 | Control Panel (black) |
|
- | |||||
| 10 | 3147681 | Control Panel (white) |
|
- | |||||
| 10 | 3147928 | Control Panel (tape, Foam) |
|
- | |||||
| 11 | 3183956 | Seal, Switch |
|
$ 41.81 | |||||
| 12 | 155023 | Switch, Infinite (screw (8)) |
|
Immediately | $ 7.91 | ||||
| 12 | WP3148966 | Switch, Infinite (8`` Element (2)) (Replaces: 3148966) |
|
$ 130.35 | |||||
| 12 | 3148967 | Switch, Infinite (6`` Element (2)) |
|
- | |||||
| 13 | 313461 | Indicator Light (lens, No.313602) |
|
- | |||||
| 14 | 3147830 | Bracket, Sensor |
|
- | |||||
| 15 | 3147833 | Thermostat |
|
$ 0.01 | |||||
| 15 | WP313808 | Screw No.6-32x1/4 (Replaces: 313808) |
|
$ 6.84 | |||||
| 19 | 3150198 | Reflector Pan (6`` (2)) |
|
- | |||||
| 19 | W10291024 | Reflector Pan (8`` (2)) (Replaces: 3150199) |
|
Immediately | $ 49.90 | ||||
| 20 | WP660533 | Surface Unit (8``) (includes Illus. 21) (Replaces: 660533) |
|
Immediately | $ 39.47 | ||||
| 20 | WP660532 | Surface Unit (6``) (Replaces: 660532) |
|
Immediately | $ 36.90 | ||||
| 22 | 3150100 | Knob, Control (4) (black) |
|
$ 21.50 | |||||
| 22 | 3150096 | Knob, Control (4) (white) |
|
- | |||||
| 22 | 3150097 | Knob, Control (4) (almond) |
|
- | |||||
| 23 | W10858781 | Adapter Ring (8`` (2)) (Replaces: 3150245) |
|
$ 85.64 | |||||
| 23 | W10854470 | Adapter Ring (6`` (2)) (Replaces: 3150244) |
|
$ 81.37 | |||||
| 27 | 313602 | Lens, Light |
|
- |
