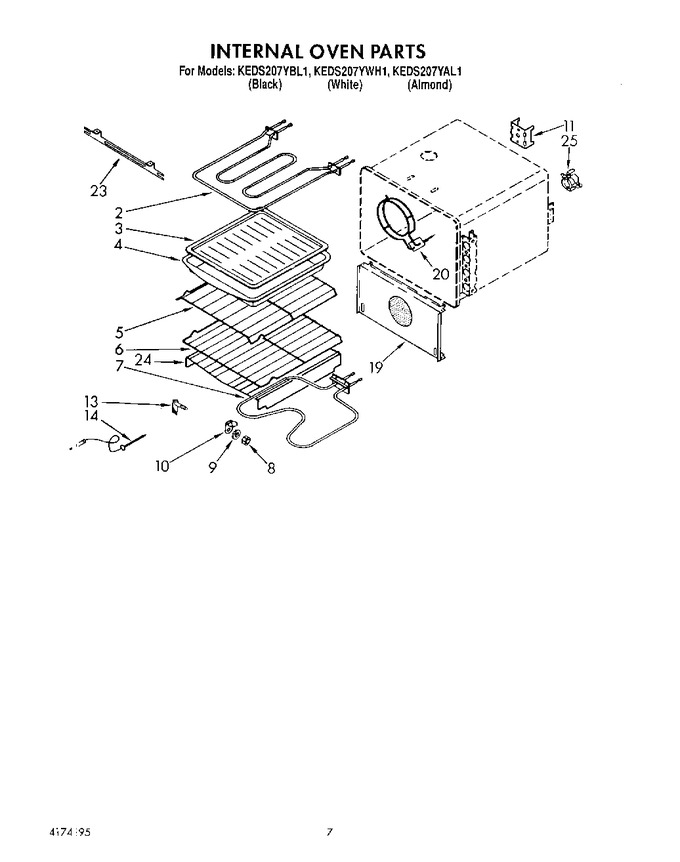

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop
02 - Door
03 - Control Panel, Optional
04 - Oven, Literature
05 - Internal Oven
06 - Utility Drawer And Rail
07 - Convection Fan
08 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3182451 | Element, Broil |
|
- | |||||
| 2 | 3150532 | Screw (2) |
|
- | |||||
| 3 | 4396923 | Grill, Broiler (Replaces: 3147563) |
|
Immediately | $ 52.04 | ||||
| 4 | 4396923 | Pan, Broiler (Replaces: 3147845) |
|
Immediately | $ 52.04 | ||||
| 5 | 3181639 | Rack, Offset |
|
- | |||||
| 6 | 3181638 | Rack, Straight |
|
- | |||||
| 7 | 3150532 | Screw (2) |
|
- | |||||
| 7 | WP661416 | Element, Bake (Replaces: 661416) |
|
$ 131.33 | |||||
| 8 | 4167277 | Nut, Meat Probe |
|
- | |||||
| 9 | 4163975 | Gasket, Meat Probe |
|
- | |||||
| 10 | 4167266 | Cover, Probe |
|
- | |||||
| 11 | 3182042 | Bracket, Support Motor |
|
- | |||||
| 13 | 3150107 | Receptacle, Probe |
|
- | |||||
| 14 | 3150144 | Meat Probe |
|
$ 106.70 | |||||
| 19 | 3181724 | Cover, Fan |
|
- | |||||
| 20 | 3179117 | Screw (3) |
|
- | |||||
| 20 | 3183003 | Element, Convection |
|
- | |||||
| 23 | 3179117 | Screw (2) |
|
- | |||||
| 23 | 3180694 | Bracket, Element |
|
- | |||||
| 24 | 3181534 | Rack, Roasting |
|
- | |||||
| 25 | 3149652 | Spst Thermostat |
|
- | |||||
| 25 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 |
