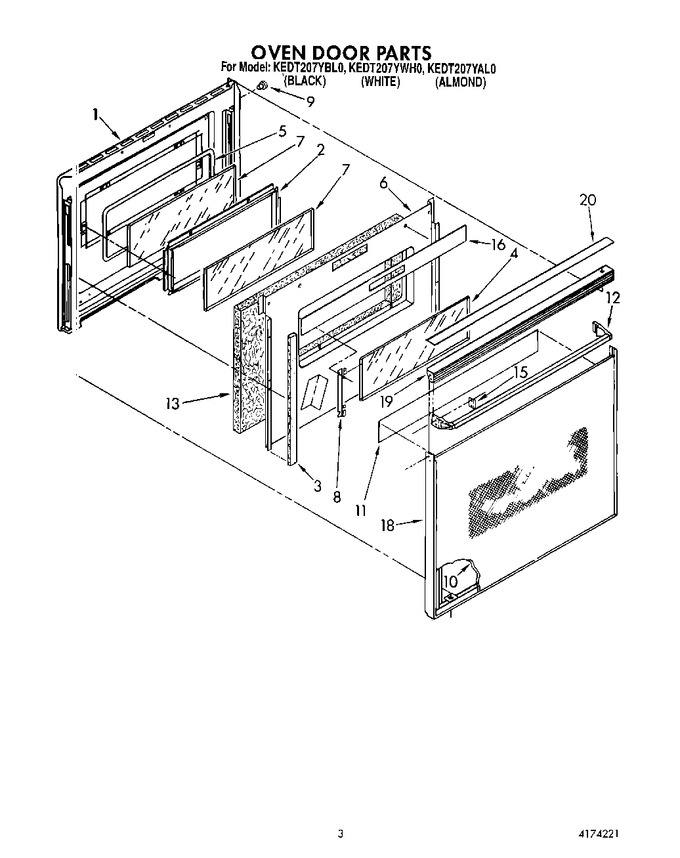

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148443		Screw (6)		Appelez-nous	-
1	3172218		Liner, Door		Appelez-nous	-
2	3148443		Screw (6)		Appelez-nous	-
2	3148234		Frame, Window		Appelez-nous	-
3	3148443		Screw (6)		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148159		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Outer & Inner   (Replaces: 3169203)				$ 135.71
8	3148187		Retainer, Glass (2)		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3148185		Glass, Panel (black)		Appelez-nous	-
10	3150348		Glass, Panel (almond)		Appelez-nous	-
10	3150347		Glass, Panel (white)		Appelez-nous	-
11	3148184		Foil		Appelez-nous	-
12	3183404		Handle, Oven Door (almond)		Appelez-nous	-
12	3183403		Handle, Oven Door (white)		Appelez-nous	-
12	WP355515		Handle, Oven Door (screw (4))   (Replaces: 355515)				$ 6.90
12	3183402		Handle, Oven Door (black)		Appelez-nous	-
13	3147951		Insulation		Appelez-nous	-
15	3148282		Pad, Handle Mtg.				$ 8.69
16	3148680		Shield		Appelez-nous	-
18	3148235		Frame		Appelez-nous	-
19	WP308685		Door Top (screw (5))   (Replaces: 3182346)			Immediately	$ 7.08
19	3149355		Door, Top (white Or Almond Model)		Appelez-nous	-
19	3148223		Top, Door (black)		Appelez-nous	-
20	WP308685		Screw (2)   (Replaces: 3182346)			Immediately	$ 7.08
20	3181363		Cap, Top (white Or Almond Model)		Appelez-nous	-
