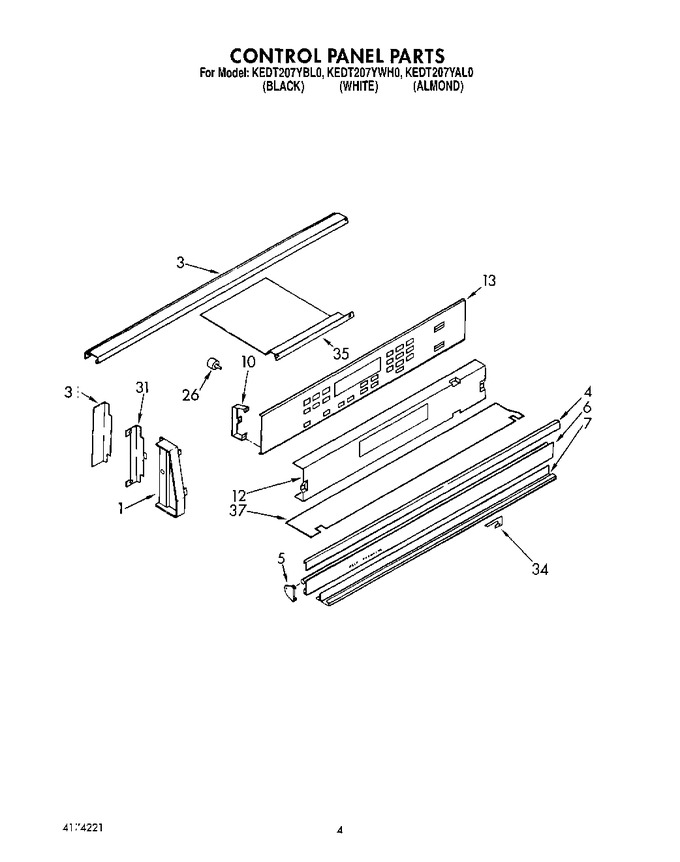

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148905 | End Cap. L.h. (washer, Silicone) |
|
- | |||||
| 1 | 3150728 | End Cap, L.h. (black) |
|
- | |||||
| 1 | 3150730 | End Cap, L.h. (white) |
|
- | |||||
| 1 | 3150732 | End Cap, L.h. (almond) |
|
- | |||||
| 1 | 3150729 | End Cap, L.h. (black) |
|
- | |||||
| 1 | 3150731 | End Cap, L.h. (white) |
|
- | |||||
| 1 | 3150733 | End Cap, L.h. (almond) |
|
- | |||||
| 3 | 3183329 | Rail, Top (black) |
|
- | |||||
| 3 | 3183341 | Rail, Top (bright Aluminum) |
|
- | |||||
| 4 | 3183367 | Trim, Center (bright Aluminum) |
|
- | |||||
| 4 | 3183366 | Trim, Center (black) |
|
- | |||||
| 5 | 3148697 | End Trim, R.h. Vent Door (black) |
|
- | |||||
| 5 | 3148471 | End Trim, R.h. Vent Door (brite Aluminum) |
|
- | |||||
| 5 | 3148472 | End Trim, R.h. Vent Door (brite Aluminum End Trim, L.h. Vent Door) |
|
- | |||||
| 5 | 3148698 | End Trim, R.h. Vent Door (black) |
|
- | |||||
| 6 | 3149676 | Vent Door (brushed Chrome) |
|
- | |||||
| 6 | 314190 | Vent Door (black) |
|
- | |||||
| 7 | 314184 | Trim, Bottom |
|
- | |||||
| 7 | 254217 | Screw (6) |
|
- | |||||
| 10 | 98520 | Screw (4) |
|
- | |||||
| 10 | 3183316 | Bracket, Control Panel (2) |
|
- | |||||
| 12 | 3181703 | Microcomputer |
|
- | |||||
| 13 | 3182681 | Panel, Control (almond) |
|
- | |||||
| 13 | 98520 | Control Panel (screw) |
|
- | |||||
| 13 | WP308605 | Control Panel (strain Relief) (Replaces: 308605) |
|
$ 10.08 | |||||
| 13 | 3182390 | Panel, Control (black) |
|
- | |||||
| 13 | 3182680 | Panel, Control (white) |
|
- | |||||
| 26 | 3183328 | Bumper, Rubber (4) |
|
- | |||||
| 31 | 3183317 | Brace, Control Bracket |
|
- | |||||
| 33 | 3149900 | Trim, End Cap (black) |
|
- | |||||
| 33 | 3149902 | Trim, End Cap (almond) |
|
- | |||||
| 33 | 3149901 | Trim, End Cap (white) |
|
- | |||||
| 34 | 3149142 | Shield, Air |
|
- | |||||
| 35 | 254225 | Screw, |
|
- | |||||
| 35 | 3149419 | Shield, Heat |
|
- | |||||
| 37 | 3183640 | Conversion Kit (almond) |
|
- | |||||
| 37 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 37 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 37 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 37 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 37 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 37 | 814128 | Anti-tip Kit |
|
- | |||||
| 37 | 3185260 | Mounting Hardware |
|
- | |||||
| 37 | 3183638 | Conversion Kit (black) |
|
- | |||||
| 37 | 3183639 | Conversion Kit (white) |
|
- | |||||
| 37 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 37 | 3183992 | Shield, Control |
|
- | |||||
| 37 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 37 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 37 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 37 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 37 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 37 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 37 | 242829 | Wire, Red 12 Ga. 150~c |
|
- |
