Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3148091 Frame, Control Panel Appelez-nous -
2 3147198 Control Module Appelez-nous -
2 313818 Screw, 8-32 X 3/16 (6) Appelez-nous -
3 313818 Screw, 8-32 X 3/16 (4) Appelez-nous -
3 3147281 Bracket, Control Mounting Appelez-nous -
5 WP313808 Screw, 6-32 X 1/4 (2)   (Replaces: 311932) Special Order $ 6.84

5 313534 Thermostat Appelez-nous -
6 3147233 Switch, Selector Appelez-nous -
6 308119 Screw, 8-32 X 3/16 (2) Appelez-nous -
7 308475 Switch, Infinite (4) Appelez-nous -
7 308119 Screw, 8-32 X 3/16 (8) Appelez-nous -
8 3147517 Light, Indicator (4) Appelez-nous -
9 314222 Knob, Control (6) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

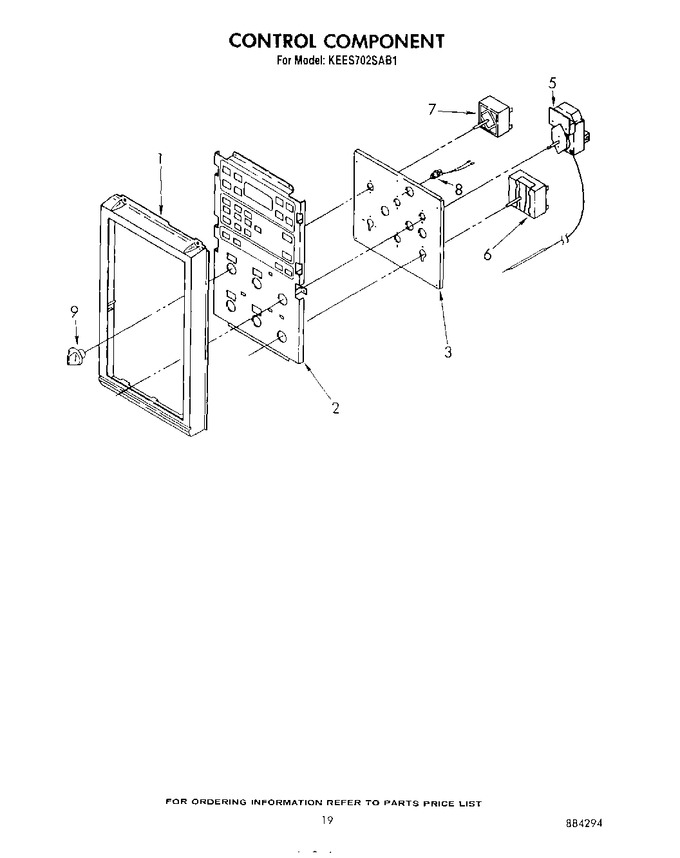

Diagram for KEES702SWB1
