SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts

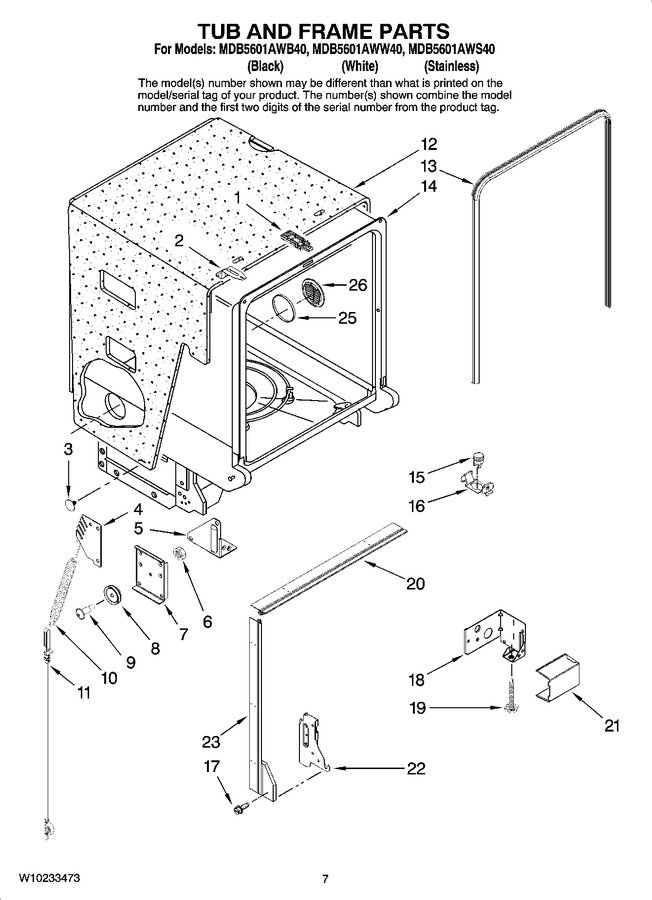

07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper And Lower Rack Parts


10 - Upper Wash And Rinse Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10119337		Strike, Door				$ 23.34
2	99002648		Bracket, Cabinet Mounting		Appelez-nous	-
3	99002640		Fastener				$ 18.96
4	99002610		Bracket, Spring Adjustment		Appelez-nous	-
5	99002636		Bracket, Support (left)		Appelez-nous	-
6	99003688		Nut				$ 5.51
7	W10173920		Bracket, Cable		Appelez-nous	-
8	99002608		Roller, Cable Bracket				$ 9.46
9	99003687		Bolt, Shoulder				$ 5.33
10	99002598		Spring, Door				$ 5.83
11	WP99003446		Door Cable Assy.   (Replaces: 99003446)			Immediately	$ 7.90
12	WPW10223013		Insulation, Tub   (Replaces: 99002849)				$ 83.60
13	99002588		Seal, Door				$ 81.57
14	W10142297		Tub Assembly		Appelez-nous	-
15	99002633		Thermostat, Limiting				$ 33.69
16	99002634		Clip, Thermostat				$ 5.51
17	99002692		Screw, Trim Mounting				$ 5.02
18	99002637		Bracket, Junction Box		Appelez-nous	-
19	WPW10143258		Leg, Leveling   (Replaces: W10143258)				$ 13.81
20	W10164698		Strip, Trim Top		Appelez-nous	-
21	99002638		Cover, Junction Box		Appelez-nous	-
22	W10137496		Support, Hinge (left)		Appelez-nous	-
22	W10137495		Support, Hinge (right)		Appelez-nous	-
23	W10164706		Trim, Strip Assembly (left)		Appelez-nous	-
23	W10164707		Trim, Strip Assembly (right)		Appelez-nous	-
25	W10200542		Seal, Air/water Inlet		Appelez-nous	-
26	99002948		Grill,air/water Inlet				$ 5.84
