Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10120533 Dishrack, Upper Appelez-nous -
2 99002621 Rail, Inner Slide Special Order $ 56.82

3 99002669 Clip, Upper Wash Manifold (front) Special Order $ 5.84

4 99002945 Clip, Upper Wash Manifold (back) Special Order $ 21.24

5 99002679 Wash Manifold Assy, (upper) Appelez-nous -
6 99002624 Arm, Wash (upper) Special Order $ 32.72

7 W10203868 Dishrack, Lower Appelez-nous -
8 WP99002780 Wheel Assembly Lower (8)   (Replaces: 99002780) In-Stock Immediately $ 9.90

9 WP99002781 Wheel Assembly (4)   (Replaces: 99002781) Special Order $ 11.15

10 WP6-918873 Basket, Silverware   (Replaces: W10187636) In-Stock Immediately $ 54.28

11 WP99002947 Wheel, Tub (8)   (Replaces: 99002947) In-Stock Immediately $ 10.58

12 99003476 Stop, Rail Special Order $ 38.72

13 99002672 Shelf,cup Upper Special Order $ 52.85


    View Diagram in Separate Window     Print Icon   Print Part List

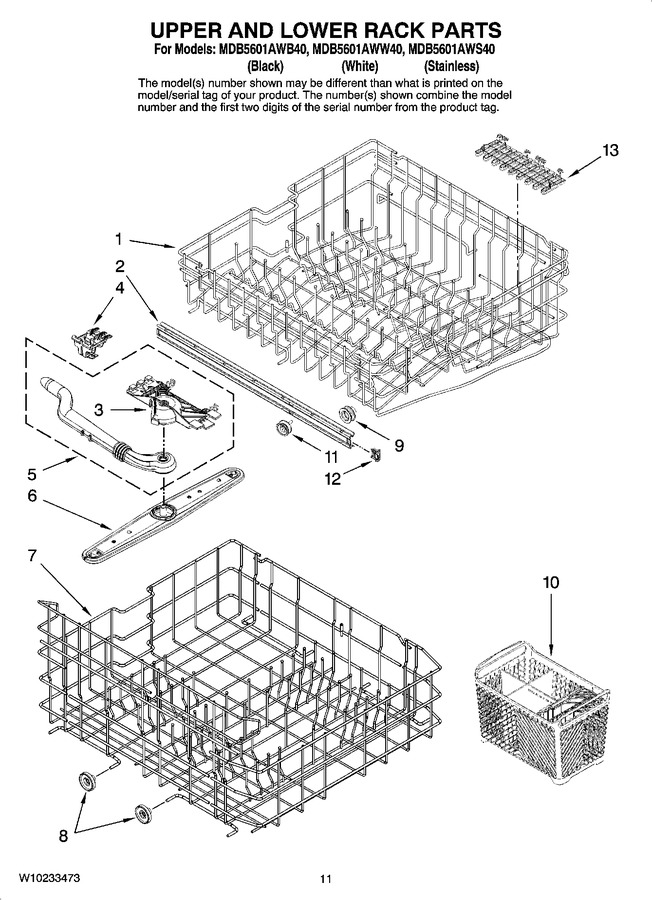

Diagram for MDB5601AWW40
