02 - Console And Control Parts

Diagram for 03 - Top Parts
03 - Top Parts

Diagram for 04 - Cabinet Parts
04 - Cabinet Parts

Diagram for 05 - Tub Detail
05 - Tub Detail

Diagram for 06 - Washer Drive System And Pump
06 - Washer Drive System And Pump

Diagram for 07 - Transmission Parts
07 - Transmission Parts

Diagram for 08 - Drain Hose And Miscellaneous
08 - Drain Hose And Miscellaneous


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3161323 Nut Appelez-nous -
2 3161328 Screw Appelez-nous -
3 3016991 Lid-white Appelez-nous -
3 3016990 Lid-almond Appelez-nous -
4 3261038 Bumper (2) Appelez-nous -
5 3161335 Screw Appelez-nous -
6 3261064 Strain Relief Appelez-nous -
7 3161343 Strike Appelez-nous -
8 3281192 Grommet (2) Appelez-nous -
10 3261065 Cord Appelez-nous -
11 3161338 Panel-top-almd Appelez-nous -
12 3281170 Spring (2) Appelez-nous -
13 3161341 Switch, Lid Lock Appelez-nous -
14 3161342 Shield Appelez-nous -
15 3281035 Screw Appelez-nous -
16 3161323 Nut Appelez-nous -
17 3161324 Washer (2) Appelez-nous -
18 3161325 Screw Appelez-nous -
19 3161326 Hinge-almd Appelez-nous -
20 3161325 Screw (2) Appelez-nous -
21 3161324 Spacer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

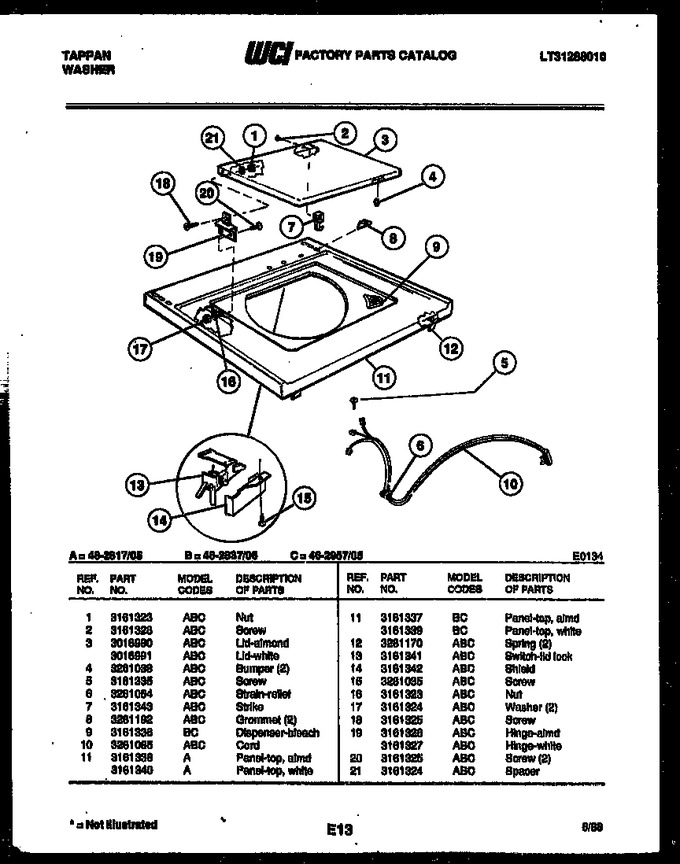

Diagram for 46-2817-23-05
