01 - Control Panel
02 - Door
03 - Inner Tub
04 - Outer Tub
05 - Pump & Motor
06 - Track & Rack Assembly
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

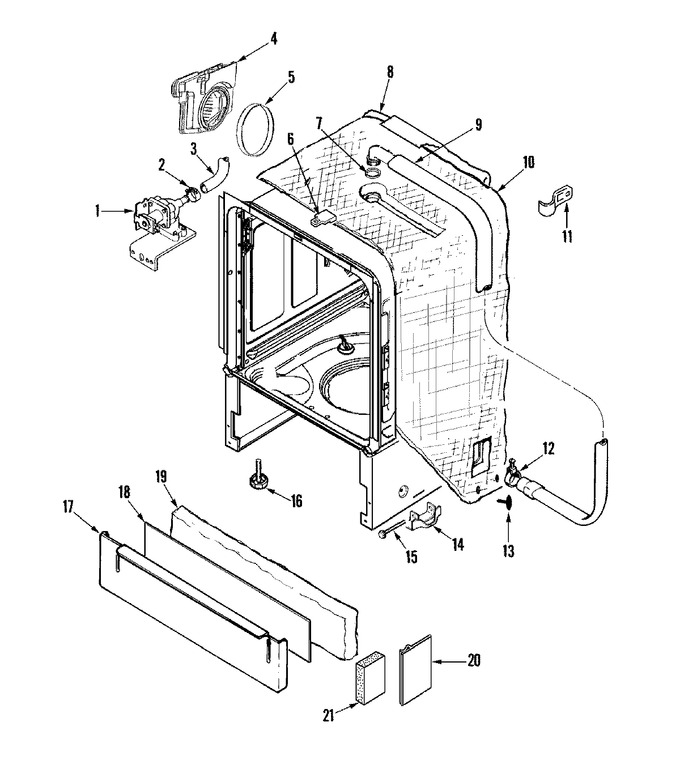

| 1 | 99002150 | Seal, Air/water Inlet | 10 |
|
$ 8.72 | ||||
| 2 | WP99001359 | Valve, Water (Replaces: 99001359) | 10 |
|
Immediately | $ 65.16 | |||
| 3 | WP596669 | Clamp, Spring (Replaces: 911856) | 10 |
|
Immediately | $ 7.56 | |||
| 4 | 99002160 | Hose, Injector | 10 |
|
- | ||||
| 5 | 99002148 | Air/water Inlet Assembly | 10 |
|
- | ||||
| 6 | WP616099 | Clamp, Hose (1 1/4``) (Replaces: 99002468) | 10 |
|
Immediately | $ 7.03 | |||
| 7 | 99001106 | Panel, Toe (wht) | 10 |
|
- | ||||
| 7 | 99001194 | Screw, Access Panel | 10 |
|
$ 6.18 | ||||
| 7 | WP6-920587 | Insulation, Toe Panel (Replaces: 99002414) | 10 |
|
$ 6.35 | ||||
| 8 | 99002141 | Striker, Latch | 10 |
|
- | ||||
| 9 | 912647 | Hose, Top Shower | 10 |
|
$ 63.93 | ||||
| 10 | WPW10143258 | Leg, Leveling (Replaces: 912579) | 10 |
|
$ 13.81 | ||||
| 11 | 99002170 | Seal, Shower Hose | 10 |
|
- | ||||
| 12 | 912651 | Bracket, Adjusting | 10 |
|
- | ||||
| 13 | 912613 | Screw, Adjusting Bracket | 10 |
|
- | ||||
| 14 | WPW10223013 | Insulation Assembly (Replaces: 99002407) | 10 |
|
$ 83.60 | ||||
| 15 | 99002415 | Fastener, Insulation (collar) | 10 |
|
- | ||||
| 15 | 911917 | Fastener, Insulation | 10 |
|
- | ||||
| 16 | Y912790 | Hook, Drain Hose | 10 |
|
- |
