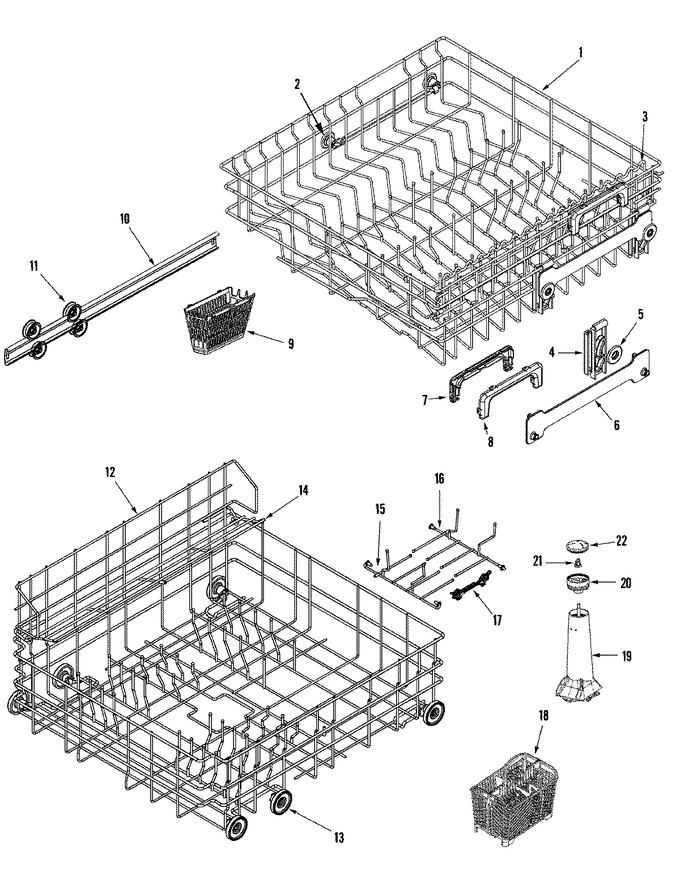

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002193		Bumper, Rack	10	Appelez-nous	-
1	99002037		Rack Assembly (upr)	10	Appelez-nous	-
2	WP903093		Wheel Assembly (upr)   (Replaces: 903093)	10		Immediately	$ 9.65
3	99002456		Shelf, Rack (upr)	10	Appelez-nous	-
4	99002073		Plate, Wheel Mounting	10			$ 5.65
5	WP99002106		Wheel, Mounting Strip   (Replaces: 99002106)	10			$ 11.63
6	WP99002072		Strip, Wheel Mounting   (Replaces: 99002072)	10			$ 77.16
7	99002107		Handle, Rack (lt)	10	Appelez-nous	-
8	99002108		Handle, Rack (rt)	10			$ 5.02
9	99002075		Basket, Auxillary	10	Appelez-nous	-
10	WP99002135		Stop, Rack (gray)   (Replaces: 99002135)	10			$ 7.92
10	Y912545		Track, Rack	10			$ 40.33
11	99002183		Wheel, Tub	10			$ 9.09
12	99002479		Rack Assembly (lwr)	10	Appelez-nous	-
13	WP99003149		Wheel Assembly (lwr)   (Replaces: 99002194)	10		Immediately	$ 11.48
14	99002139		Shelf, Rack (lwr)	10	Appelez-nous	-
15	99002137		Tine, Bowl (frt)	10			$ 26.65
16	WP99002138		Tine, Bowl (rear)   (Replaces: 99002138)	10			$ 61.64
17	WPY912709		Clip, Adjustable Peg   (Replaces: Y912709)	10		Immediately	$ 7.07
18	WP6-918873		Basket, Split & Fit (w/cover)   (Replaces: 99002028)	10		Immediately	$ 54.28
18	99002031		Cover, Basket	10	Appelez-nous	-
18	WP6-918873		Basket/half, Silverware   (Replaces: 99002029)	10		Immediately	$ 54.28
19	99001533		Tower, Spray (w/shaft-gray)	10	Appelez-nous	-
20	99001442		Diverter, Spray (gray)	10			$ 5.84
21	99001426		Nut, Discharge Housing	10			$ 5.84
22	99001443		Cap, Spray Diverter (gray)	10			$ 5.51
23	99002017		Cap, Rack (light Gray)	10			$ 5.22

    View Diagram in Separate Window       Print Part List
