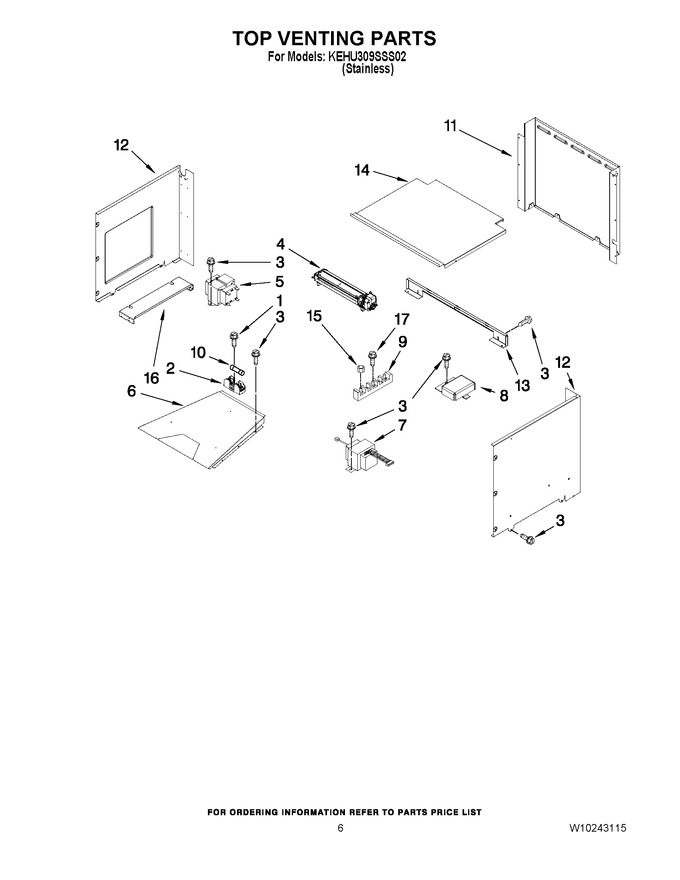

05 - Top Venting Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Microwave Door Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
2	4454949		Holder, Fuse				$ 81.63
3	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
4	WP8303972		Blower   (Replaces: 8303972)			Immediately	$ 276.88
5	WP9760588		Transformer, Lights   (Replaces: 9760588)				$ 237.07
6	8304643		Exhaust Vent				$ 51.64
7	9762885		Transformer, Control				$ 174.77
8	W11819303		Control Cover   (Replaces: 8285593)		Appelez-nous	-
9	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
10	WPW10017410		Fuse   (Replaces: W10017410)			Immediately	$ 19.05
11	8304509		Back Chassis Panel		Appelez-nous	-
12	8303539		Side, Combo (left)		Appelez-nous	-
12	8304546		Side, Combo (right)		Appelez-nous	-
13	8303537		Back, Control		Appelez-nous	-
14	8303519		Cover, Top Rear				$ 60.31
15	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 6.47
16	8304569		Support (2)		Appelez-nous	-
17	W11684512		Screw   (Replaces: 3400080)				$ 12.69
