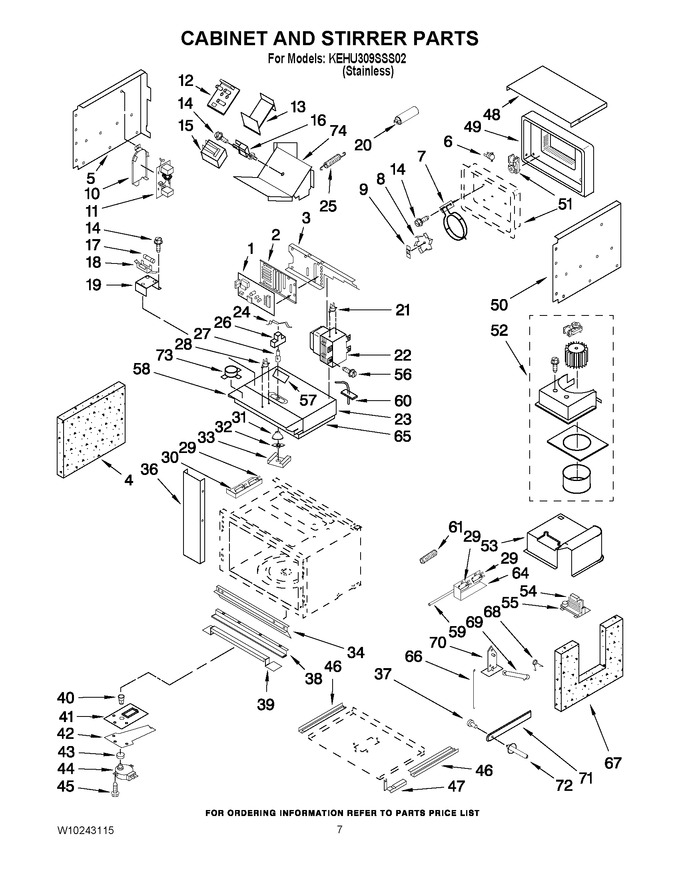

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10120227 | Control, Electric |
|
- | |||||
| 2 | 461967750752 | Support (Replaces: 8205669) |
|
$ 60.61 | |||||
| 3 | W10130892 | Plate, Air |
|
- | |||||
| 4 | W10130901 | Insulation, Side Left |
|
- | |||||
| 5 | W10120471 | Cover, Side Left |
|
- | |||||
| 6 | W11607085 | Thermostat (Replaces: W10120223) |
|
Immediately | $ 38.07 | ||||
| 7 | W10120224 | Element, Convection |
|
$ 260.93 | |||||
| 8 | W11512064 | Fan (Replaces: 4375418) |
|
Immediately | $ 146.87 | ||||
| 9 | W11724411 | Nut, Speed (Replaces: W10120233) |
|
Immediately | $ 51.91 | ||||
| 10 | W10130891 | Holder |
|
- | |||||
| 11 | WPW10120220 | Noise Filter (Replaces: W10120220) |
|
$ 167.99 | |||||
| 12 | W10120228 | Control, Electric Converter |
|
$ 187.73 | |||||
| 13 | W10130909 | Bracket, Support |
|
$ 155.48 | |||||
| 14 | 461967825321 | Screw (Replaces: W10131249) |
|
$ 10.40 | |||||
| 15 | W11238401 | Transformer (Replaces: 8205692) |
|
Immediately | $ 309.33 | ||||
| 16 | 461967842541 | Actuator (Replaces: 4375427) |
|
$ 61.97 | |||||
| 17 | WP4375321 | Fuse (Replaces: 4375321) |
|
Immediately | $ 16.45 | ||||
| 18 | W10245194 | Block, Fuse (Replaces: 4375231) |
|
$ 74.84 | |||||
| 19 | W10130897 | Bracket, Support |
|
- | |||||
| 20 | W10549523 | Filter, Noise (Replaces: 8205653) |
|
Immediately | $ 133.37 | ||||
| 21 | W10852735 | Thermostat (Replaces: 8205654) |
|
$ 207.25 | |||||
| 22 | W11346197 | Magnetron (Replaces: W10120113) |
|
Immediately | $ 244.13 | ||||
| 23 | W10130895 | Plate, Air |
|
- | |||||
| 24 | W10465869 | Spring, Lamp (Replaces: 4375319) |
|
Immediately | $ 88.94 | ||||
| 25 | W11715912 | Spring (Replaces: 8205685) |
|
Immediately | $ 6.44 | ||||
| 26 | WPW10490593 | Housing, Lamp (Replaces: 8205658) |
|
$ 66.70 | |||||
| 27 | WPW10440740 | Lamp (Replaces: 4375348) |
|
Immediately | $ 33.20 | ||||
| 28 | W10120222 | Thermostat |
|
$ 44.50 | |||||
| 29 | W10211972 | Switch (Replaces: W10131248) |
|
Immediately | $ 47.16 | ||||
| 30 | WP8205683 | Holder, Switch (Replaces: 8205683) |
|
Immediately | $ 89.47 | ||||
| 31 | 423107022541 | Reflector (Replaces: 4375320) |
|
$ 73.63 | |||||
| 32 | W11193483 | Lens, Lamp (Replaces: 4375318) |
|
Immediately | $ 89.85 | ||||
| 33 | W11440819 | Clip. Spring (Replaces: W10120231) |
|
$ 19.71 | |||||
| 34 | W10120477 | Top Vent |
|
$ 69.33 | |||||
| 35 | W10120473 | Trim, Side (right) |
|
$ 45.85 | |||||
| 36 | W10120475 | Trim, Side (left) |
|
- | |||||
| 37 | WPW10128850 | Bushing (Replaces: W10120469) |
|
Immediately | $ 121.78 | ||||
| 38 | W10130905 | Bracket, Support |
|
- | |||||
| 39 | 8205708 | Bracket, Support |
|
- | |||||
| 40 | W11126044 | Shaft, Turntable Turntable (Replaces: 8205682) |
|
$ 25.91 | |||||
| 41 | 461967008471 | Cover, Motor Turntable (Replaces: 8205681) |
|
$ 73.63 | |||||
| 42 | W10120234 | Cover |
|
$ 43.07 | |||||
| 43 | 4375252 | Gasket, Shaft |
|
$ 38.27 | |||||
| 44 | W10911403 | Motor, Turntable (Replaces: 8205655) |
|
Immediately | $ 105.78 | ||||
| 45 | 461967825321 | Screw (Replaces: 4375202) |
|
$ 10.40 | |||||
| 46 | 8205707 | Support |
|
Immediately | $ 58.96 | ||||
| 47 | W10874474 | Hinge, Door (Replaces: W10120478) |
|
Immediately | $ 54.10 | ||||
| 48 | W10130903 | Cover, Plate |
|
- | |||||
| 49 | W10130904 | Cover, Rear |
|
- | |||||
| 50 | 8205680 | Cover, Side Right |
|
$ 113.54 | |||||
| 51 | W10120221 | Convection, Motor Assmebly |
|
$ 183.17 | |||||
| 52 | 8205721 | Blower Assembly |
|
$ 187.08 | |||||
| 53 | W10130907 | Cover, Inverter |
|
$ 96.94 | |||||
| 54 | W10217711 | Inverter (Replaces: W10120229) |
|
Immediately | $ 260.67 | ||||
| 55 | W10130906 | Holder, Inverter |
|
$ 158.58 | |||||
| 56 | 461967825971 | Screw (Replaces: W10130890) |
|
- | |||||
| 57 | W10130908 | Baffle, Air |
|
- | |||||
| 58 | W10130899 | Plate, Air |
|
- | |||||
| 59 | WPW10120235 | Rod, Release (Replaces: W10120235) |
|
Immediately | $ 6.27 | ||||
| 60 | W10120225 | Sensor |
|
$ 141.24 | |||||
| 61 | W11715912 | Spring (Replaces: 8205685) |
|
Immediately | $ 6.44 | ||||
| 64 | WP8205683 | Interlock (Replaces: 8205683) |
|
Immediately | $ 89.47 | ||||
| 65 | W10130900 | Insulation |
|
- | |||||
| 66 | W11700292 | Spring (Replaces: 8205704) |
|
$ 61.97 | |||||
| 67 | W10130902 | Insulation |
|
- | |||||
| 68 | WPW10128850 | Spring (Replaces: 8205689) |
|
Immediately | $ 121.78 | ||||
| 69 | WPW10128850 | Arm (Replaces: 8205688) |
|
Immediately | $ 121.78 | ||||
| 70 | W11684510 | Support (Replaces: 8205686) |
|
Immediately | $ 13.30 | ||||
| 71 | W11214480 | Arm (Replaces: W10120236) |
|
$ 86.18 | |||||
| 72 | WPW10128850 | Pin, Damper (Replaces: W10120470) |
|
Immediately | $ 121.78 | ||||
| 73 | W10871220 | Sensor (Replaces: 8205690) |
|
$ 158.94 | |||||
| 74 | W10130898 | Duct, Magnetron |
|
- |
