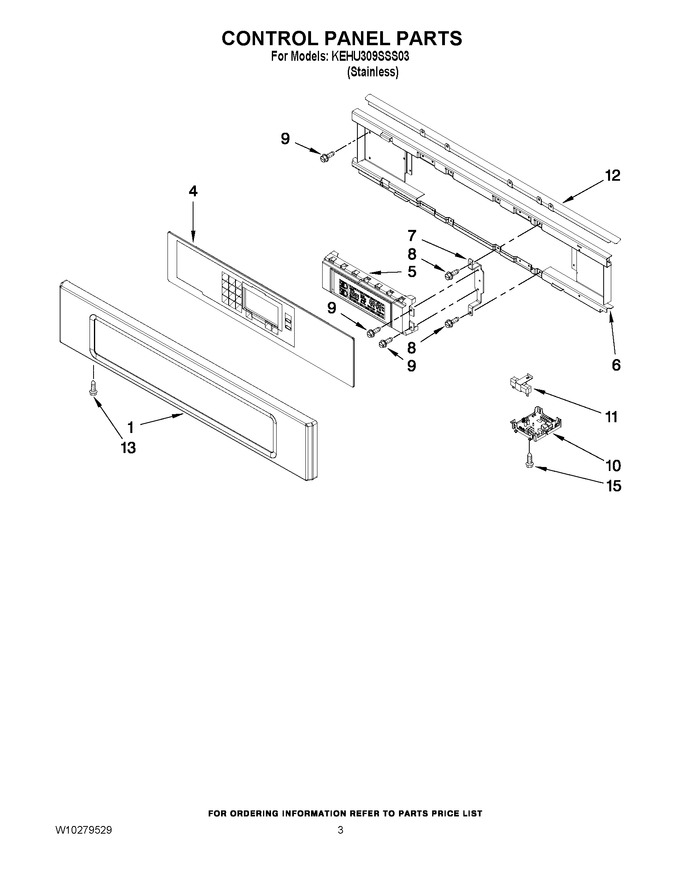

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10216219 | Panel, Control |
|
$ 119.03 | |||||
| 4 | WPW10110694 | Control Panel, Glass Touch (Replaces: W10110694) |
|
Immediately | $ 510.16 | ||||
| 5 | W10143290 | User Interface |
|
$ 723.81 | |||||
| 6 | 8303719 | Backer, Control |
|
$ 41.30 | |||||
| 7 | 8303887 | Bracket,enclosure |
|
$ 7.82 | |||||
| 8 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 9 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 10 | W10160958 | Appliance Manager |
|
$ 318.40 | |||||
| 11 | 8304441 | Resistor, Drop |
|
$ 61.98 | |||||
| 12 | W10134765 | Vapor, Stop |
|
$ 50.59 | |||||
| 13 | WP3400805 | Screw (Replaces: 3400805) |
|
$ 6.47 | |||||
| 15 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 |
