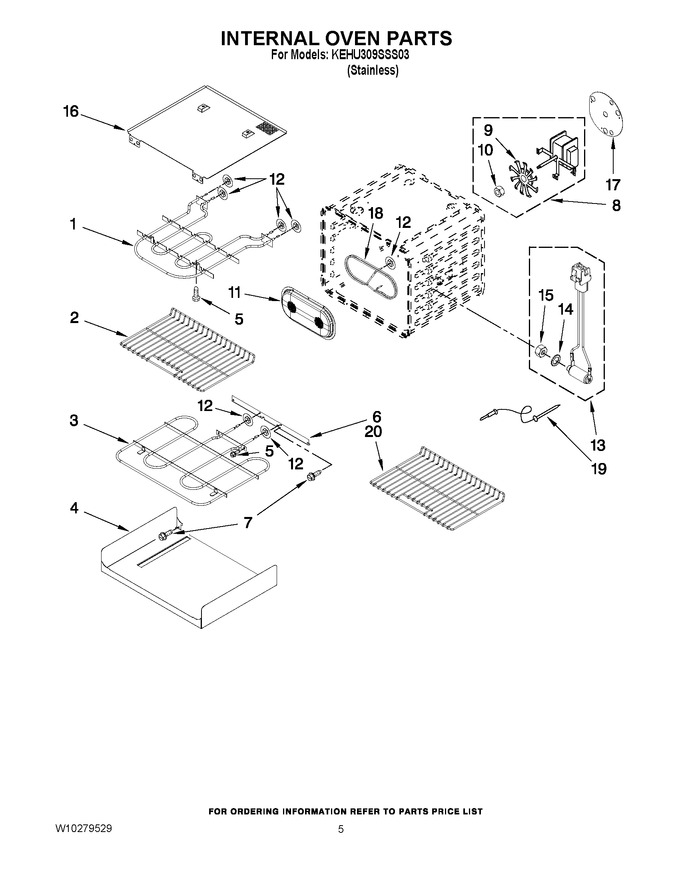

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9760774 | Element, Broil (Replaces: 9760774) |
|
Immediately | $ 206.10 | ||||
| 2 | W11550107 | Rack, Oven (Replaces: W10284950) |
|
$ 105.40 | |||||
| 3 | WPW10207398 | Element, Bake (Replaces: W10207398) |
|
Immediately | $ 119.70 | ||||
| 4 | 4455037 | Tray, Bake |
|
$ 73.11 | |||||
| 5 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 6 | 4450039 | Cover, Bake Tray |
|
$ 78.95 | |||||
| 7 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 8 | W10794022 | Motor, Convection Fan (Replaces: W10196895) |
|
Immediately | $ 193.17 | ||||
| 9 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.12 | ||||
| 10 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 18.67 | |||||
| 11 | W10141211 | Cover, Fan |
|
$ 108.09 | |||||
| 12 | WP3400968 | Nut (Replaces: 3400968) |
|
Immediately | $ 7.01 | ||||
| 13 | W10150011 | Jack, Meat Probe |
|
$ 190.68 | |||||
| 14 | WP9755547 | Lockwasher (Replaces: 9755547) |
|
$ 5.49 | |||||
| 15 | WP9755546 | Locknut (Replaces: 9755546) |
|
$ 6.26 | |||||
| 16 | 8304602 | Shield, Broil |
|
$ 44.42 | |||||
| 17 | W10339476 | Plate, Mounting Convection Fan (Replaces: W10153105) |
|
$ 69.17 | |||||
| 18 | W10116434 | Element, Convection (Replaces: W10207403) |
|
$ 293.64 | |||||
| 19 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 82.91 | ||||
| 20 | W11186364 | Rack, Sliding (Replaces: W10208155) |
|
$ 248.35 |
