02 - Console And Control Parts
03 - Top Parts
04 - Cabinet Parts
05 - Tub Detail
06 - Washer Drive System And Pump
07 - Transmission Parts
08 - Drain Hose And Miscellaneous
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

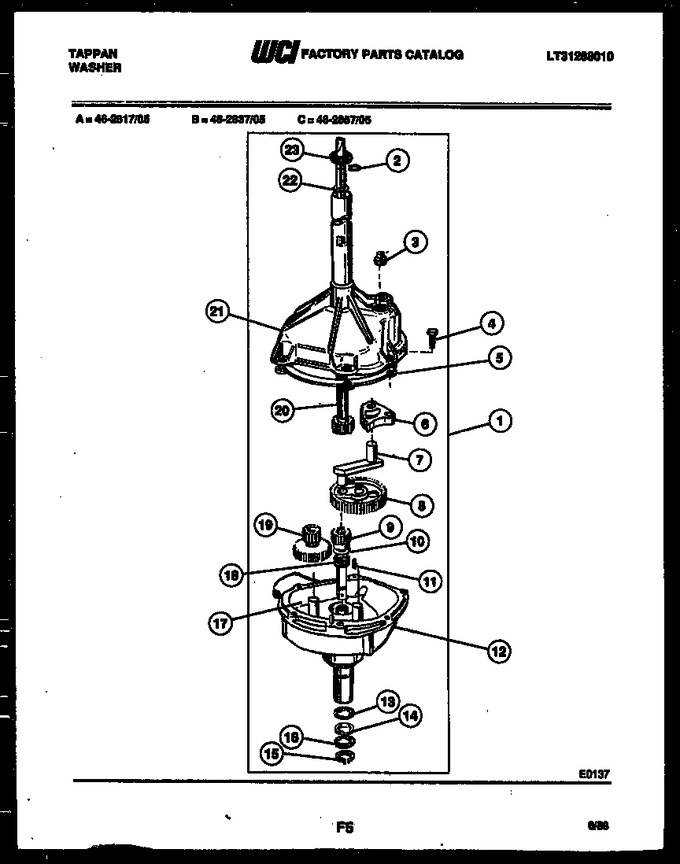

| 1 | 3161458 | Transmission Compl. |
|
- | |||||
| 2 | 3161223 | Snap Ring |
|
- | |||||
| 3 | 3161224 | Plug |
|
- | |||||
| 4 | 3161225 | Screw (6) |
|
- | |||||
| 5 | 3161308 | Gasket |
|
- | |||||
| 6 | 3161168 | Gear-sector |
|
- | |||||
| 7 | 3161169 | Connecting Rod |
|
- | |||||
| 8 | 3161170 | Gear-crank |
|
- | |||||
| 9 | 3161178 | Shaft-lower |
|
- | |||||
| 10 | 3161226 | Washer |
|
- | |||||
| 11 | 3161227 | Pin-dowell |
|
- | |||||
| 12 | 3161171 | Housing-lower |
|
- | |||||
| 13 | 3161173 | Seal-lower Lip |
|
- | |||||
| 14 | 3161226 | Washer, Spacer |
|
- | |||||
| 15 | 3161223 | Snap Ring |
|
- | |||||
| 16 | 3161229 | Washer, Thrust |
|
- | |||||
| 17 | 3161180 | Oil (1 Qt) |
|
- | |||||
| 18 | 3161174 | Spring (small) Lgs |
|
- | |||||
| 19 | 3161175 | Gear-idler |
|
- | |||||
| 20 | 3161437 | Shaft, Agitator |
|
- | |||||
| 21 | 3161436 | Housing-upper |
|
- | |||||
| 22 | 3161232 | Washer-thrust |
|
- | |||||
| 23 | 3161307 | Seal-upper Lip |
|
- |
