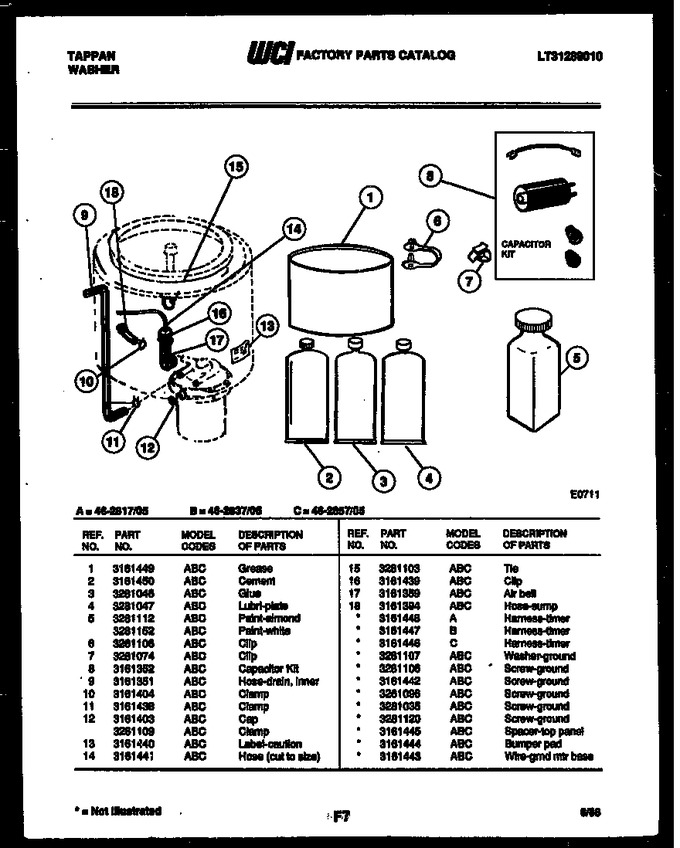

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3161449		Grease		Appelez-nous	-
2	3161450		Cement		Appelez-nous	-
3	3281046		Glue		Appelez-nous	-
4	3281047		Lubri-plate		Appelez-nous	-
5	3281112		Paint - Almond		Appelez-nous	-
5	3281152		Paint - White		Appelez-nous	-
6	3261106		Clip		Appelez-nous	-
7	3261074		Clip		Appelez-nous	-
8	3161352		Capacitor Kit		Appelez-nous	-
9	3161351		Hose, Drain, Inner		Appelez-nous	-
10	3161404		Clamp		Appelez-nous	-
11	3161438		Clamp		Appelez-nous	-
12	3161403		Cap		Appelez-nous	-
13	3161440		Label, Caution		Appelez-nous	-
14	3161441		Hose (cut To Size		Appelez-nous	-
15	3281103		Tie		Appelez-nous	-
16	3161439		Clip		Appelez-nous	-
17	3161359		Air Bell		Appelez-nous	-
18	3161394		Hose, Sump		Appelez-nous	-
*12750	3281106		Screw-ground		Appelez-nous	-
*12750	3281107		Washer Ground		Appelez-nous	-
*12750	3161446		Harness, Timer		Appelez-nous	-
*12751	3261096		Screw, Ground		Appelez-nous	-
*12751	3161445		Spacer-top Panel		Appelez-nous	-
*12751	3161444		Bumper Pad		Appelez-nous	-
*12751	3281120		Screw-ground		Appelez-nous	-
*12751	3281035		Screw, Ground		Appelez-nous	-
*12751	3161442		Screw, Ground		Appelez-nous	-
*12751	3161443		Wire, Grnd, Mtr Base		Appelez-nous	-
12A	3261109		Clamp		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
