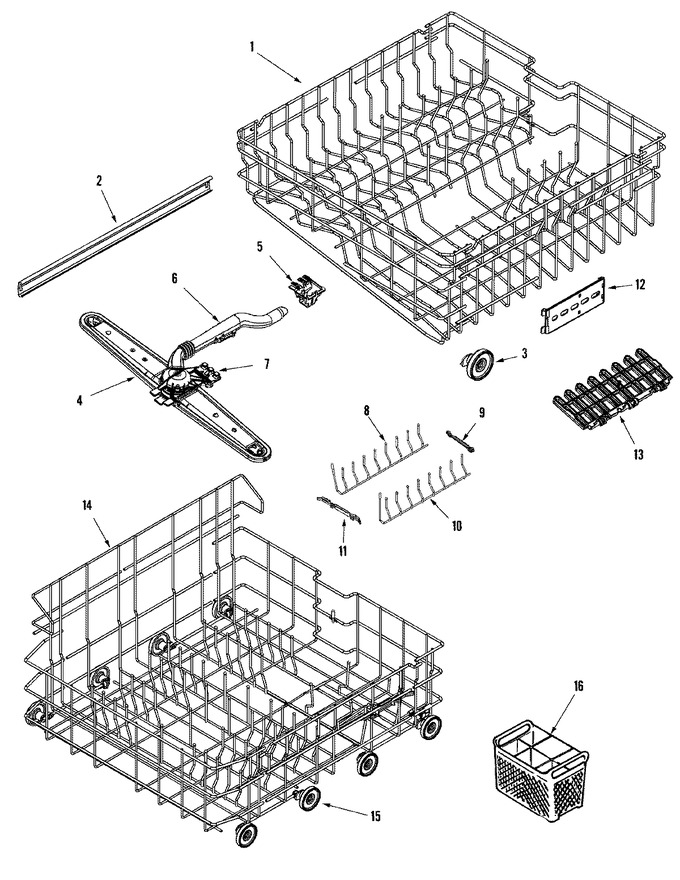

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99003310 | Rack Assembly (upr)----sub | 10 |
|
- | ||||
| 1 | 99002905 | Cap, Rack (dark Gray) | 10 |
|
$ 23.63 | ||||
| 2 | 99003281 | Stop, Rail (gray) | 10 |
|
$ 5.84 | ||||
| 2 | 99003069 | Cage, Ball Bearing | 10 |
|
$ 6.26 | ||||
| 2 | 99003068 | Bearing, Ball | 10 |
|
$ 5.83 | ||||
| 2 | 99003066 | Rail, Inner Slide | 10 |
|
- | ||||
| 3 | 99003147 | Wheel Assembly (upr) | 10 |
|
$ 9.42 | ||||
| 4 | 99002624 | Arm, Wash (upr) | 10 |
|
$ 32.72 | ||||
| 5 | 99002945 | Clip, Upr Wash Manifold (back) | 10 |
|
$ 21.24 | ||||
| 6 | 99002679 | Wash Manifold Assy (upr) | 10 |
|
- | ||||
| 7 | 99002669 | Clip, Upr Wash Manifold (frt) | 10 |
|
$ 5.84 | ||||
| 8 | 99002708 | Tine, Fold Away (lt) | 10 |
|
- | ||||
| 9 | WP99002709 | Pivot, Fold Away Tine (Replaces: 99002709) | 10 |
|
Immediately | $ 7.15 | |||
| 10 | 99002707 | Tine, Fold Away (rt) | 10 |
|
- | ||||
| 11 | WP99002710 | Latch, Fold Away Tine (Replaces: 99002710) | 10 |
|
$ 7.00 | ||||
| 12 | 99003053 | Guard, Rack (low Side) | 10 |
|
$ 9.96 | ||||
| 12 | 99003052 | Guard, Rack (high Side) | 10 |
|
$ 5.01 | ||||
| 13 | 99002671 | Shelf, Cup (upr) | 10 |
|
$ 21.17 | ||||
| 14 | 99002905 | Cap, Rack (dark Gray) | 10 |
|
$ 23.63 | ||||
| 14 | 99003311 | Rack Assembly (lwr) | 10 |
|
- | ||||
| 15 | WP99002780 | Wheel Assembly (lwr) (Replaces: 99002780) | 10 |
|
Immediately | $ 9.90 | |||
| 16 | WP6-918873 | Basket, Silverware (gray) (Replaces: 99002995) | 10 |
|
Immediately | $ 54.28 |
