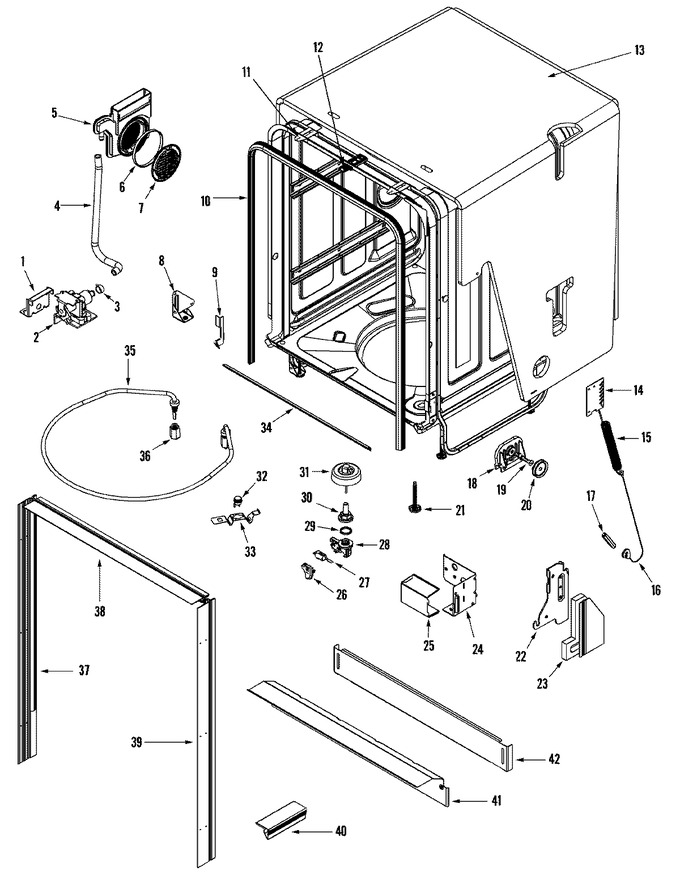

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002629		Bracket, Water Valve	10	Appelez-nous	-
1	99002601		Screw 10-32x.400 (t-20 Head)	10	Appelez-nous	-
2	W11082871		Valve, Water   (Replaces: 99002975)	10		Immediately	$ 119.48
2	WP489128		Screw-no.8x7/16 Hex Washer Head   (Replaces: 99002553)	10			$ 9.79
3	WP596669		Clamp, Spring   (Replaces: 911856)	10		Immediately	$ 7.56
4	99002852		Hose, Injector	10			$ 42.55
5	99003028		Inlet, Air/water	10			$ 66.08
6	99002150		Seal, Air/water Inlet	10			$ 8.72
7	99003029		Grill, Air/water Inlet	10	Appelez-nous	-
8	99002601		Screw 10-32x.400 (t-20 Head)	10	Appelez-nous	-
8	99002636		Bracket, Support (lt)	10	Appelez-nous	-
9	99003039		Trim, Corner Edge (lwr-rt)	10			$ 5.84
9	99003038		Trim, Corner Edge (lwr-lt)	10			$ 5.84
10	WP99003337		Seal, Door   (Replaces: 99003030)	10		Immediately	$ 138.53
11	99002648		Bracket, Cabinet Mounting	10	Appelez-nous	-
12	99002601		Screw 10-32x.400 (t-20 Head)	10	Appelez-nous	-
12	99003357		Striker, Door	27	Appelez-nous	-
12	WP99002644		Striker, Door   (Replaces: 99002644)	10			$ 7.01
13	99002640		Fastener, Insulation	10			$ 18.96
13	WPW10223013		Insulation, Tub (top/sides)   (Replaces: 99002695)	10			$ 83.60
14	99002610		Bracket, Spring Adjustment	10	Appelez-nous	-
14	99002601		Screw 10-32x.400 (t-20 Head)	10	Appelez-nous	-
15	99002598		Spring, Door	10			$ 5.83
16	WP99003446		Cable, Door   (Replaces: 99002605)	10		Immediately	$ 7.90
17	WP99003446		Link, Door Cable   (Replaces: 99002606)	10		Immediately	$ 7.90
18	99002607		Bracket, Cable	10			$ 6.98
18	99002601		Screw 10-32x.400 (t-20 Head)	10	Appelez-nous	-
19	99002609		Shoulder Bolt, Cable Bracket	10			$ 6.62
20	99002608		Roller, Cable Bracket	10			$ 9.46
21	WPW10143258		Leg, Leveling   (Replaces: 99002635)	10			$ 13.81
22	99002927		Support, Hinge (rt)	10	Appelez-nous	-
22	99002601		Screw 10-32x.400 (t-20 Head)	10	Appelez-nous	-
22	99002928		Support, Hinge (lt)	10	Appelez-nous	-
23	99002761		Backer, Hinge Seal (lt)	10	Appelez-nous	-
23	99002762		Backer, Hinge Seal (rt)	10	Appelez-nous	-
24	99002601		Screw 10-32x.400 (t-20 Head)	10	Appelez-nous	-
24	99002637		Bracket, Junction Box Support	10	Appelez-nous	-
25	99002638		Cover, Junction Box	10	Appelez-nous	-
25	WP489128		Screw   (Replaces: 912365)	10			$ 9.79
26	99003079		Cover, Switch	10	Appelez-nous	-
27	99002631		Switch, Float	10	Appelez-nous	-
28	99003031		Holder, Float Switch	10			$ 24.09
29	99003040		Seal, Standpipe	10	Appelez-nous	-
30	99003037		Standpipe, Float	10	Appelez-nous	-
31	99002630		Float	10	Appelez-nous	-
32	99002633		Thermostat, Limiting	10			$ 33.69
33	99001008		Clip, Thermostat	10	Appelez-nous	-
34	WP99003041		Trim, Tub Edge (btm)   (Replaces: 99003041)	10		Immediately	$ 89.01
35	99002973		Gasket, Heater	10			$ 6.76
35	W10283681		Heater (w/gasket)   (Replaces: 99002971)	10			$ 118.85
36	99003033		Nut, Heater	10			$ 5.84
37	99003034		Strip, Trim (lt)	10	Appelez-nous	-
37	99002692		Screw, Trim Mounting	10			$ 5.02
38	99003036		Strip, Trim (top)	10	Appelez-nous	-
39	99003035		Strip, Trim (rt)	10			$ 38.90
39	99002692		Screw, Trim Mounting	10			$ 5.02
40	99002703		Gap Seal, Toe Kick (wht)	10			$ 24.09
41	99001194		Screw, Access Panel	10			$ 6.18
41	99002860		Support, Front (w/seals)(wht)	10	Appelez-nous	-
42	99001194		Screw, Access Panel	10			$ 6.18
42	99002698		Sound Seal, Toe Panel (wht)	10			$ 18.96
42	99002766		Panel, Toe (w/damper-wht)	10	Appelez-nous	-
43	99003087		Bracket, Rear Support	10	Appelez-nous	-
