Diagram for 01 - Door And Panel Parts
01 - Door And Panel Parts

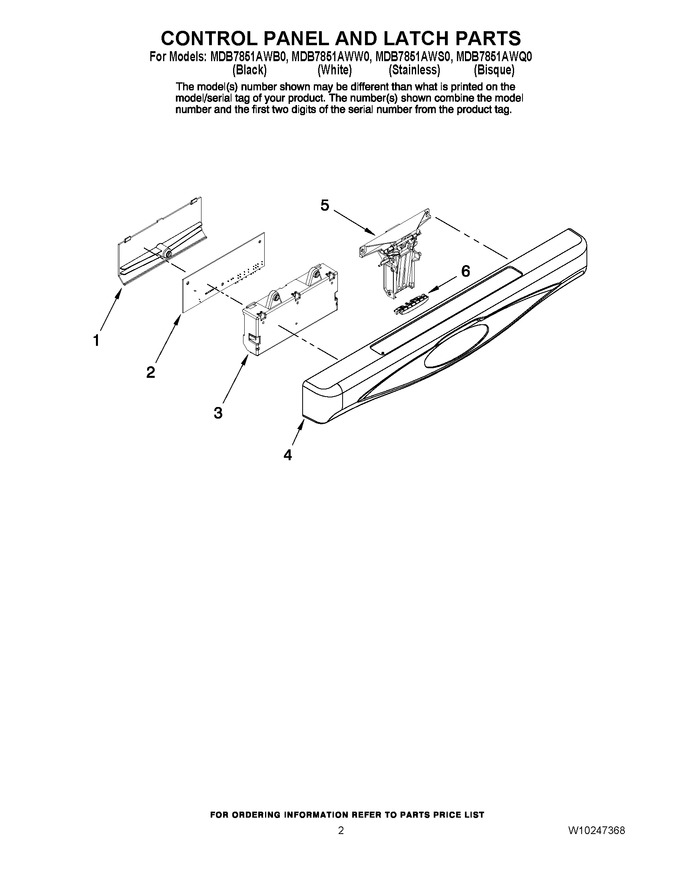

Diagram for 02 - Control Panel And Latch Parts
02 - Control Panel And Latch Parts

Diagram for 03 - Inner Door Parts
03 - Inner Door Parts

Diagram for 04 - Lower Washarm Parts
04 - Lower Washarm Parts

Diagram for 05 - Heater Parts
05 - Heater Parts

Diagram for 06 - Fill And Overfill Parts
06 - Fill And Overfill Parts

Diagram for 07 - Tub And Frame Parts
07 - Tub And Frame Parts

Diagram for 08 - Pump And Motor Parts
08 - Pump And Motor Parts

Diagram for 09 - Upper And Lower Rack Parts
09 - Upper And Lower Rack Parts

Diagram for 10 - Upper Wash And Rinse Parts
10 - Upper Wash And Rinse Parts

Diagram for 11 - Optional Parts (not Included)
11 - Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 99002575 Housing, Board (top) Special Order $ 20.11

2 W10218838 Board, Control Special Order $ 189.28

3 99002576 Housing, Board Special Order $ 25.18

4 W10197307 Panel, Control (black) Special Order $ 187.59

4 W10197308 Panel, Control (white) Special Order $ 186.37

4 W10197309 Panel, Control (bisque) Appelez-nous -
5 WPW10275768 Latch, Assembly   (Replaces: 99003347) In-Stock Immediately $ 79.15

6 99002577 Handle, Latch (black) Appelez-nous -
6 99002578 Handle, Latch (bisque) Appelez-nous -
6 99002579 Handle, Latch (white) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for MDB7851AWB0
