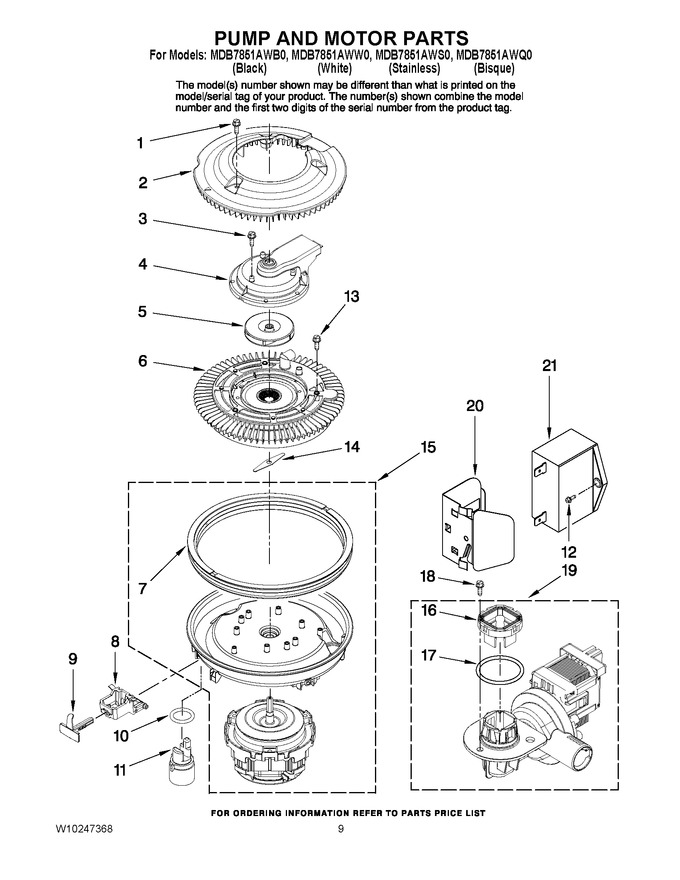

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002666		Screw		Appelez-nous	-
2	W10166790		Guard, Filter		Appelez-nous	-
3	99002668		Screw		Appelez-nous	-
4	W10212444		Discharge, Housing Assembly				$ 43.79
5	WP99002659		Wash Impeller Assembly   (Replaces: 99002659)			Immediately	$ 50.27
6	WPW10192799		Filter/flowplate, Assembly   (Replaces: W10192800)			Immediately	$ 218.27
7	99003055		Gasket, Motor Mount		Appelez-nous	-
8	99003056		Lever, Motor Mount				$ 7.58
9	99003057		Plunger, Motor Mount				$ 5.58
10	99002651		O-ring, Turbidity Sensor				$ 19.03
11	WPW10120019		Sensor, Turbidity   (Replaces: W10120019)				$ 178.03
12	99002601		Screw		Appelez-nous	-
13	99002664		Screw				$ 5.65
14	6-919353		Chopper				$ 33.04
15	6-919962		Wash Motor Assy.		Appelez-nous	-
16	6-919119		Flapper, Drain Pump Inlet				$ 7.89
17	6-917029		O-ring, Drain Pump		Appelez-nous	-
18	99002740		Screw				$ 6.24
19	W10119816		Drain Pump Assy.		Appelez-nous	-
20	W10167912		Sheild, Capacitor		Appelez-nous	-
21	99002665		Capacitor				$ 31.01
