SELECT A DIAGRAM
New Model Search:

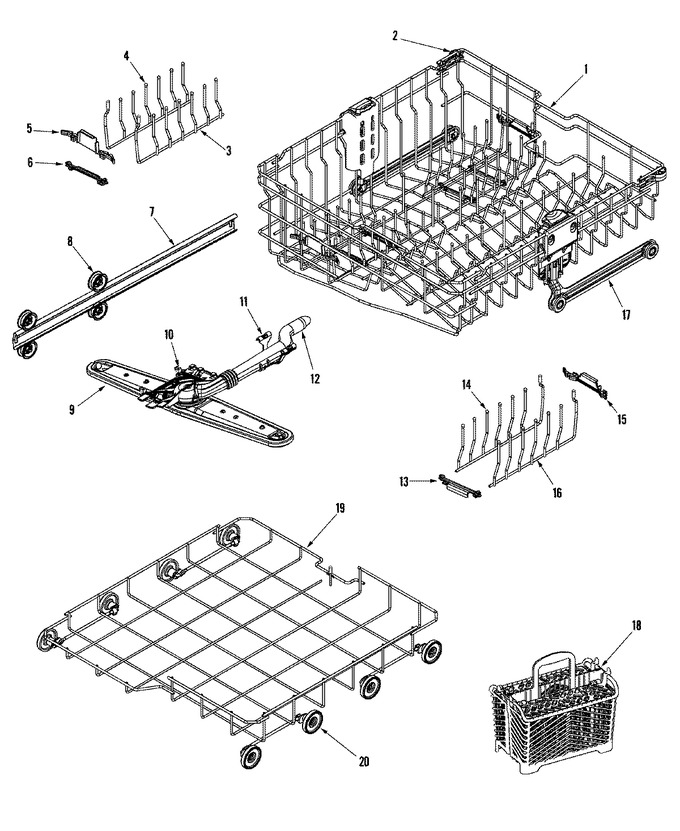

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99002905 | Cap, Rack (dark Gray) | 10 |
|
$ 23.63 | ||||
| 1 | 99003207 | Rack Assembly (middle) | 23 |
|
- | ||||
| 1 | 99002727 | Rack Assembly (middle) | 10 |
|
- | ||||
| 2 | 99002853 | Snugger, Rack | 10 |
|
$ 6.02 | ||||
| 3 | Y00000000 | See Note For Right Tine Order Front Tine Assy(part 99003639) | 10 |
|
- | ||||
| 4 | Y00000000 | See Note For Left Tine Order Front Tine Assy(part 99003639) | 10 |
|
- | ||||
| 5 | 99002737 | Latch, Fold Away Tine (frt) | 10 |
|
$ 5.70 | ||||
| 6 | WP99002735 | Pivot, Fold Away Tine (Replaces: 99002735) | 10 |
|
$ 7.14 | ||||
| 7 | 99002621 | Track, Rack | 10 |
|
$ 56.82 | ||||
| 7 | WPW10261227 | Stop, Rack (gray) (Replaces: 99002623) | 10 |
|
Immediately | $ 6.93 | |||
| 8 | WPY912798 | Washer, Tub Wheel (Replaces: Y912798) | 10 |
|
$ 6.90 | ||||
| 8 | WP99002947 | Shaft, Tub Wheel (Replaces: 99002343) | 10 |
|
Immediately | $ 10.58 | |||
| 8 | WP99002947 | Wheel, Tub (Replaces: 99002622) | 10 |
|
Immediately | $ 10.58 | |||
| 9 | 99002739 | Arm, Wash (middle) | 10 |
|
$ 59.87 | ||||
| 9 | 99002740 | Screw, Truss Head (10-18x.75) | 10 |
|
$ 6.24 | ||||
| 10 | 99002732 | Clip, Middle Manifold (frt) | 10 |
|
- | ||||
| 11 | 99002758 | Clip, Middle Manifold (back) | 10 |
|
- | ||||
| 12 | 99002793 | Wash Manifold Assy (middle) | 10 |
|
- | ||||
| 13 | WP99002735 | Pivot, Fold Away Tine (Replaces: 99002735) | 10 |
|
$ 7.14 | ||||
| 14 | Y00000000 | See Note For Left Tine Order Rear Tine Assembly (part 99003640) | 10 |
|
- | ||||
| 15 | 99002736 | Latch, Fold Away Tine (rear) | 10 |
|
$ 7.82 | ||||
| 16 | Y00000000 | See Note For Right Tine Order Rear Tine Assembly (part 99003640) | 10 |
|
- | ||||
| 17 | 99002783 | Adjuster, Rack (rt) | 10 |
|
- | ||||
| 17 | 99003009 | Rack Adjuster Assembly (rt) | 23 |
|
- | ||||
| 17 | 99003008 | Rack Adjuster Assembly (lt) | 23 |
|
- | ||||
| 17 | 99003020 | Stabilizer, Rack Adjuster | 23 |
|
$ 37.77 | ||||
| 17 | 99003010 | Screw (t15) 8-18 X .500 | 23 |
|
- | ||||
| 17 | 99003178 | Lever, Adjuster (blue) | 23 |
|
$ 55.08 | ||||
| 17 | 99002782 | Adjuster, Rack (lt) | 10 |
|
- | ||||
| 17 | 99003011 | Cover, Rack Adjuster (gray) | 23 |
|
$ 5.75 | ||||
| 18 | 6-918651 | Split/fit Basket (Replaces: 99002729) | 10 |
|
$ 67.59 | ||||
| 18 | 99002731 | Cover, Split/fit Basket | 10 |
|
- | ||||
| 18 | 6-918651 | Basket, Split/fit (Replaces: 99002730) | 10 |
|
$ 67.59 | ||||
| 19 | 99002962 | Pan Rack Assembly | 17 |
|
- | ||||
| 19 | 99002728 | Pan Rack Assembly | 10 |
|
- | ||||
| 19 | 99002905 | Cap, Rack (dark Gray) | 10 |
|
$ 23.63 | ||||
| 20 | WP99002780 | Wheel Assembly (lwr) (Replaces: 99002780) | 10 |
|
Immediately | $ 9.90 |
