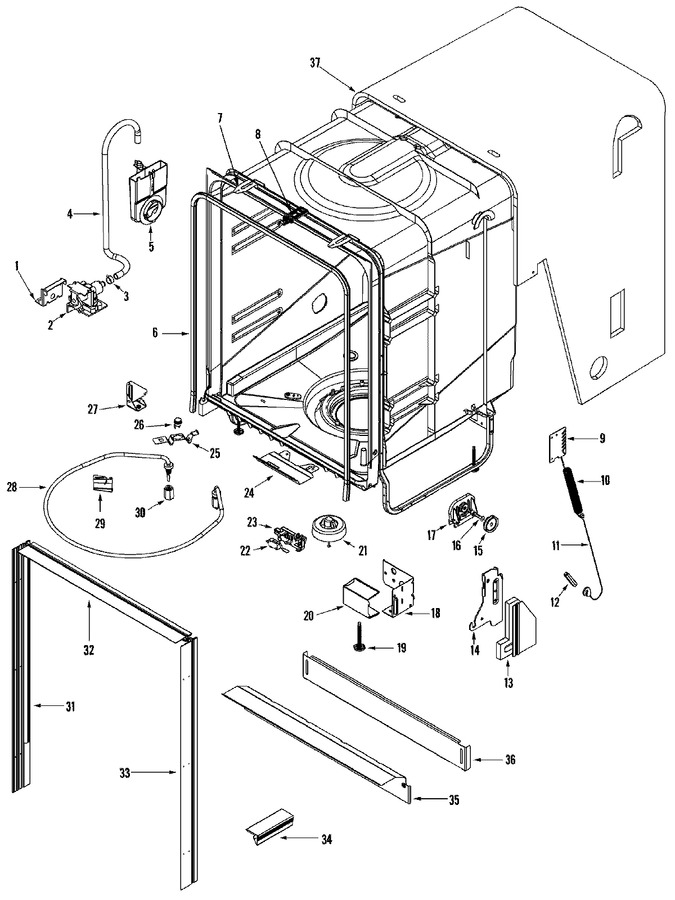

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002601		Screw 10-32x.400 (t-20 Head)	10	Appelez-nous	-
1	99002629		Bracket, Water Valve	10	Appelez-nous	-
2	99002628		Valve, Water	10			$ 88.37
2	W11082871		Valve, Water   (Replaces: 99002975)	19		Immediately	$ 119.48
2	WP489128		Screw-no.8x7/16 Hex Washer Head   (Replaces: 99002553)	10			$ 9.79
3	WP596669		Clamp, Spring   (Replaces: 911856)	10		Immediately	$ 7.56
4	99002852		Hose, Injector	10			$ 42.55
5	99002867		Foam Insert, Air/water Inlet	10	Appelez-nous	-
5	99002954		Felt, Air/water Inlet	10	Appelez-nous	-
5	99002955		Foam Block, Air/water Inlet	10	Appelez-nous	-
5	99002645		Inlet, Air/water	10			$ 59.03
5	99002646		Seal, Air/water Inlet	10			$ 8.00
5	99002647		Cover, Air/water Inlet	10	Appelez-nous	-
6	99002588		Seal, Door	10			$ 81.57
7	99002648		Bracket, Cabinet Mounting	10	Appelez-nous	-
8	99002601		Screw 10-32x.400 (t-20 Head)	10	Appelez-nous	-
8	99003357		Striker, Door	27	Appelez-nous	-
8	WP99002644		Striker, Door   (Replaces: 99002644)	10			$ 7.01
9	99002601		Screw 10-32x.400 (t-20 Head)	10	Appelez-nous	-
9	99002610		Bracket, Spring Adjustment	10	Appelez-nous	-
10	99002598		Spring, Door	10			$ 5.83
11	WP99003446		Cable, Door   (Replaces: 99002605)	10		Immediately	$ 7.90
12	WP99003446		Link, Door Cable   (Replaces: 99002606)	10		Immediately	$ 7.90
13	99002762		Backer, Hinge Seal (rt)	10	Appelez-nous	-
13	99002761		Backer, Hinge Seal (lt)	10	Appelez-nous	-
14	99002764		Support, Hinge (lt)	10	Appelez-nous	-
14	99002601		Screw 10-32x.400 (t-20 Head)	10	Appelez-nous	-
14	99002763		Support, Hinge (rt)	10	Appelez-nous	-
15	99002608		Roller, Cable Bracket	10			$ 9.46
16	99002609		Shoulder Bolt, Cable Bracket	10			$ 6.62
17	99002601		Screw 10-32x.400 (t-20 Head)	10	Appelez-nous	-
17	99002607		Bracket, Cable	10			$ 6.98
18	99002637		Bracket, Junction Box Support	10	Appelez-nous	-
18	99002601		Screw 10-32x.400 (t-20 Head)	10	Appelez-nous	-
19	WPW10143258		Leg, Leveling   (Replaces: 99002635)	10			$ 13.81
20	99002638		Cover, Junction Box	10	Appelez-nous	-
20	WP489128		Screw   (Replaces: 912365)	10			$ 9.79
21	99002630		Float	10	Appelez-nous	-
22	99002631		Switch, Float	10	Appelez-nous	-
23	99002632		Plate, Switch Mounting	10	Appelez-nous	-
23	WP3390631		Screw, Steel Hex Hd Plasite   (Replaces: 99002749)	10			$ 7.04
24	99002858		Clip, Tinnerman	12	Appelez-nous	-
24	99002856		Shield, Tub	12	Appelez-nous	-
24	WP3390631		Screw, Steel Hex Hd Plasite   (Replaces: 99002749)	10			$ 7.04
24	99002754		Clip, Wire	10	Appelez-nous	-
24	99002855		Clamp, Harness	12	Appelez-nous	-
24	99002641		Shield, Tub	10	Appelez-nous	-
25	99002634		Clip, Thermostat	10			$ 5.51
26	99002633		Thermostat, Limiting	10			$ 33.69
27	99002601		Screw 10-32x.400 (t-20 Head)	10	Appelez-nous	-
27	99002636		Bracket, Support (lt)	10	Appelez-nous	-
28	99002973		Gasket, Heater	18			$ 6.76
28	W10283681		Heater   (Replaces: 99002625)	10			$ 118.85
28	W10283681		Heater (w/gasket)   (Replaces: 99002971)	18			$ 118.85
29	WP6-917262		Bracket, Heater Support   (Replaces: 99002626)	10			$ 150.11
30	99002627		Nut, Heater	10			$ 6.44
30	WP6-920168		Nut, Heater   (Replaces: 99002972)	18			$ 2.66
30	Y913079		O-ring, Heater	10			$ 5.83
31	99002692		Screw, Trim Mounting	10			$ 5.02
31	99002690		Strip, Trim/mounting (lt)	10	Appelez-nous	-
32	99002723		Strip, Trim/mounting (top)	10			$ 39.75
33	99002691		Strip, Trim/mounting (rt)	10	Appelez-nous	-
33	99002692		Screw, Trim Mounting	10			$ 5.02
34	99002701		Gap Seal, Toe Kick (blk)	10			$ 34.28
35	WP6-912366		Screw   (Replaces: 912366)	10			$ 7.29
35	99002859		Support, Front (w/seals)(blk)	10	Appelez-nous	-
36	99002694		Sound Seal, Toe Panel (blk)	10			$ 20.14
36	WP6-912366		Screw   (Replaces: 912366)	10			$ 7.29
36	99002765		Panel, Toe (w/damper-blk)	10	Appelez-nous	-
37	WPW10223013		Insulation, Tub   (Replaces: 99002849)	10			$ 83.60
37	99002640		Fastener, Insulation	10			$ 18.96
