SELECT A DIAGRAM

01 - Control Panel


02 - Door


03 - Inner Tub


04 - Outer Tub


05 - Pump & Motor


06 - Track & Rack Assembly


07 - Wiring Information

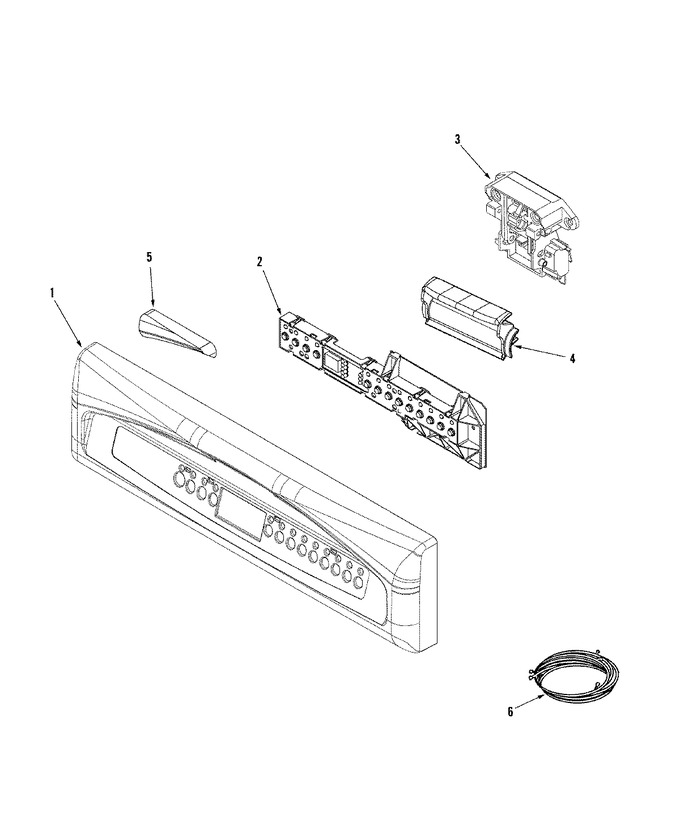

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002307		Panel, Control (bsq)	10	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
2	99002366		Pcb Assembly (12-button)	24	Appelez-nous	-
2	99002260		Pcb Assembly (12-button)	10	Appelez-nous	-
2	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
3	99002292		Latch Assembly	10			$ 98.64
3	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
4	99002287		Handle, Latch (bsq)	10	Appelez-nous	-
5	99002291		Insert, Vent	10	Appelez-nous	-
6	99002485		Harness, Wire	27			$ 109.84
6	99002266		Harness, Wire	10	Appelez-nous	-
7	99002377		Manual, Use & Care (trilingl)	24	Appelez-nous	-
7	99002252		Manual, Use & Care (tri)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
