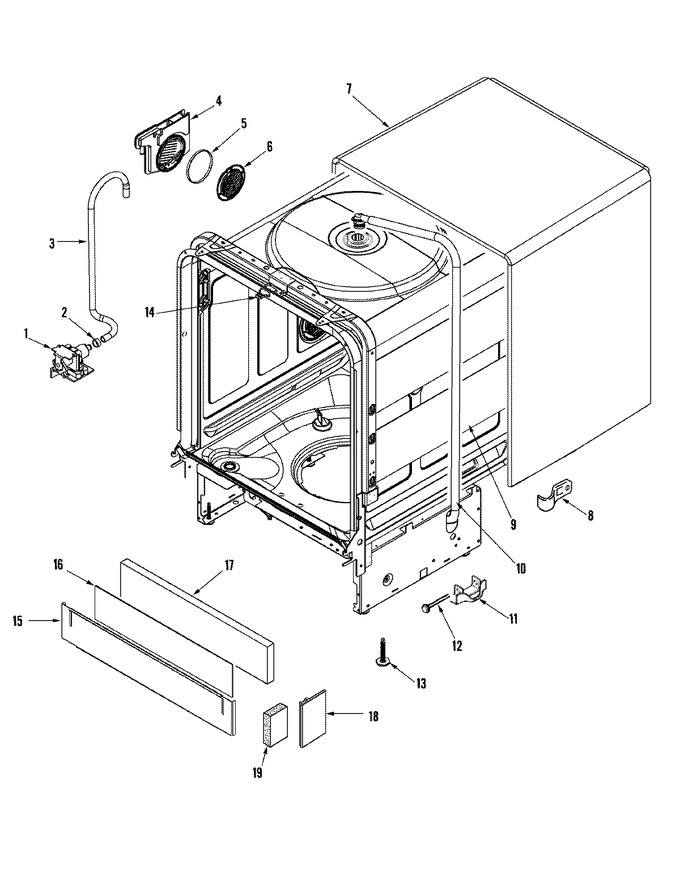

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489128 | Screw (Replaces: 912365) | 10 |
|
$ 9.79 | ||||
| 1 | WP99001359 | Valve, Water (Replaces: 99001359) | 10 |
|
Immediately | $ 65.16 | |||
| 2 | WP596669 | Clamp, Spring (Replaces: 911856) | 10 |
|
Immediately | $ 7.56 | |||
| 3 | 99002160 | Hose, Injector | 10 |
|
- | ||||
| 4 | 99002148 | Air/water Inlet Assembly | 10 |
|
- | ||||
| 5 | 99002150 | Seal, Air/water Inlet | 10 |
|
$ 8.72 | ||||
| 6 | 99002149 | Grill, Air/water Inlet | 10 |
|
- | ||||
| 7 | WPW10223013 | Insulation Assembly (Replaces: 99002407) | 10 |
|
$ 83.60 | ||||
| 7 | 911917 | Fastener, Insulation | 10 |
|
- | ||||
| 8 | Y912790 | Hook, Drain Hose | 10 |
|
- | ||||
| 9 | 99002933 | Damper (4`` X 12``) | 10 |
|
- | ||||
| 9 | 99002934 | Damper (6``x 18``) | 10 |
|
- | ||||
| 10 | 912647 | Hose, Top Shower | 10 |
|
$ 63.93 | ||||
| 10 | WP616099 | Clamp, Hose (1 1/4``) (Replaces: 904030) | 10 |
|
Immediately | $ 7.03 | |||
| 10 | 99002170 | Seal, Shower Hose | 10 |
|
- | ||||
| 11 | 912651 | Bracket, Adjusting | 10 |
|
- | ||||
| 12 | 912613 | Screw, Adjusting Bracket | 10 |
|
- | ||||
| 13 | WPW10143258 | Leg, Leveling (Replaces: 912579) | 10 |
|
$ 13.81 | ||||
| 14 | 99002141 | Striker, Latch | 10 |
|
- | ||||
| 15 | 99002111 | Panel, Toe (bsq) | 10 |
|
- | ||||
| 15 | 99002114 | Screw (bsq) | 10 |
|
- | ||||
| 16 | 99001204 | Damper, Toe Panel | 10 |
|
- | ||||
| 17 | WP6-920587 | Insulation, Toe Panel (Replaces: Y912742) | 10 |
|
$ 6.35 | ||||
| 18 | 99002241 | Barrier (bsq) | 10 |
|
- | ||||
| 19 | 99001395 | Insulation, Barrier | 10 |
|
- |
