01 - Access Drawer
02 - Body
03 - Control Panel
04 - Control System

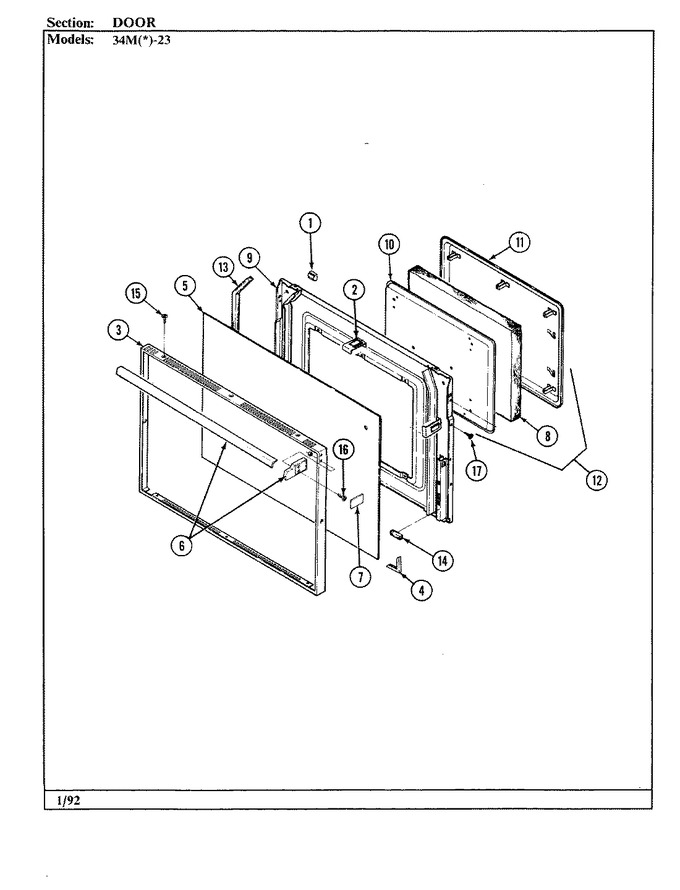

05 - Door
06 - Internal Controls
07 - Oven
08 - Top Assy./control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8003P009-60 | Bumper, Door (square) | 01 |
|
- | ||||
| 2 | 7112P034-60 | Clip, Door | 01 |
|
- | ||||
| 3 | 7706P243-60 | Frame, Door | 01 |
|
- | ||||
| 4 | 8010P045-60 | Spacer, Glass Corner | 01 |
|
- | ||||
| 5 | 8270P090-60 | Tape, Foil (3`` Wide) | 01 |
|
- | ||||
| 5 | 7902P275-60 | Glass, Door | 01 |
|
- | ||||
| 6 | 7701P047-60 | Handle, Door | 01 |
|
- | ||||
| 7 | 7728P068-60 | Insert, Handle (chrome) | 01 |
|
- | ||||
| 8 | 7002P118-60 | Insulation, Door | 01 |
|
- | ||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 9 | 8114P274-60 | Label (cleaning Inst.) | 01 |
|
- | ||||
| 9 | WP7103P114-60 | Nut, Snap (Replaces: 7103P114-60) | 01 |
|
$ 9.89 | ||||
| 9 | 2402W173-19 | Lining | 01 |
|
- | ||||
| 10 | 2410F012-51 | Pad, Inner Ov Dr | 01 |
|
- | ||||
| 11 | 2410W040-19 | Pad Door | 01 |
|
- | ||||
| 12 | 2410A028-19 | Pad Door Assy | 01 |
|
- | ||||
| 12 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 13 | 7208P002-60 | Seal | 01 |
|
- | ||||
| 14 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 15 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 01 |
|
Immediately | $ 6.85 | |||
| 16 | 7101P305-60 | Screw | 01 |
|
- |
