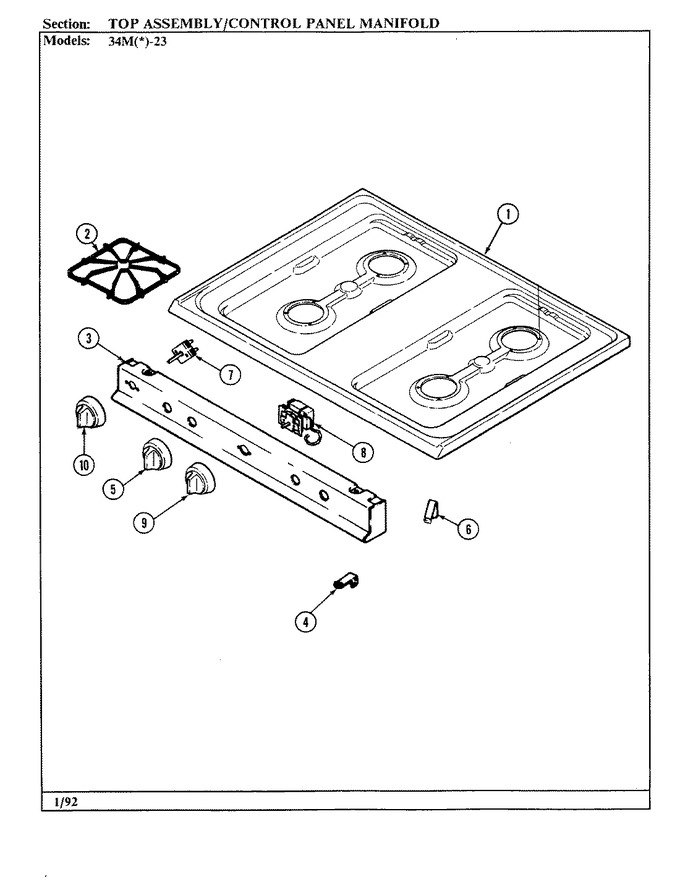

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2001F080-81 | Top, Main | 01 |
|
- | ||||
| 2 | 2003F029-00 | Grate, Black | 01 |
|
- | ||||
| 3 | 7712P156-60 | Control Panel | 01 |
|
- | ||||
| 4 | 3801F047-34 | Bracket,control Panel (r) | 01 |
|
- | ||||
| 4 | 3801F049-34 | Bracket,control Panel (l) | 01 |
|
- | ||||
| 5 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P027-60) | 01 |
|
$ 25.06 | ||||
| 6 | 7112P087-60 | Clip, Top Locking | 01 |
|
- | ||||
| 6 | 3807F431-45 | Support, Main Top | 01 |
|
- | ||||
| 6 | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 4.29 | ||||
| 7 | 7403P092-60 | Switch, Selector | 01 |
|
- | ||||
| 8 | 7404P064-60 | Thermostat | 01 |
|
- | ||||
| 8 | 7101P279-60 | Screw W/washer | 01 |
|
- | ||||
| 9 | 7731P020-60 | Knob, Thermostat | 01 |
|
- | ||||
| 10 | 7711P381-60 | Knob, Selector | 01 |
|
- |
